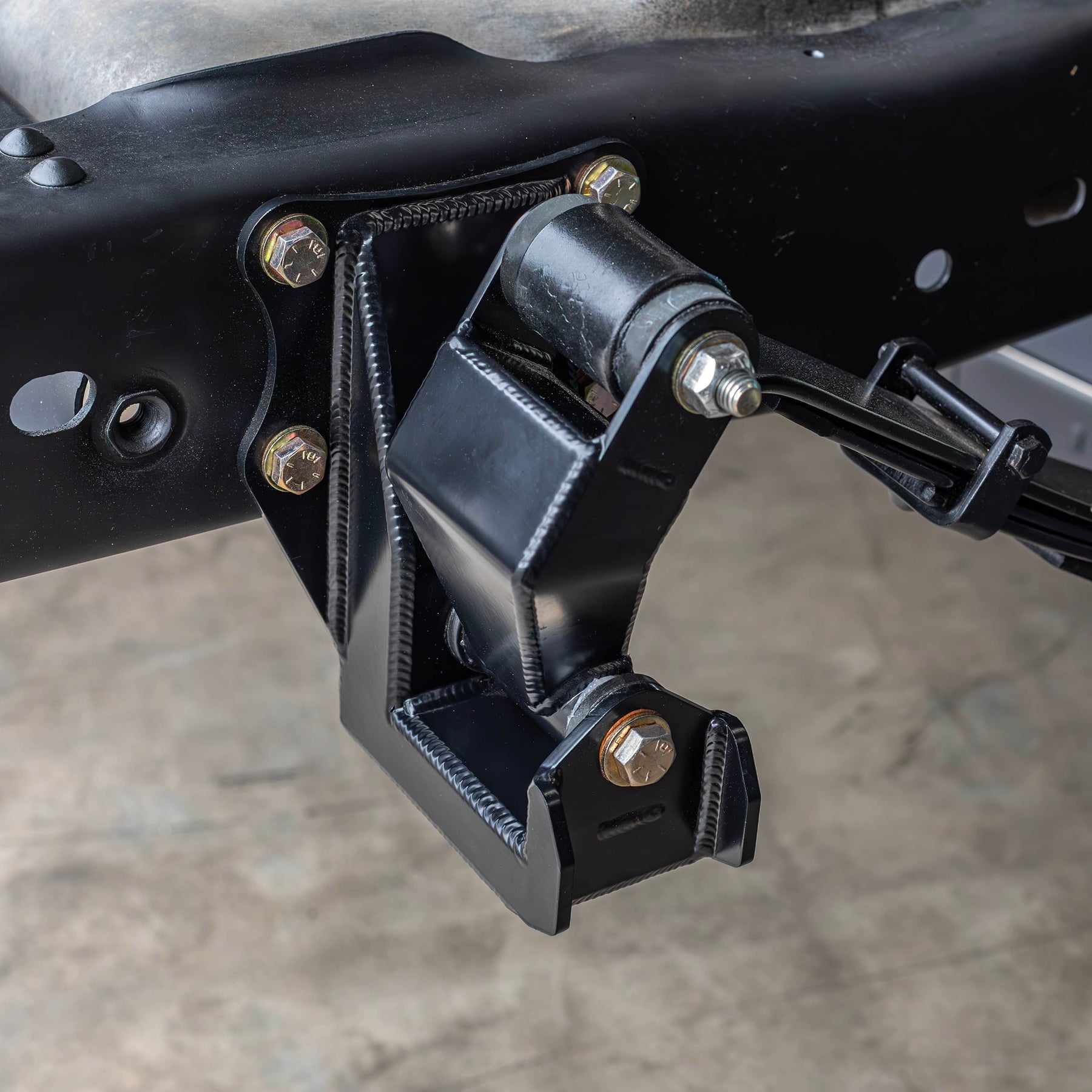

80-96 Bronco Q80 and Shackle Combo

Designed to handle abuse seen while off-roading and still provides amazing ride on-road. This combo comes standard in most of the high performance rear suspension kits offered. This pairing will give you the basics you will need to install these springs properly and get the most out of them.

Spring option guideline:

2-3" of lift:  choose Q80-2 (pairs great with 3.5 - 4" front lift) on vehicles that are similar to factory weight

4-5" of lift choose Q80 (pairs great with 5-6" lift front or if vehicle is heavier than normal and has 4" lift up from (example: camping gear, heavy back bumper etc)

To see this combo utilized in a Long Travel application see the  Complete Rear Suspension Kit.

______________________________________________________________________________________________

NOTE:

• (1) Leaf can be removed for lower ride height if needed (explained in provided instruction sheet.)
• We do not install the Q80 pack without re-indexing pinon angle and removing the factory wedge block. Welding experience is required to attach spring perches.

Features:

• Urethane bushings instead of vulcanized rubber
• 9 leaf design for very progressive ride
• Military front wrap
• Teflon anti friction pads
• Diamond cut leaf ends
• capable of 17" of wheel travel
• available in 2 ride height variations
