Name: 80-96 Bronco / 4WD F150 High Clearance Radius Arms
Brand: Desolate Motorsports
SKU: DM-11K057-01
Price: 1368.99 USD
Availability: InStock

80-96 Bronco / 4WD F150 High Clearance Radius Arms

$1,368.99

Shipping calculated at checkout.

Radius Arm Cross Member

Add Cross Member

No Cross Member

Radius Arm Style

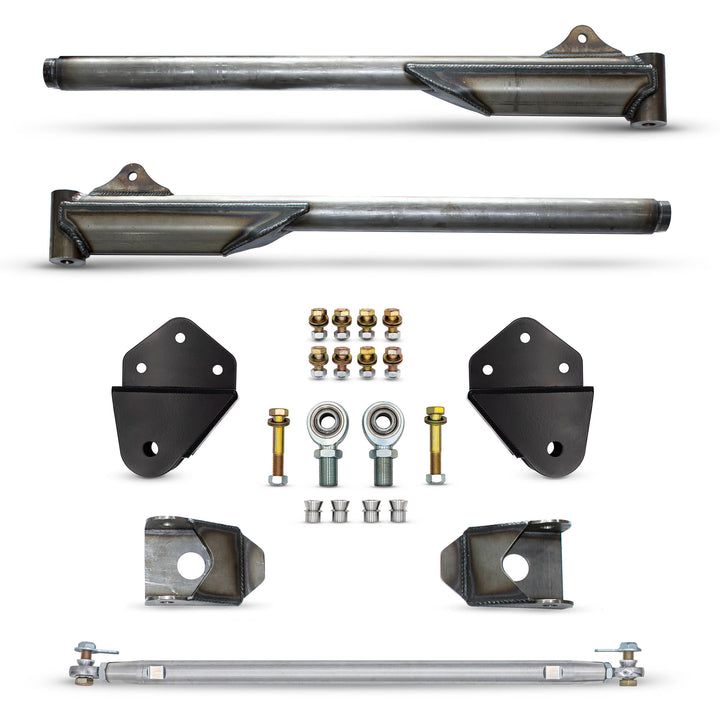

Coil Over Radius Arm

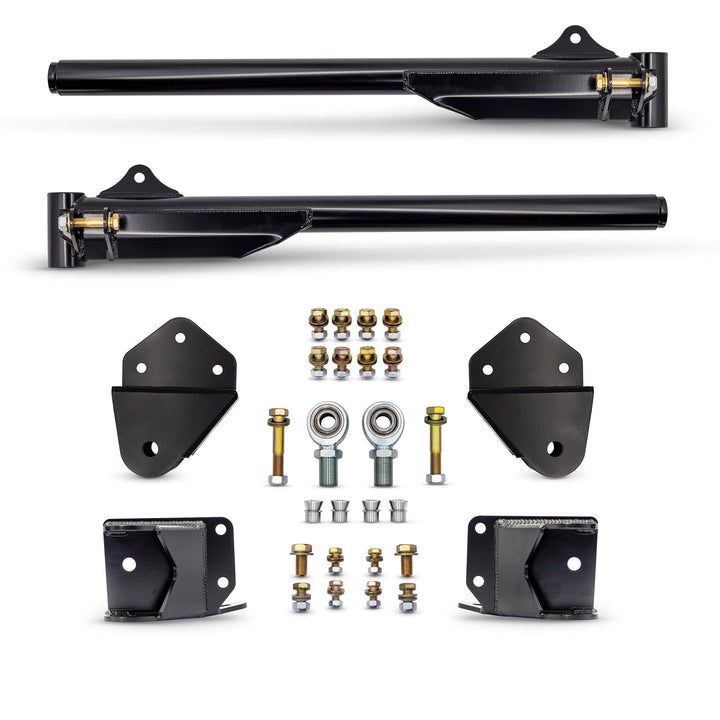

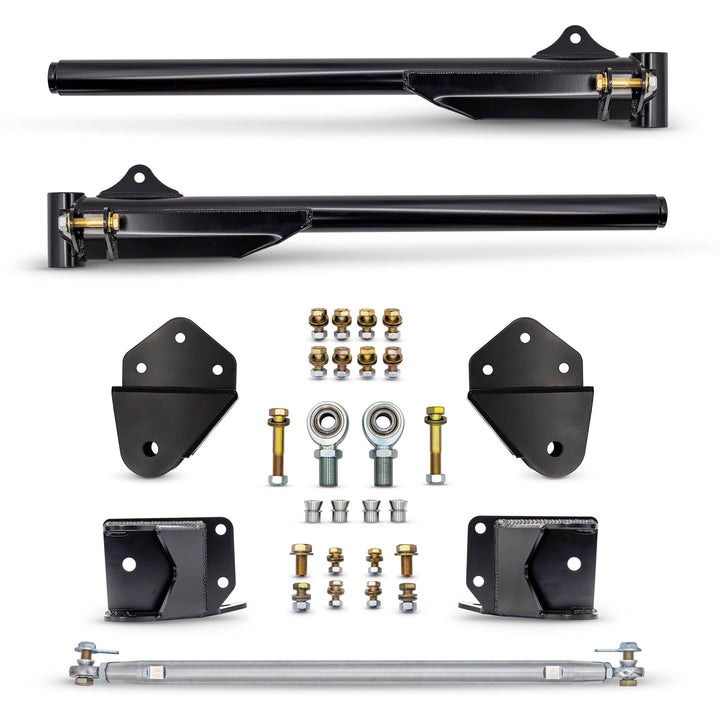

Coil Spring Radius Arm

In stock, ready to ship!
.

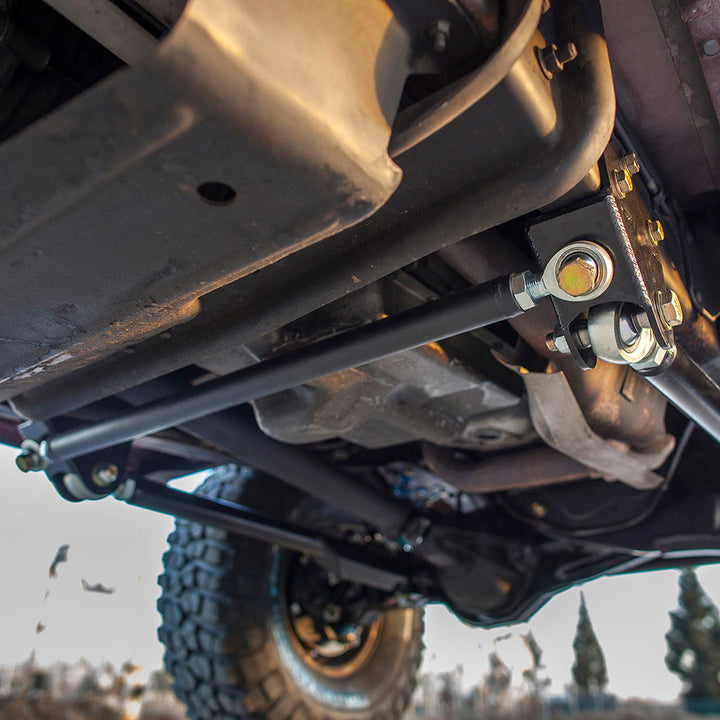

The High Clearance Radius Arms are the strongest option on the market for you truck. Utilizing a large 2” x .250" wall DOM main tube and a formed 3/16" steel bottom truss, making these far superior to any other available option on todays market. The proprietary weld on radius arm mounting bracket locates on the back side of your beams and utilizes a large 3/4" bolt and lock nut for mounting. This unique beam attachment point eliminates the top and bottom threaded inserts in your beams that are known failure points. The frame pivot brackets are constructed of laser cut .250” steel and give you the ability to run our optional radius arm crossmember.

Note: Order any front suspension kit and radius arm mounts will be welded on your beams at no extra charge. Coil over arms ship with our weld on beam bracket and coil spring arms will ship with our powder coated bolt-on beam brackets. Coil over long travel version sold RAW.

Features:

Plate and Tube Design
Weld on Front Mount
Bolt on .250” Steel Pivot Brackets
High Quality 1.25” Heims w/ stainless misalignment spacers
