DM-11K057-01

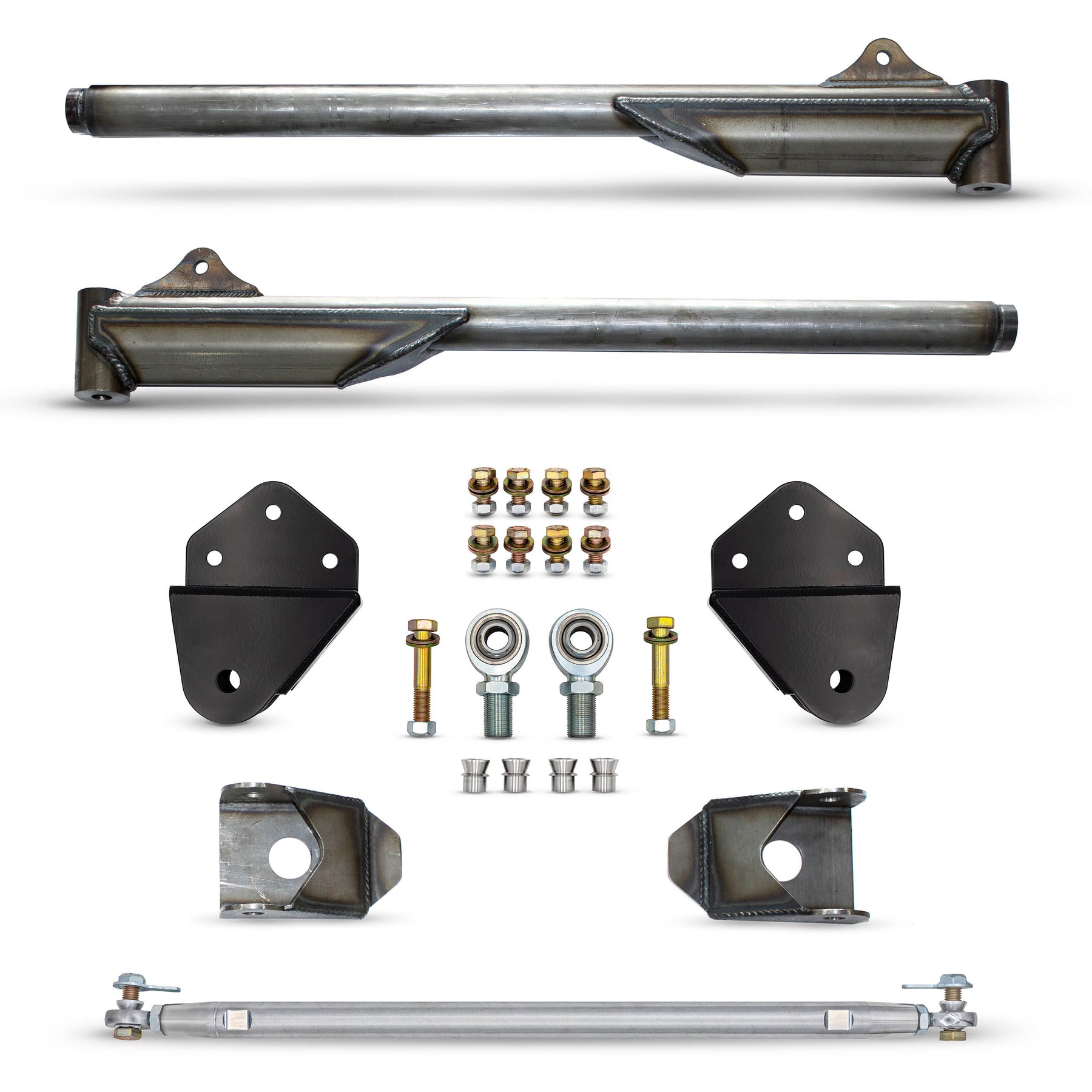

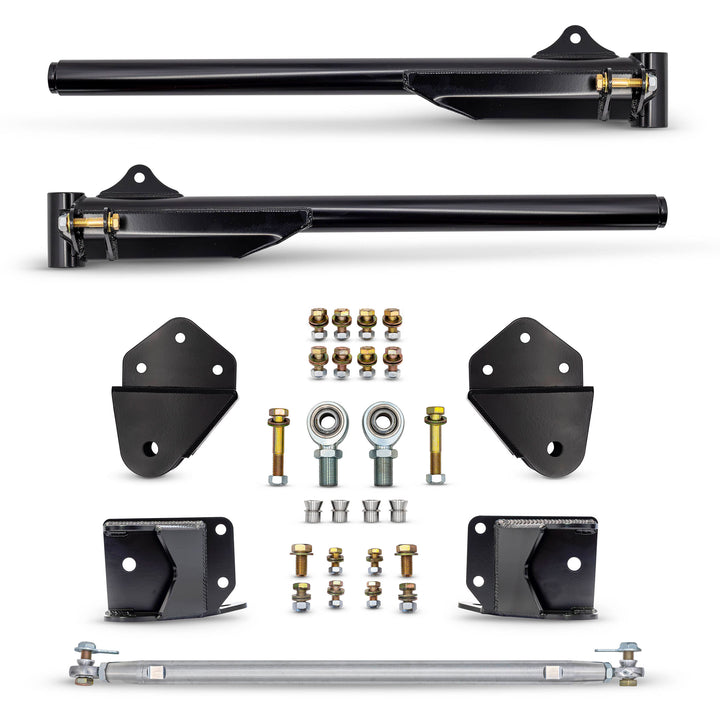

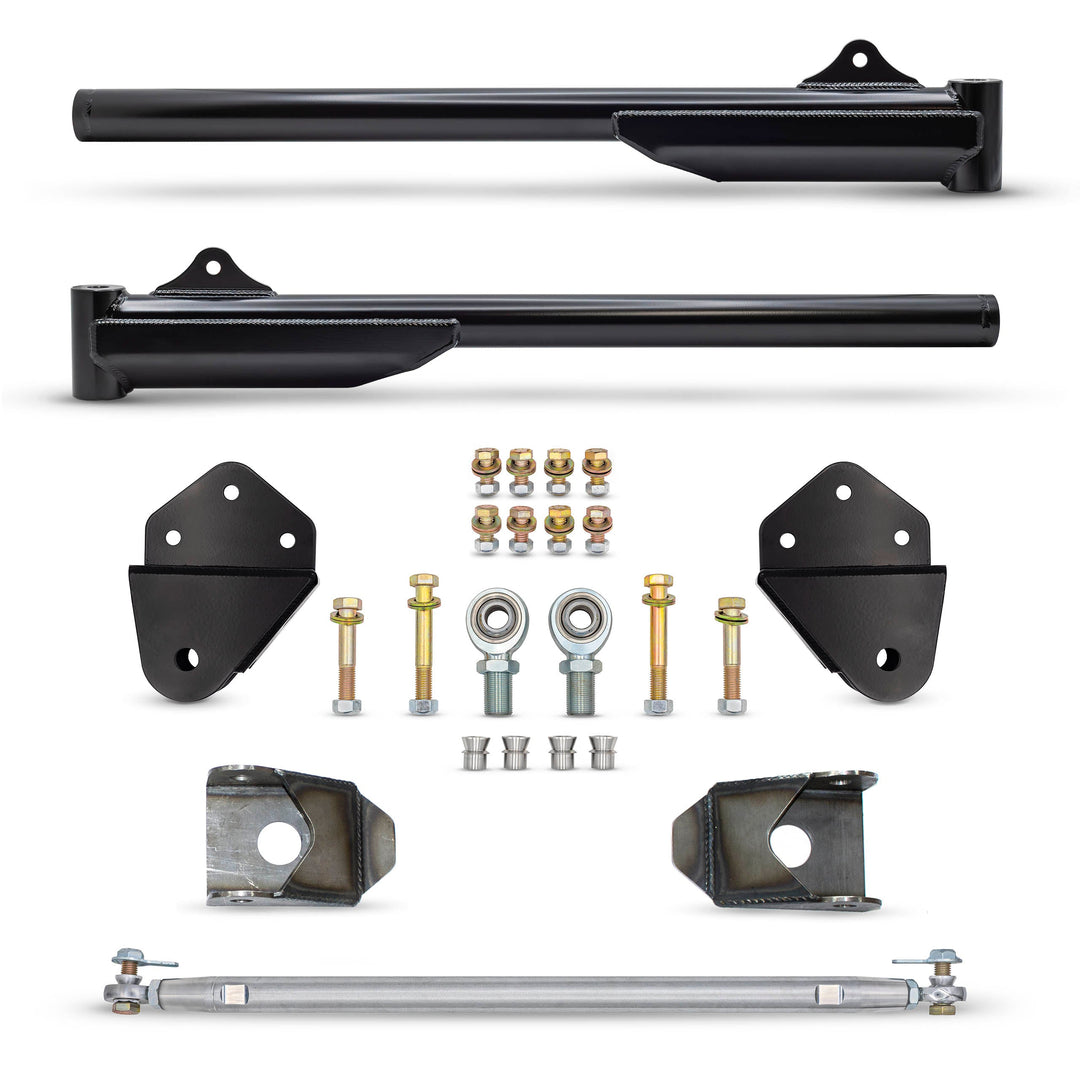

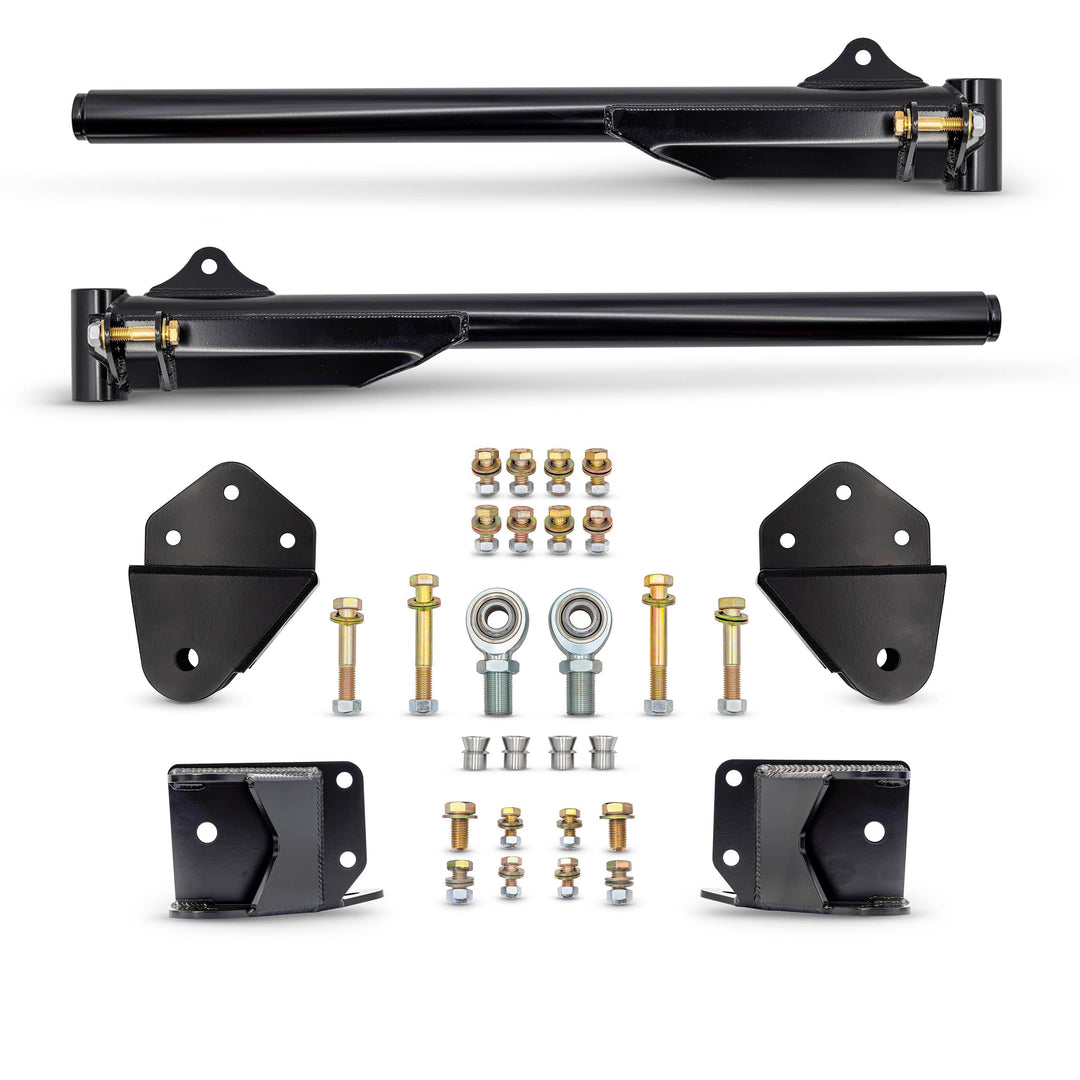

The High Clearance Radius Arms are the strongest option on the market for you truck. Utilizing a large 2” x .250" wall DOM main tube and a formed 3/16" steel bottom truss, making these far superior to any other available option on todays market. The proprietary weld on radius arm mounting bracket locates on the back side of your beams and utilizes a large 3/4" bolt and lock nut for mounting. This unique beam attachment point eliminates the top and bottom threaded inserts in your beams that are known failure points. The frame pivot brackets are constructed of laser cut .250” steel and give you the ability to run our optional radius arm crossmember.
Note: Order any front suspension kit and radius arm mounts will be welded on your beams at no extra charge. Coil over arms ship with our weld on beam bracket and coil spring arms will ship with our powder coated bolt-on beam brackets. Coil over long travel version sold RAW.
Features:
We accept product returns within 30-days after you have received your order. All returns are subject up to a 20% restocking fee after approval.
Just installed complete led upgrade....looks great....they actually dim out which surprised me...good products from obs solutions my go too for tasteful upgrades
Of all the upgrades I’ve made this one is my favorite. The braking feel is night and day difference, it’s worth every penny. I recommend installing the super duty P/S pump at the same time you do the vacuum pump delete kit. It makes it slot easier to install the P/S pump with the fan shroud removed. The delete kit doesn’t include two 18 gauge wires or splice connectors which you will need to wire the new vacuum pumps. For the price I think the kid should include these.
The light went in no problem and look great at night, the only down side was I ordered the wrong one, which is on me because I didn't realize I had the metal dome light. Only recommend to double check the kit you order. Sorry for the dirty dash, its a work in progress.
Originally planned to piece together a set of links for my 99 Dana 60 axle under my bullnose ford. When adding in the time wasted trying to source different parts and hardware as well as designing them this was far cheaper and very high quality. I ended up welding the tabs to the frame. I figured if I ever decided to run no sway bar they wouldn’t hurt being there. Even when pushed to the edge of the frame there is a little miss alignment from mount to the sway bar but I doubt it would ever hurt anything. I added some 1/2 inch aluminum round stock spacers between the links at the top mount to push the links inward toward the center of the frame and that seems to have helped the alignment of the links and made the mounting position more parallel. Overall super happy with these. If sky’s has made it for the front end of my truck it’s under there.
The steering linkage upgrade for my Dana 60 axle is top shelf. The rep at OBS was excellent to deal with, Replies to my questions were very quick and helpful. The package arrived in a timely manner and in excellent condition. I highly recommend OBS for your custom parts and obs parts.
