302 / 351 Saginaw Pump Conversion Kit

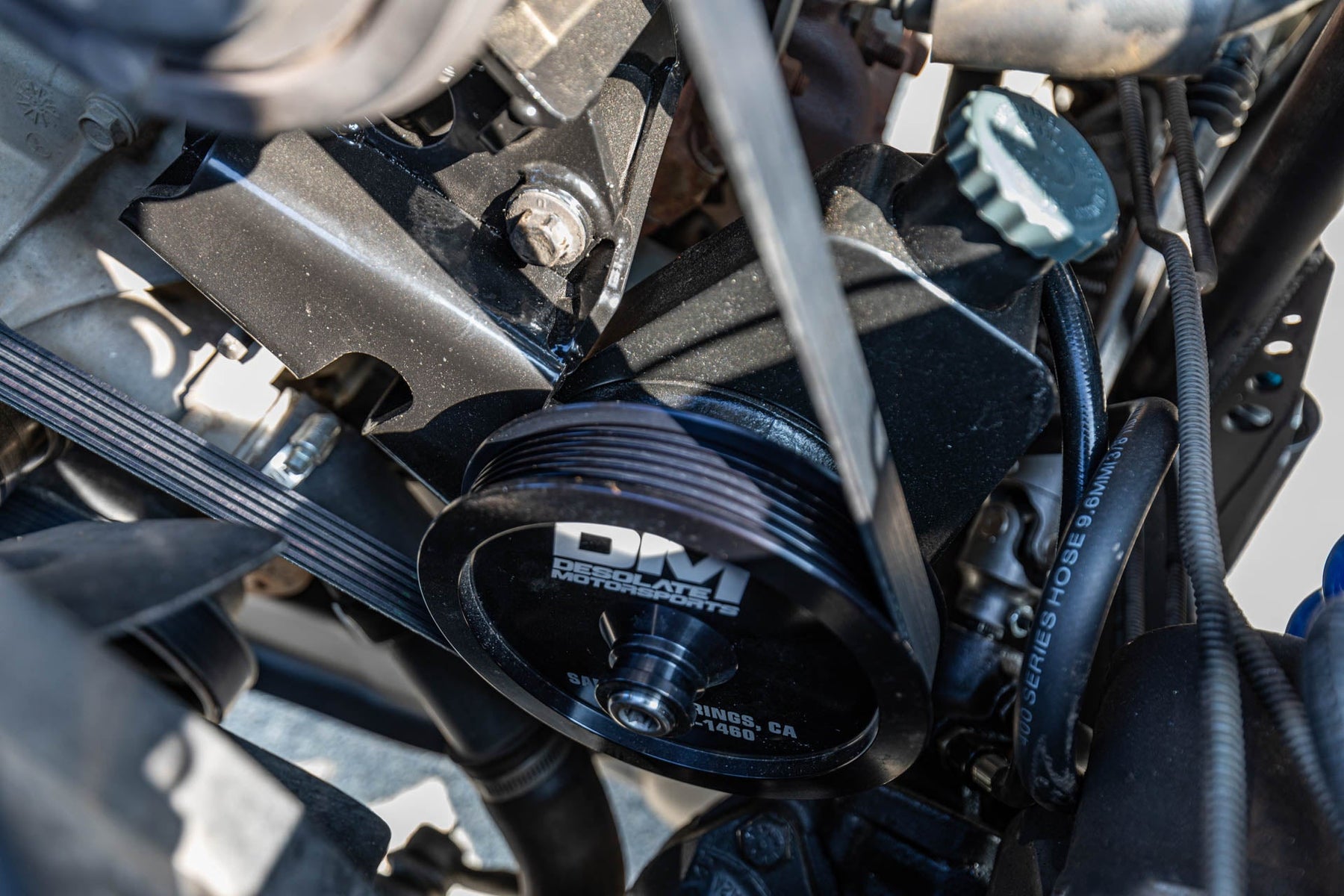

This completely new CAD designed, zinc coated laser cut bracket is engineered to accept one of the best power steering pumps ever made! This is a complete replacement unit for your 302/351 that even accepts your factory air conditioning compressor and uses all your original mounting hardware. The Saginaw power steering pump is an all metal construction and boasts much higher operating pressures than your stock system. This is gonna give you the positive feel you've been looking for in your steering! We've included all necessary fittings, hoses, serpentine belt and a billet aluminum pulley to complete this easy installation.  We recommend using POWER STEERING FLUID WITH THIS PUMP DO NOT USE ATF!

THIS SYSTEM IS ONLY A DIRECT FIT FOR 1989-1996 302/351 BRONCO/F150/F250 SERPENTINE SYSTEMS. IT CAN BE USED ON 87/88 302/351 SERPENTINE SYSTEMS BUT THE FACTORY 3/8 x16 BOLTS HOLDING THE AC COMPRESSOR ON WILL HAVE TO BE SWAPPED OUT FOR THE 89 TO 96 8MM X 1.25 MERTRIC BOLTS. THESE BOLTS CAN BE EASILY SOURCED USED FROM MANY DIFFERNT FORD VEHICLES OR HERE IS A FORD PART NUMBER THAT YOU CAN ORDER:

FORD W704750-S437

Note: We now also offer an upgraded version of this kit using PSC Motorsports Components.

Belt Sizes:

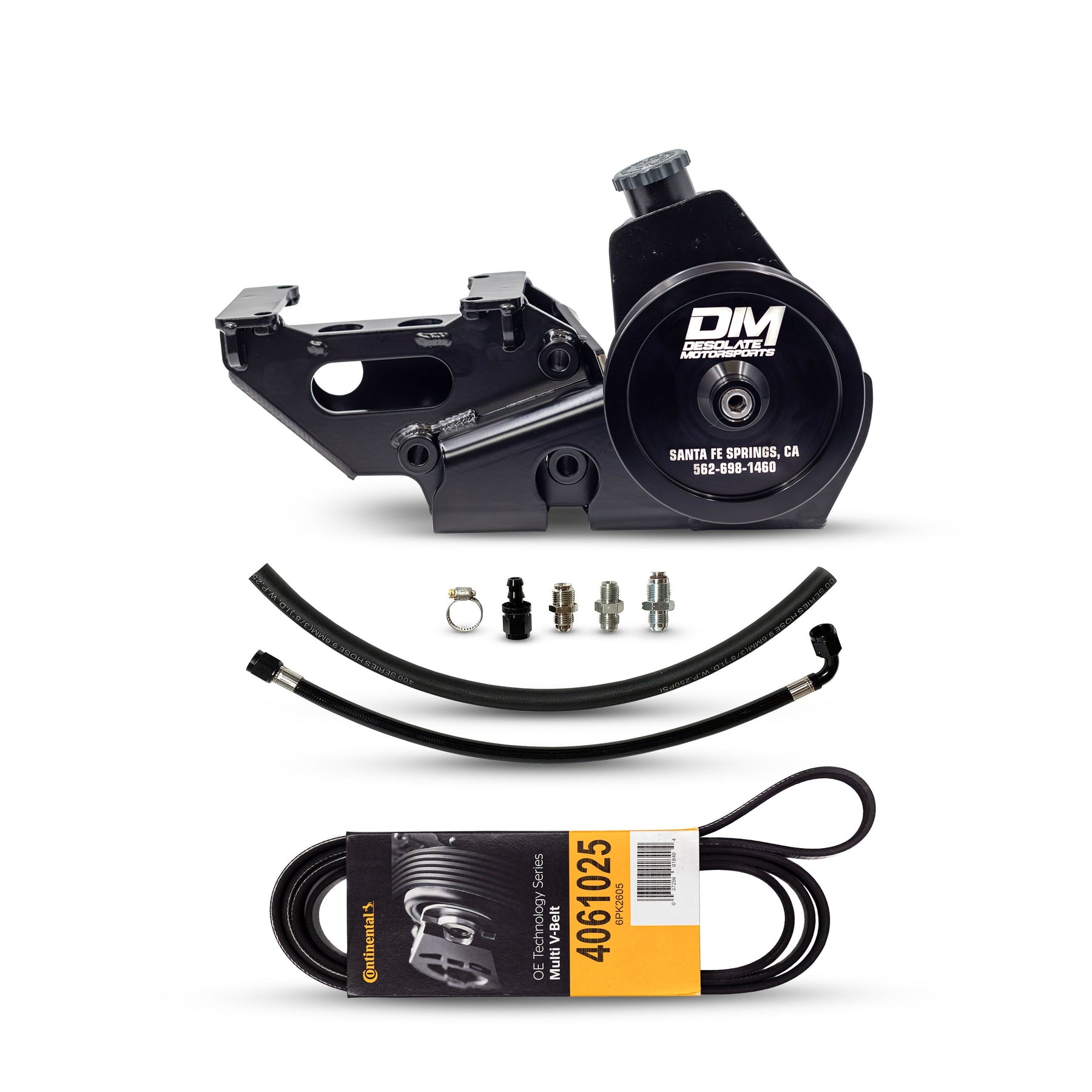

• 351 Motors use 103" Belt

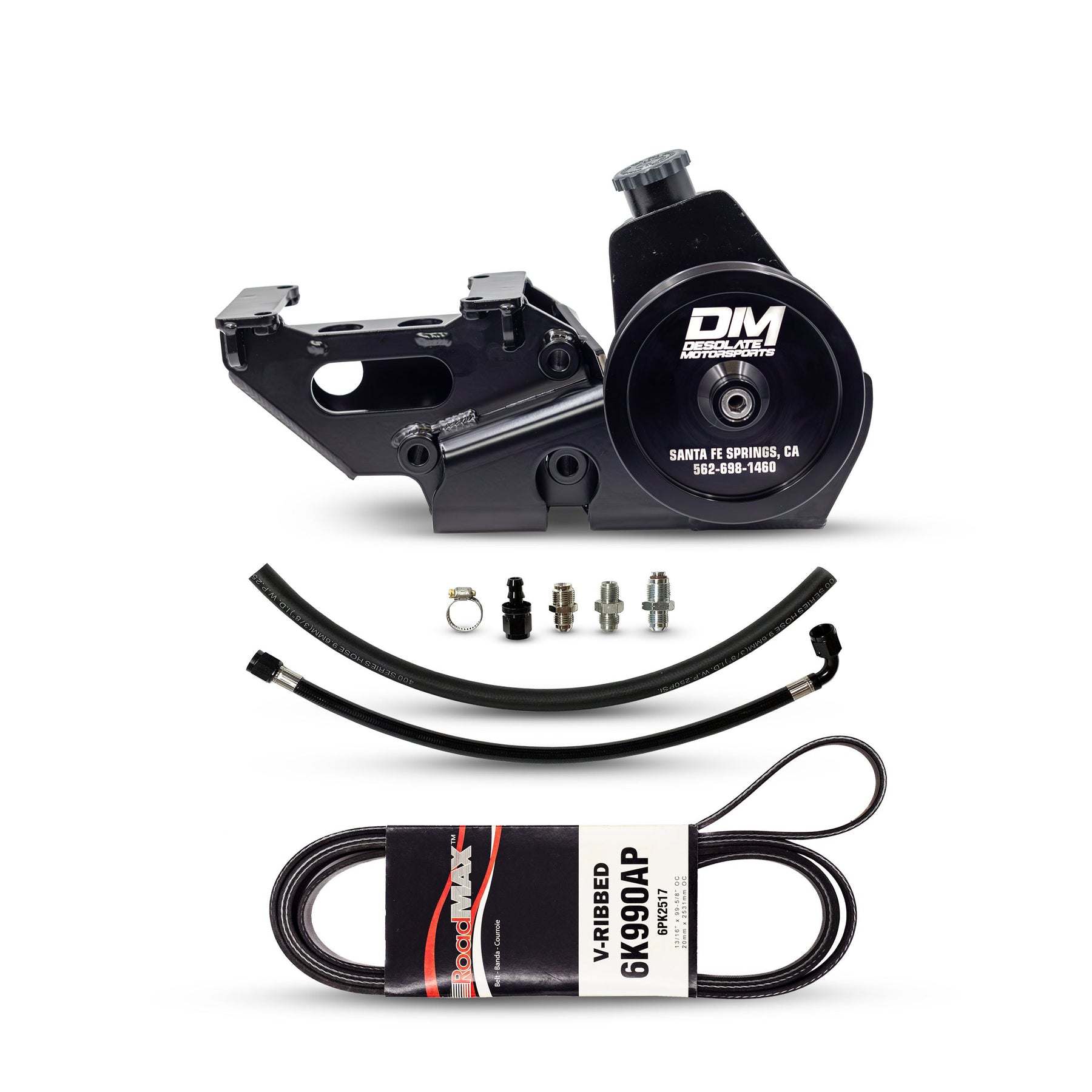

• 302 Motors use 99" Belt

Features:

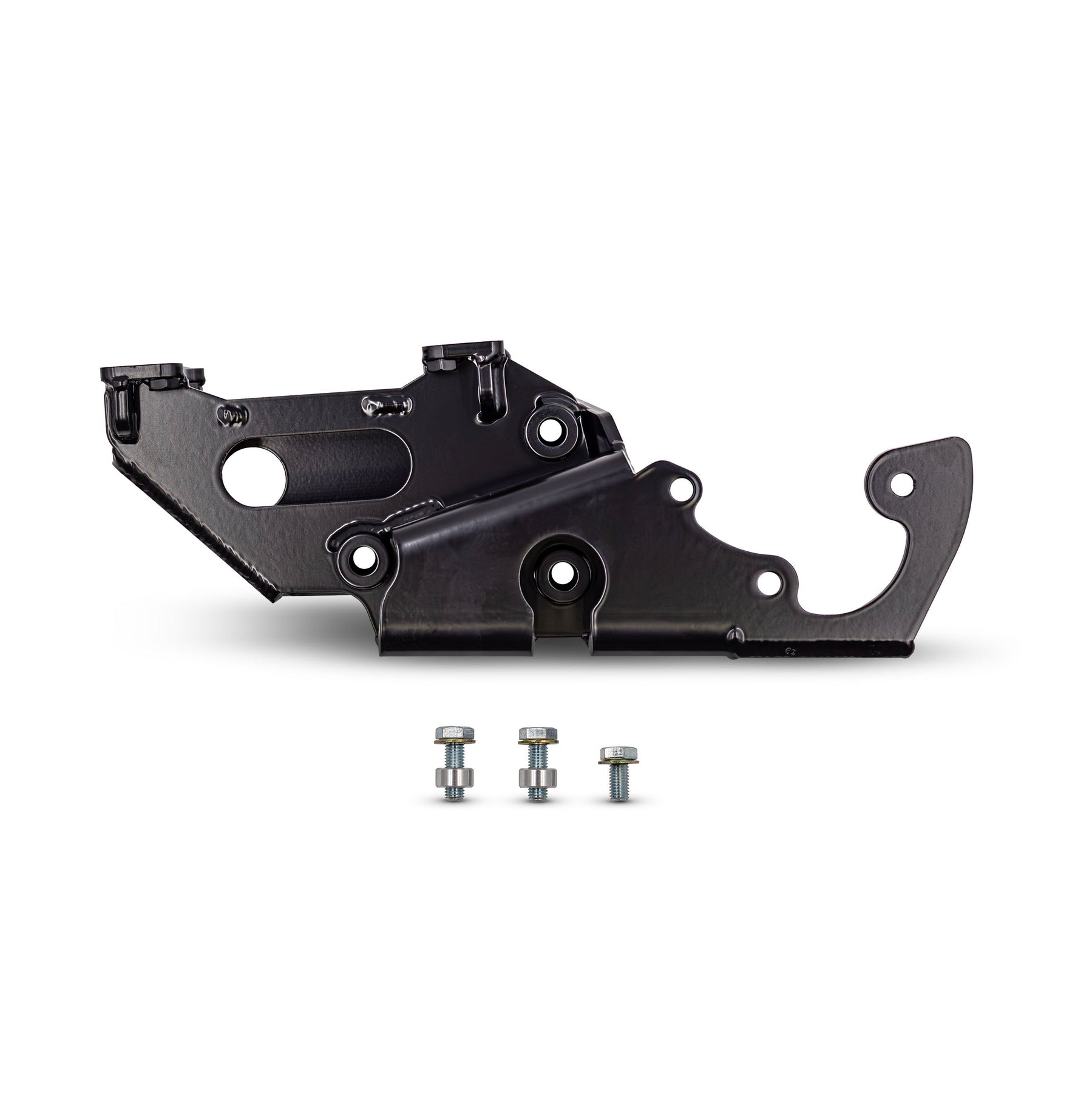

• CAD Designed Fabricated Bracket
• 6061 Anodized Billet Aluminum Serpentine Pulley
• Easy Bolt On Installation
• Retains Factory A/C Compressor

• Zinc Coated Bracket
