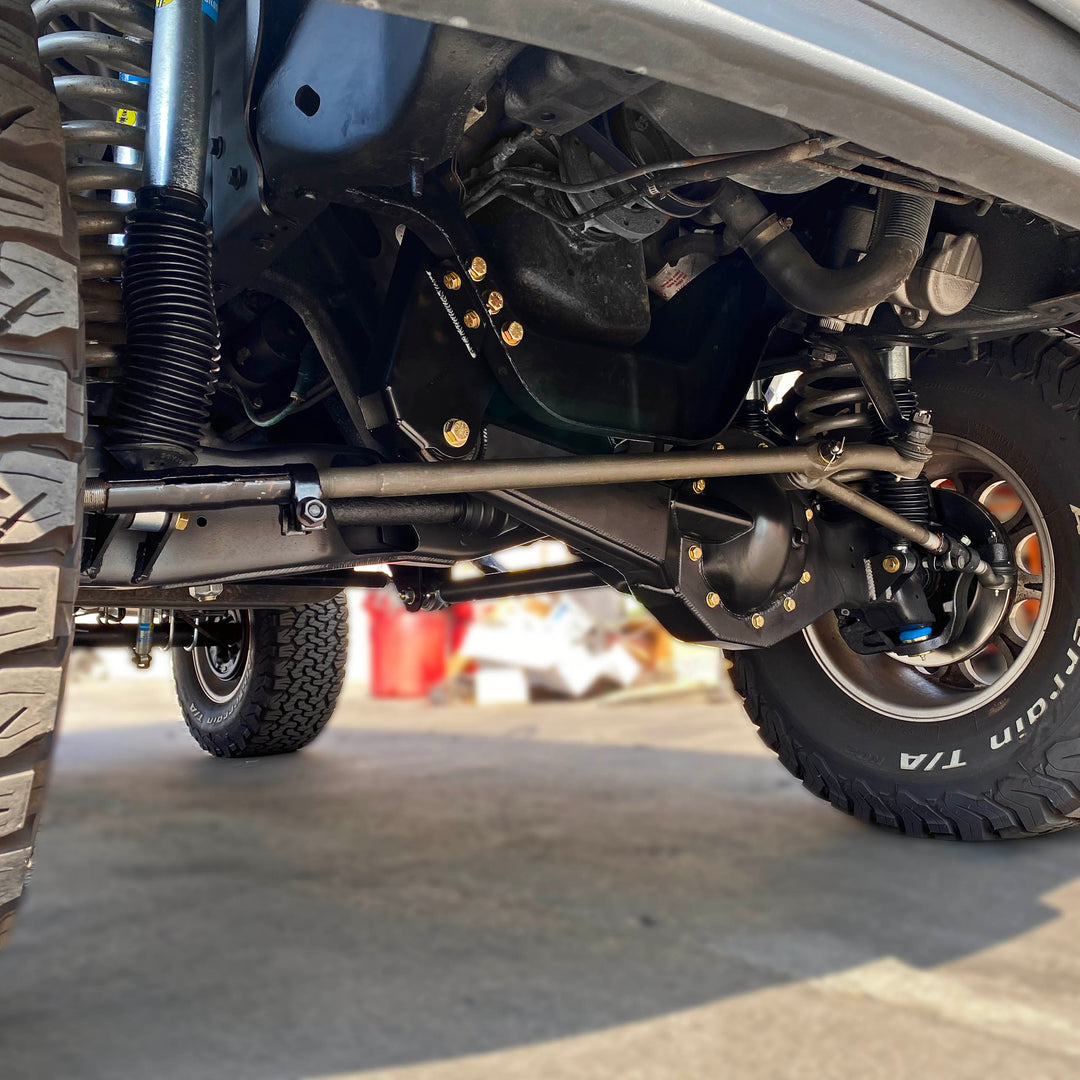

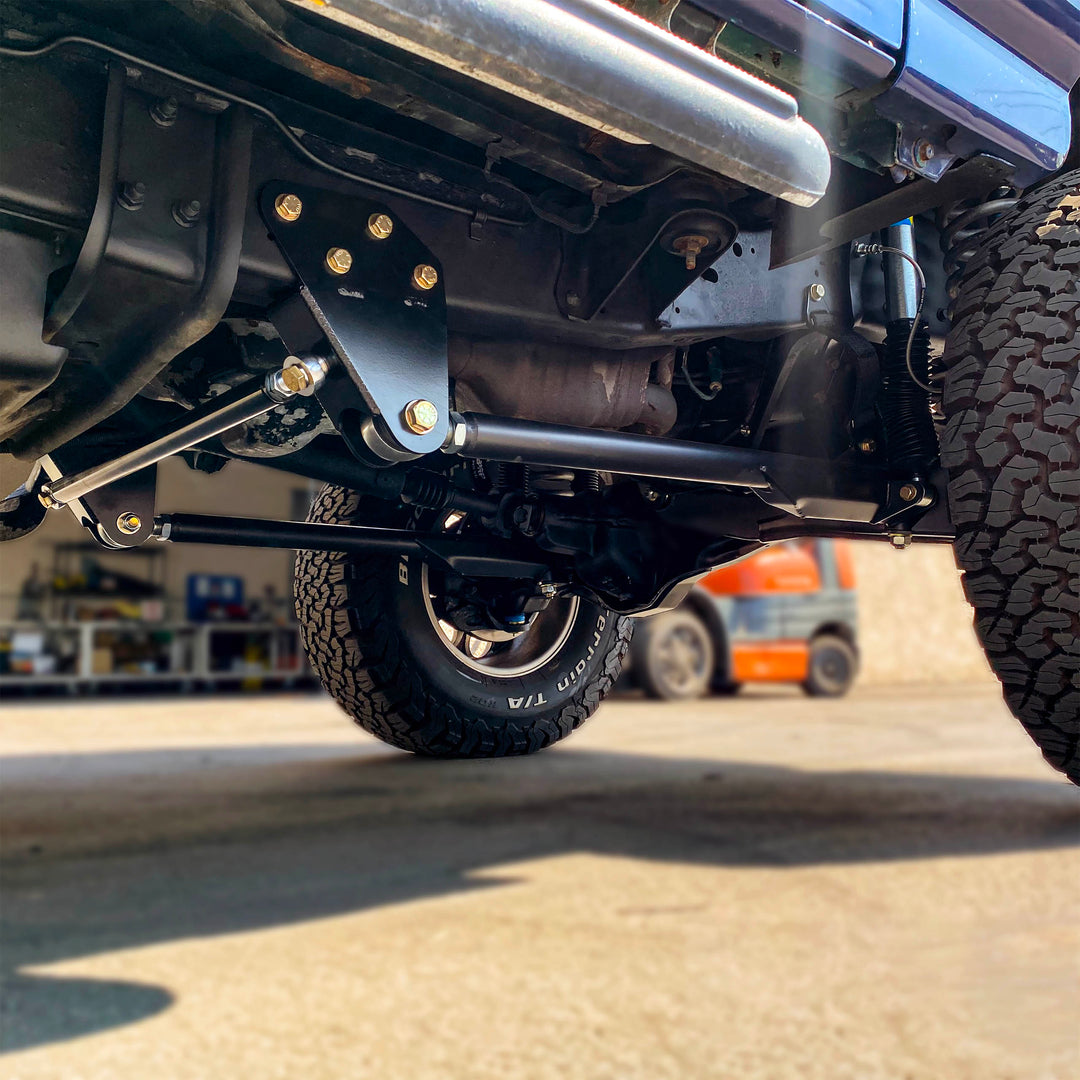

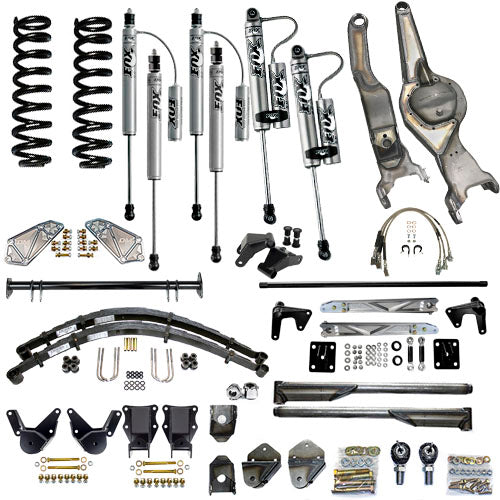

This package is the best of what we bring to the table for coil spring mid travel, 6" lift set up. The front kit includes our Level 2 TTB housings with camber correction modification performed, we form and weld 3/16 steel plating to all vulnerable areas of the beam and replace the stock urethane bushings for stainless steel 1" uniballs. Replacing the pivot with a uniball gives the beam much more solid engagement in your pivot brackets, eliminates deflection and allows the beam to cycle larger travel numbers without prematurely wearing a stock rubber bushing. To get the full 6" of lift we include a set of our 2" drop beam pivots. Beam mods also include an integrated bash guard and mini truss. Attached to the Level 2 TTB is our beautifully machined Billet Radius Arms pivoting on massive 1.25" heim joints. We supply Dual Fox 2.0 shocks paired with lift coils to control the suspension and adjustable alignment cams, front stainless steel extended brake lines, and front limit straps. In the rear, were going all in with our Complete Rear Suspension Package. Deaver Q80 leaf springs with our fabricated hanger and extended shackle, long travel sway bar kit with billet sway bar arms, Billet Upper and steel lower rear shock mounts pair with Fox 12" x 2.0 reservoir shocks provide 17" of vertical wheel travel. Also included in this package is new 5/8" diameter U-bolts, spring perches, HD U-bolt plates.
Lastly because were going "ALL IN" This package includes our Complete steering upgrade and HD replacement ball joints. This steering upgrade will replace every single wearable part on your steering. Desolate Motorsports Saginaw conversion pump kit is a complete pump conversion that include fabricated bracket, Saginaw pump, DM branded Billet pulley, all new lines, hoses and a serpentine belt. You will also receive our HD tie rod kit, full drop pitman arm, remanufactured Ford steering gear box and new precision Borgeson intermediate steering shaft.
Note: The dual fox option is a 2.0 body with reservoir for the main shock and auxiliary fox is standard 2.0 without reservoir. Vehicle must have factory dual shock coil bucket if choosing dual shock option. Rear Deaver springs are not recommended for towing or heavy loads. All vehicles require alignment after lift install. Please call or email for more info.
Features:
- Approx. 4” of lift
- Front Wheel Travel 12”
- Rear Wheel Travel 17"
- Better front end articulation than stock
- Clears 35-37” tire
