DM-11K010-01

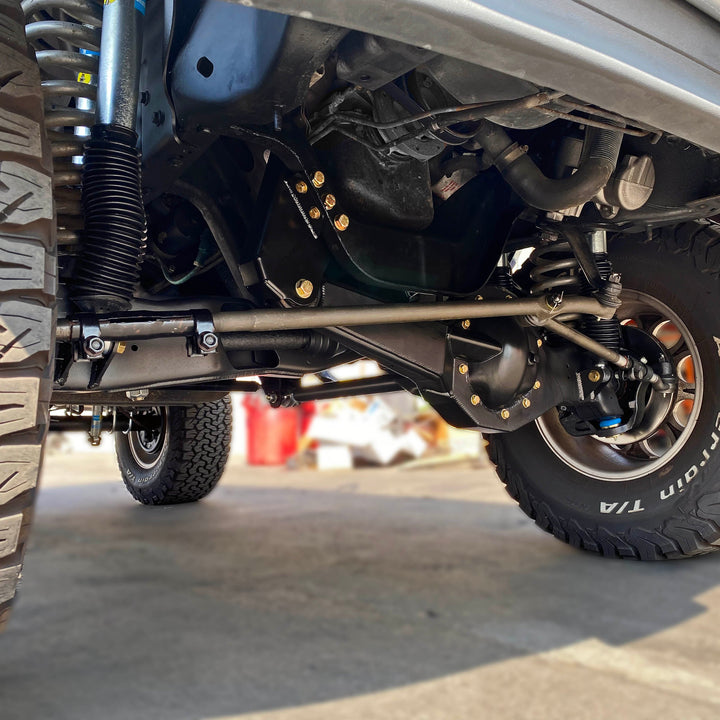

Building off the awesome attributes from the 4" Mid Travel kit, this 6" lift kit is designed to provide the same ride quality in a 6" lift kit. A kit that will withstand big tires and trail usage like a champ, while still keeping great on the Highway drive characteristics. This kit can be used with 35 or 37" tires. (37's will require trimming.)
This lift kit features a 4" lift coil paired with Desolate Motorsports Billet Coil Spacers and 2" Drop Pivot Brackets to achieve the full 6" of lift while keeping it within alignment spec. Customize this kit by choosing Fox 2.0 or Bilstein 5100 series shocks, as well as selecting either High Clearance Steel or Billet Aluminum Radius Arms that pivot on massive 1.25″ heims. Both extended radius arm options are designed with more caster angle than factory radius arms, resulting in a more relaxed driving experience. The Modified Stock Width TTB Housings included in this kit has been reworked to correct camber and is reinforced with 3/16 steel plating that is formed and welded to all vulnerable areas of the beam. The stock urethane pivot bushings are removed, and machined cups are welded in place to accommodate stainless steel 1" uniballs. This replacement enhances the solid engagement of the beam within the pivot brackets, eliminates deflection, and allows for greater travel without prematurely wearing out stock rubber bushings. Additional modifications to the beams include an integrated bash guard and mini truss. Front extended stainless brake lines, front limit straps, a full drop pitman arm, and adjustable alignment cams are all included to complete the install of this kit.
Note: The dual fox option is a 2.0 body with reservoir for the main shock and auxiliary fox is standard 2.0 without reservoir. Vehicle must have factory dual shock coil bucket if choosing dual shock option. All vehicles require alignment after lift installation. Please call or email for more info.
Please refer to our Install Guide Page for a most up to date installation guide.
Upgrades:
