DM-11K007-01

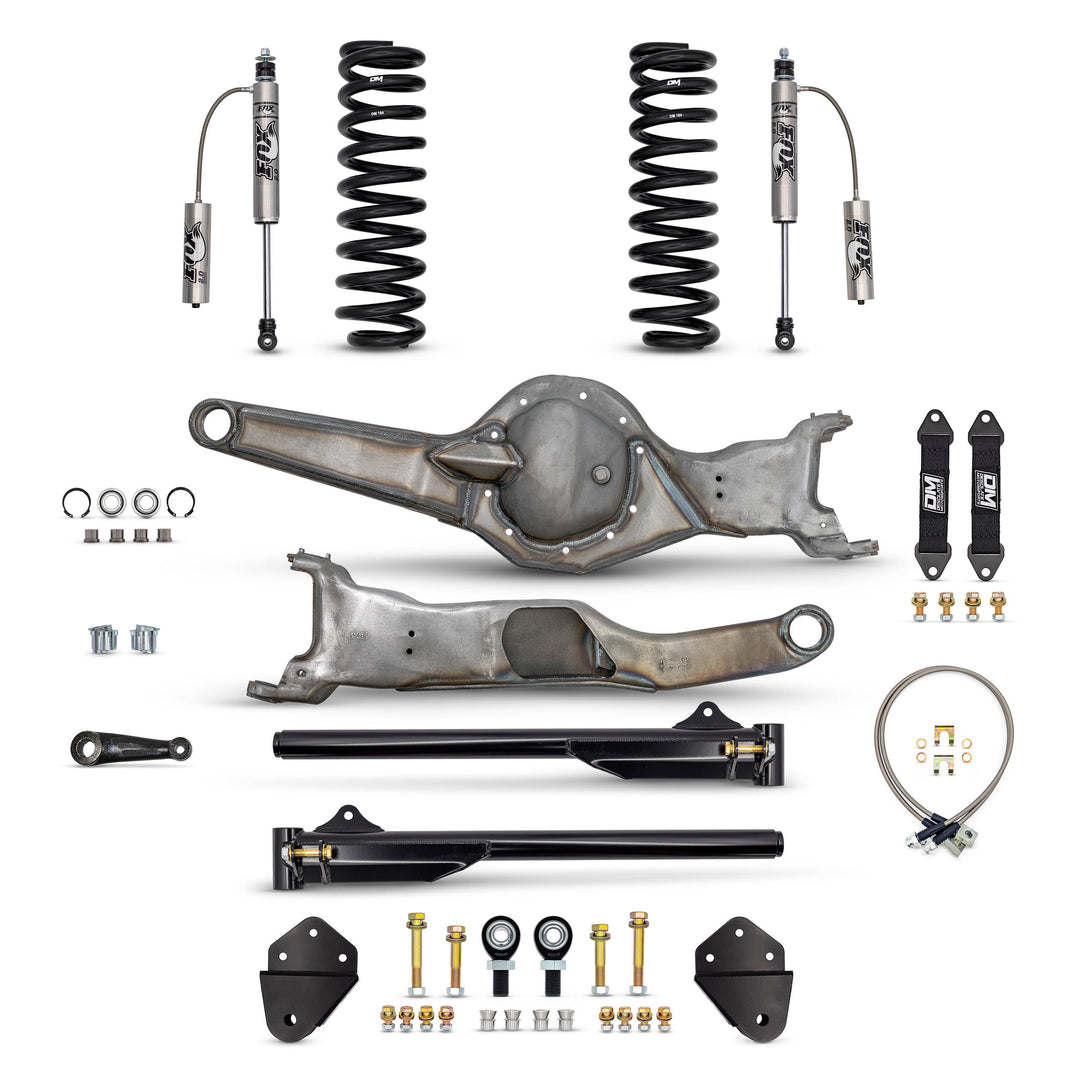

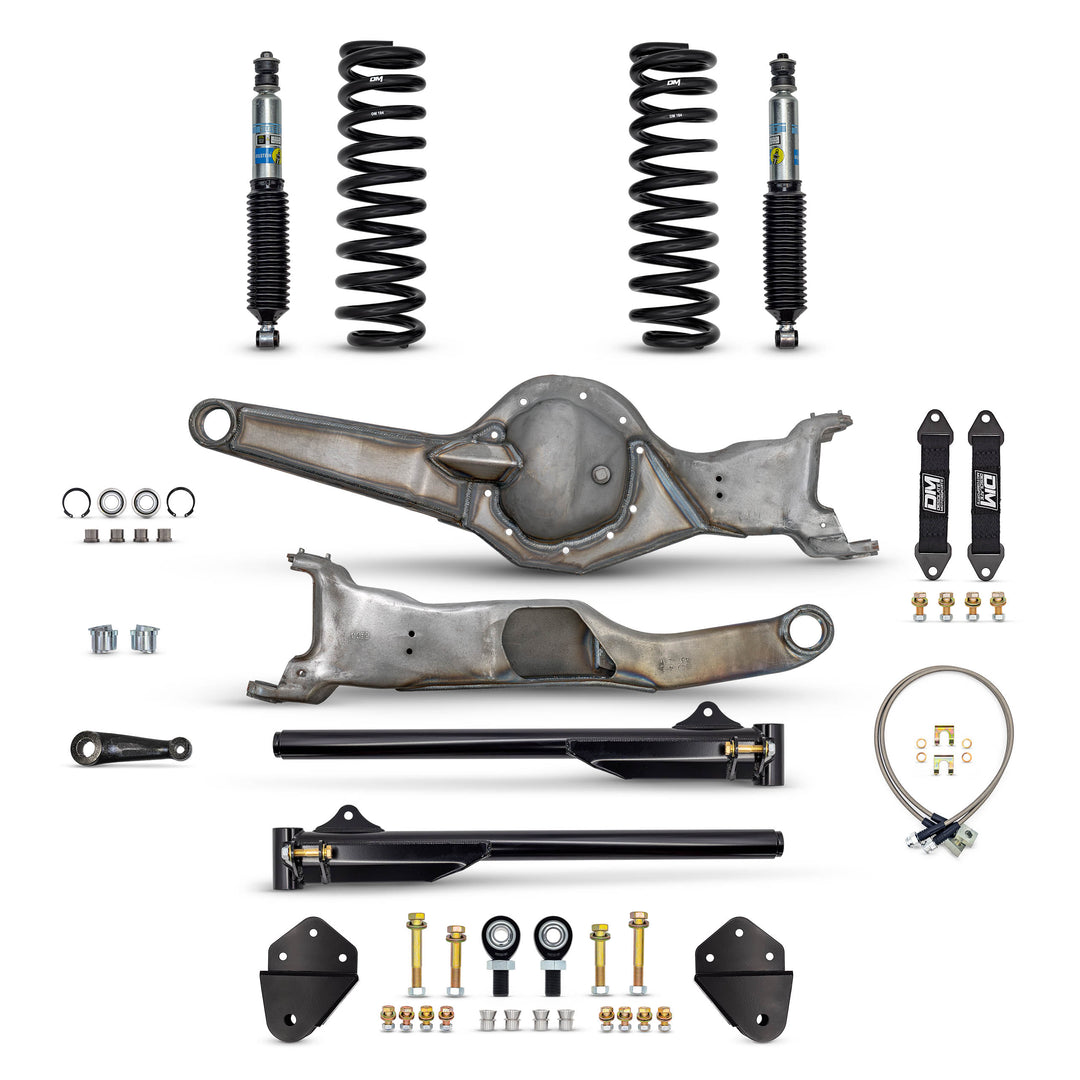

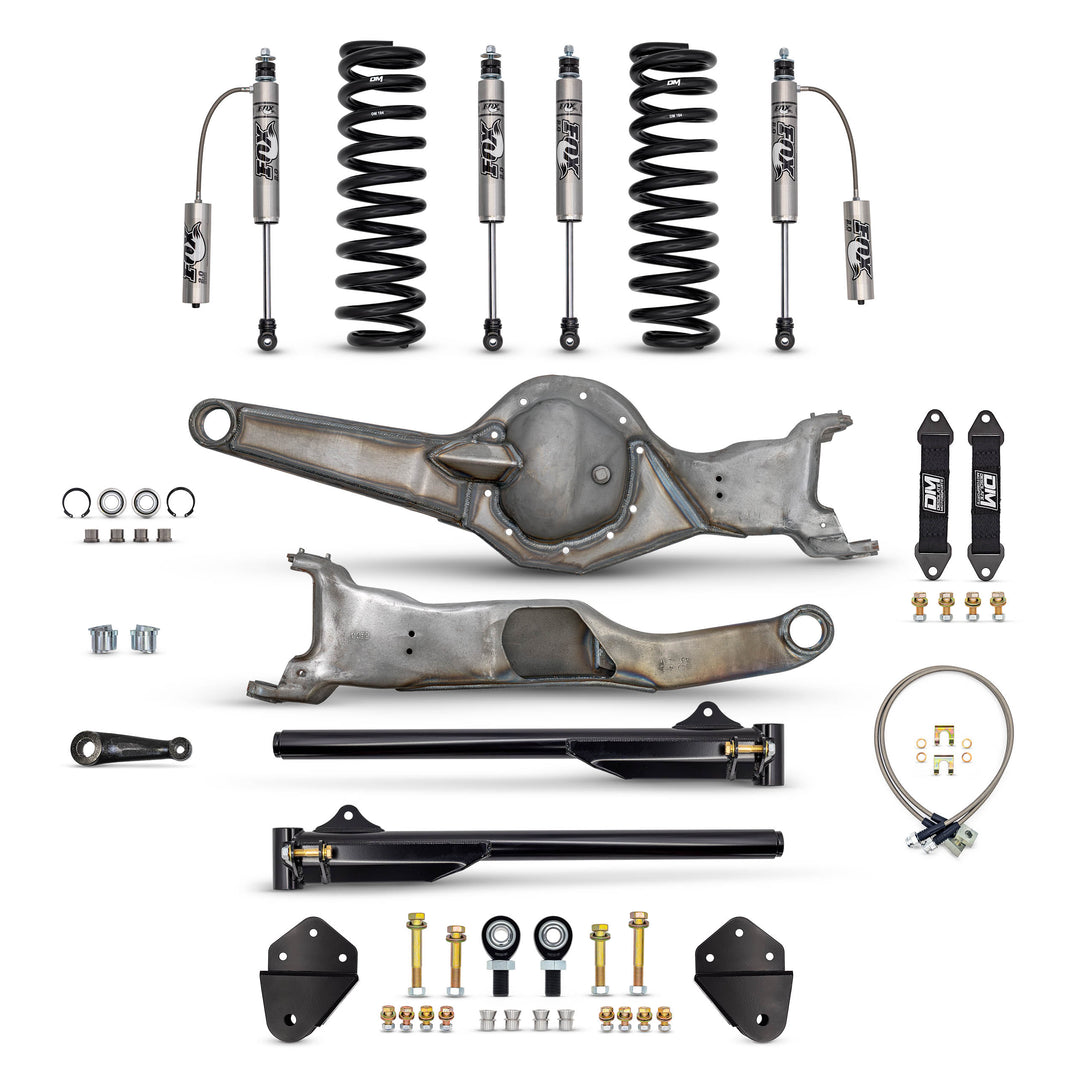

This kit is perfect for the weekend warrior ready to take on some back roads. Featuring a 4" lift coil and choice of Fox 2.0 or Bilstein 5100 series shocks, you’ll be riding down the road or trail in comfort. Further customize this kit by selecting High Clearance Steel or Billet Aluminum Radius Arms, which pivot on robust 1.25″ heims. Both extended radius arm options are designed with more caster angle than factory radius arms, providing a more relaxed driving experience. The Modified Stock Width TTB Housings in this kit have been reworked to correct camber and are reinforced with 3/16 steel plating formed and welded to all vulnerable areas of the beam. The stock urethane pivot bushings are removed, and machined uniball cups are welded in place to accommodate stainless steel 1" uniballs. This replacement enhances solid engagement in the pivot brackets, reduces deflection, and allows for larger travel numbers without prematurely wearing out a stock rubber bushing. Beam modifications also include an integrated bash guard and mini truss.
Other components to complete this kit include extended front stainless brake lines, front limit straps, mild drop pitman arm, and adjustable alignment cams that are preconfigured for this kit.
This solid mid-travel kit is capable of 11” of front wheel travel cycling a 35” tire and ready for the trails.
Note: Vehicle must have factory dual shock coil bucket if choosing dual shock option. All vehicles require alignment after lift installation. Please call or email for more info.
Please refer to our Install Guide Page for a most up to date installation guide.
Features:
