Name: 80-96 Bronco / F150 Billet Radius Arm Kit
Brand: Desolate Motorsports
SKU: DM-11K061-01
Price: 1699.99 USD
Availability: InStock

80-96 Bronco / F150 Billet Radius Arm Kit

$1,699.99

Shipping calculated at checkout.

Radius Arm Style

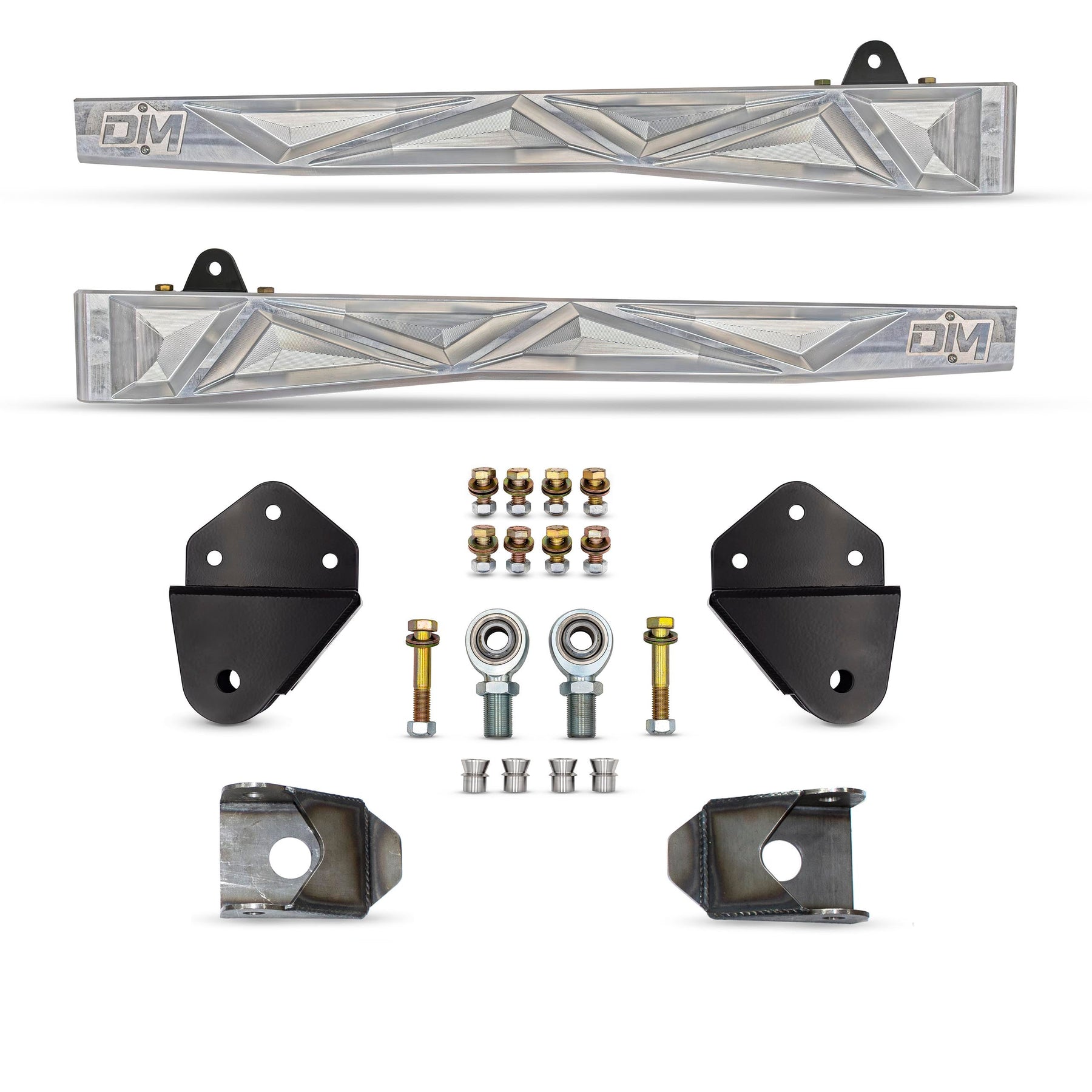

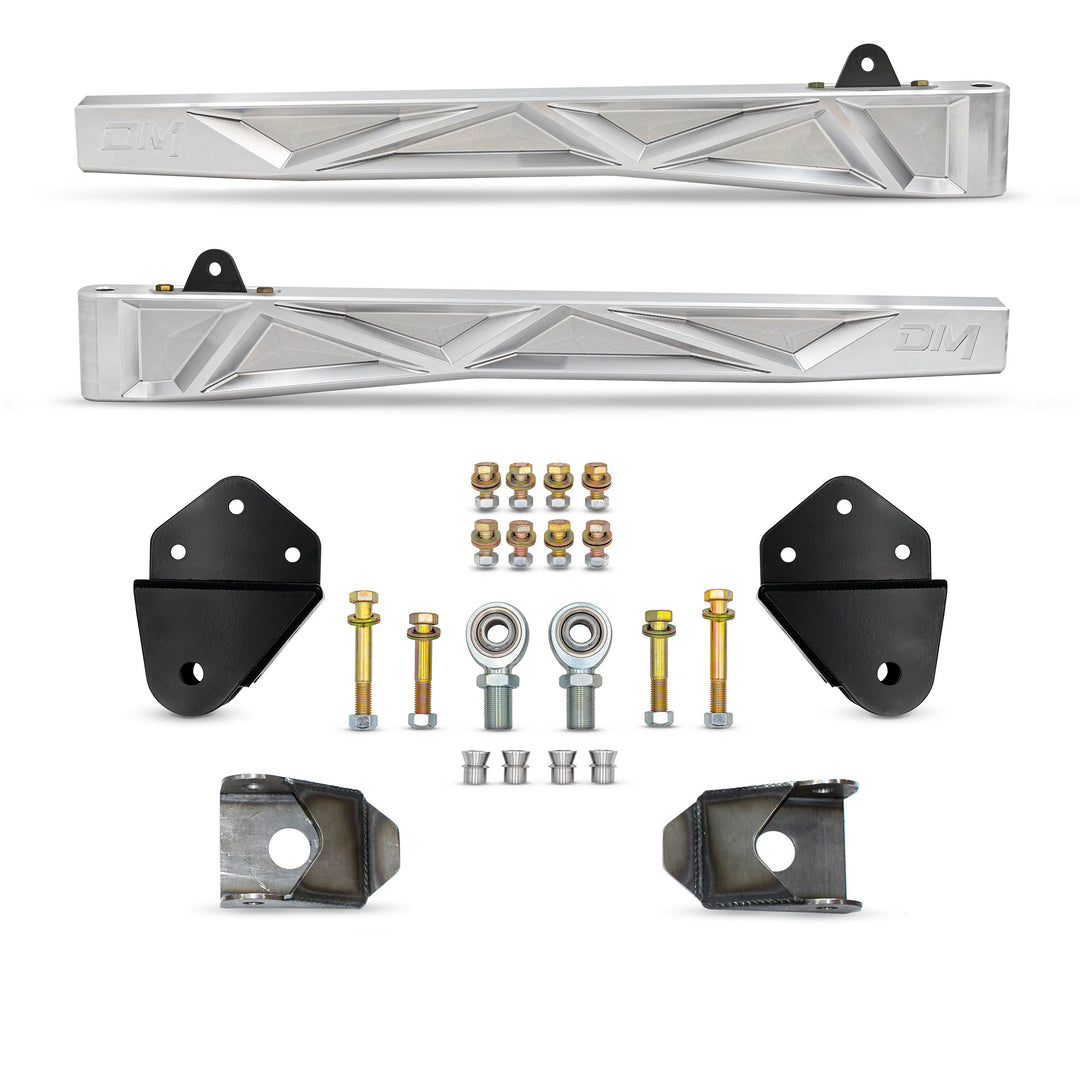

Coil Over Radius Arms

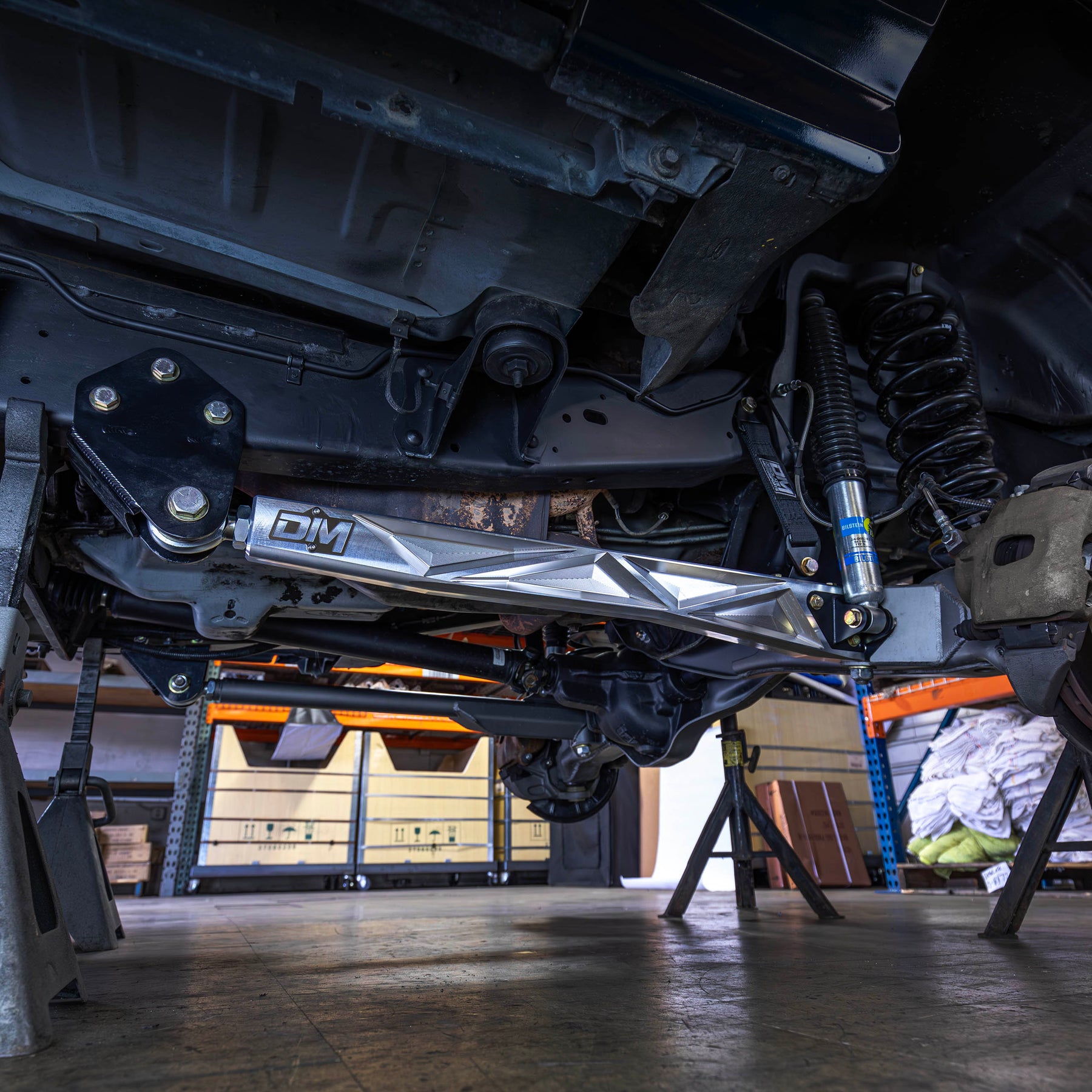

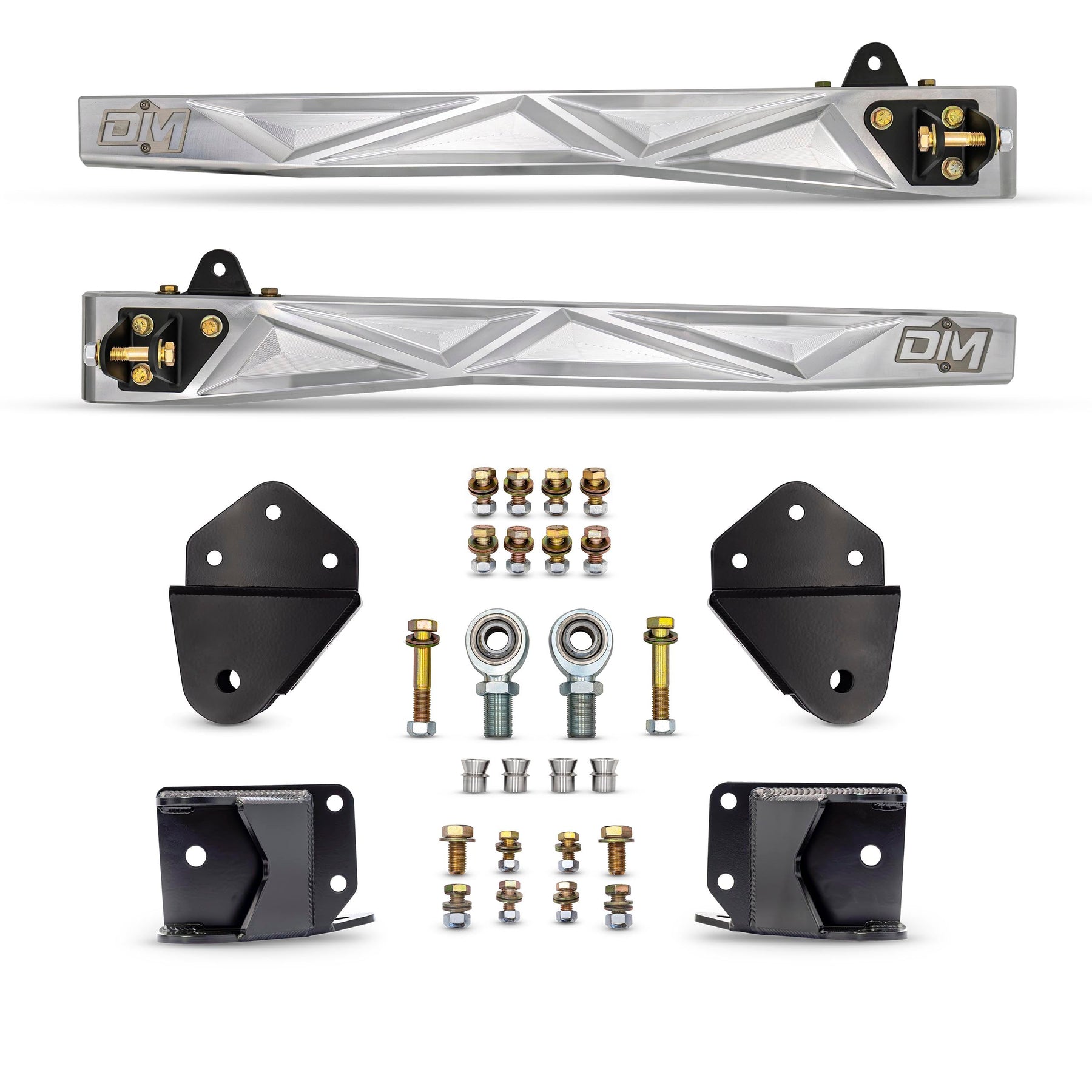

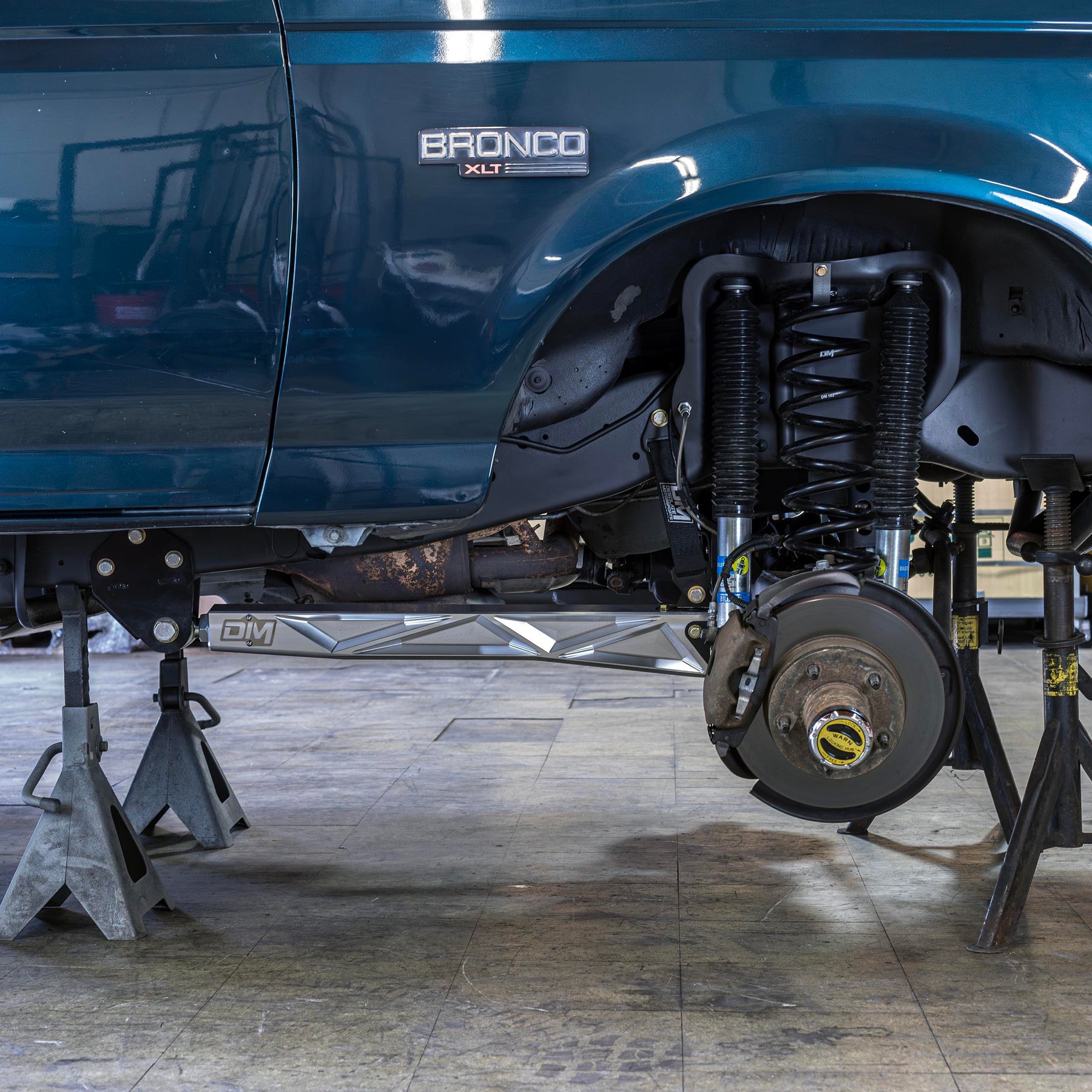

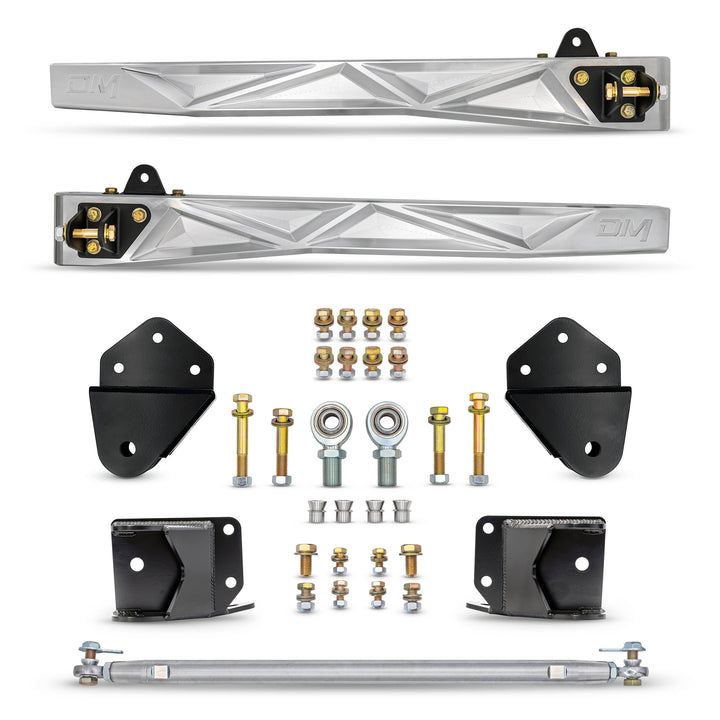

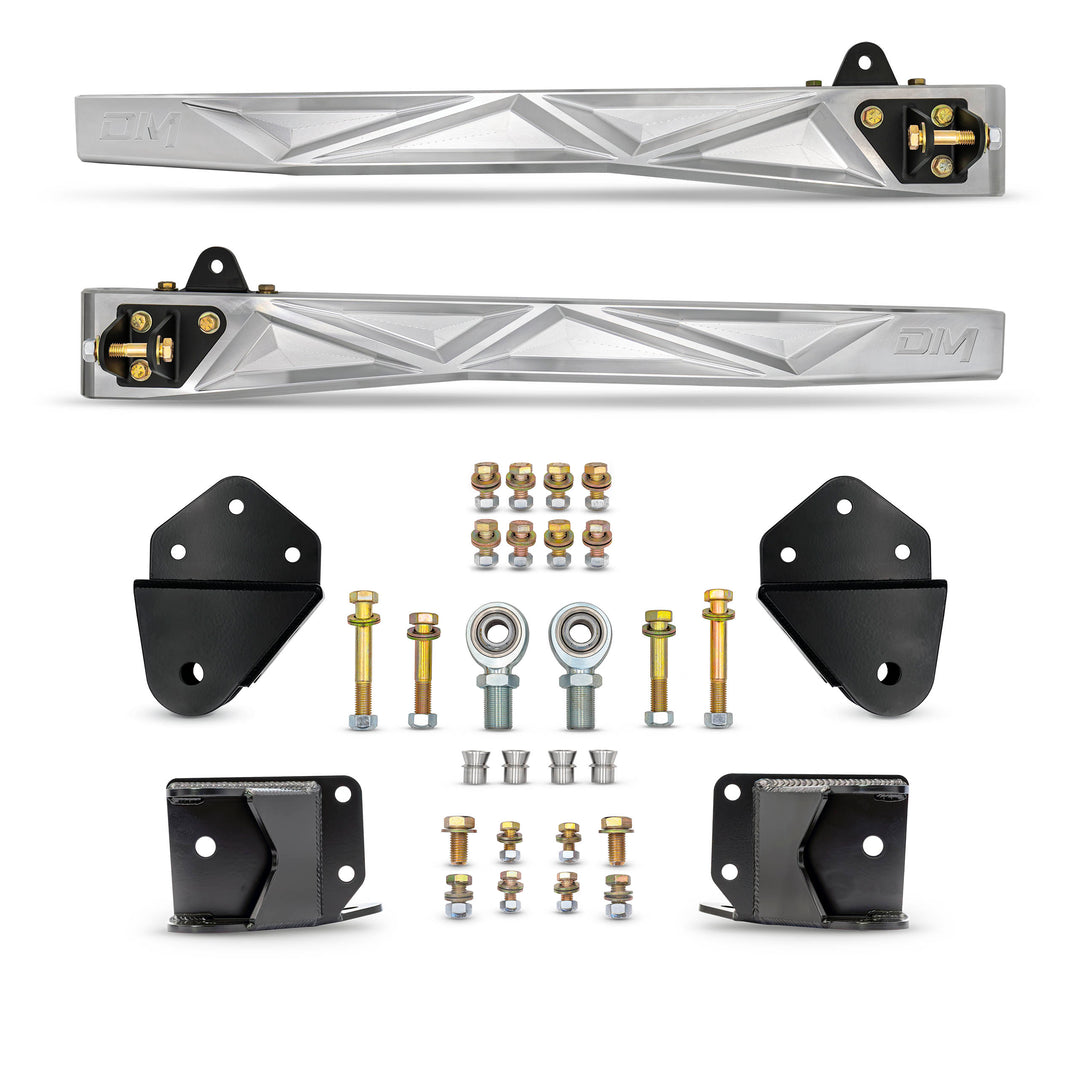

Coil Spring Radius Arms

Radius Arm Cross Member

No Radius Arm Cross Member

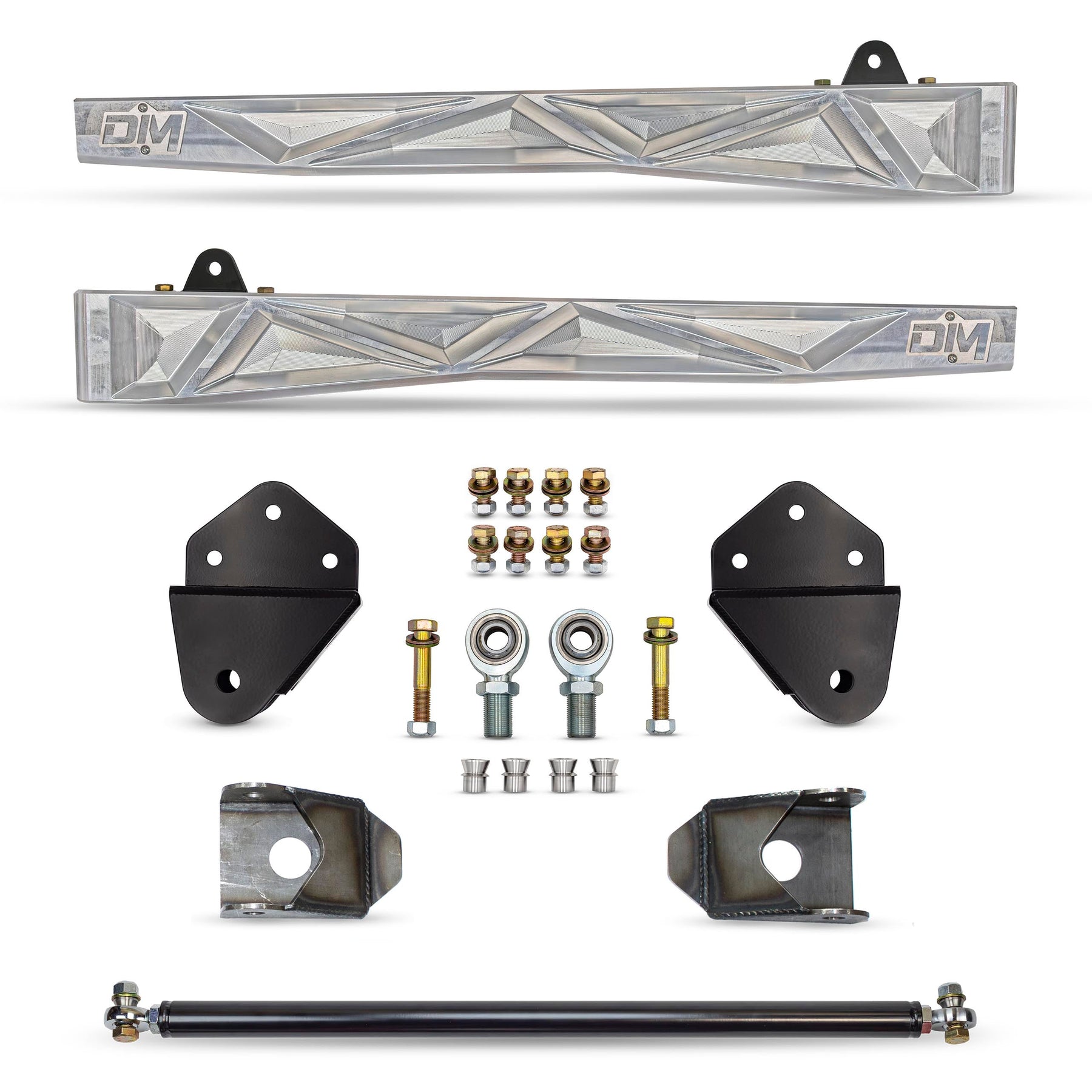

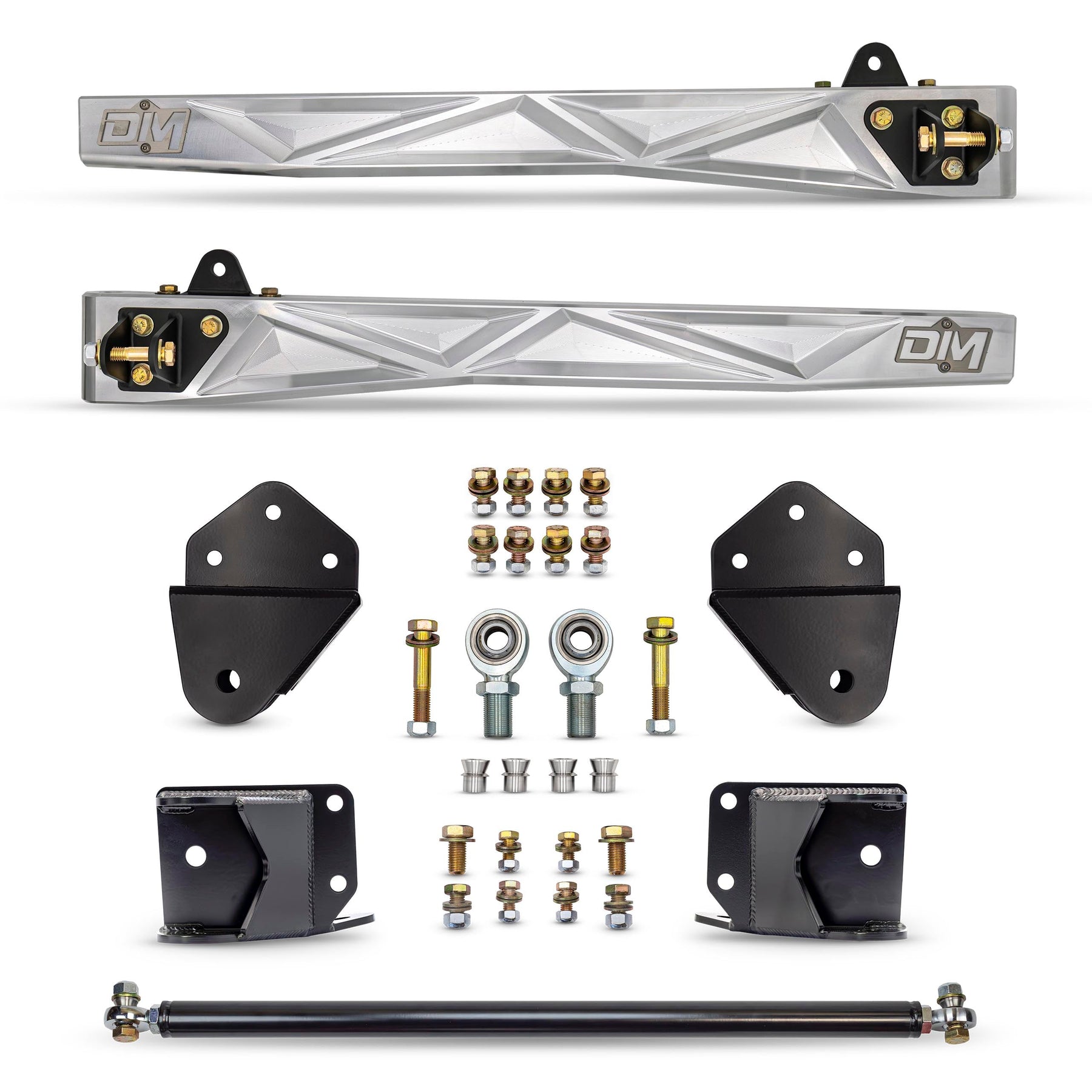

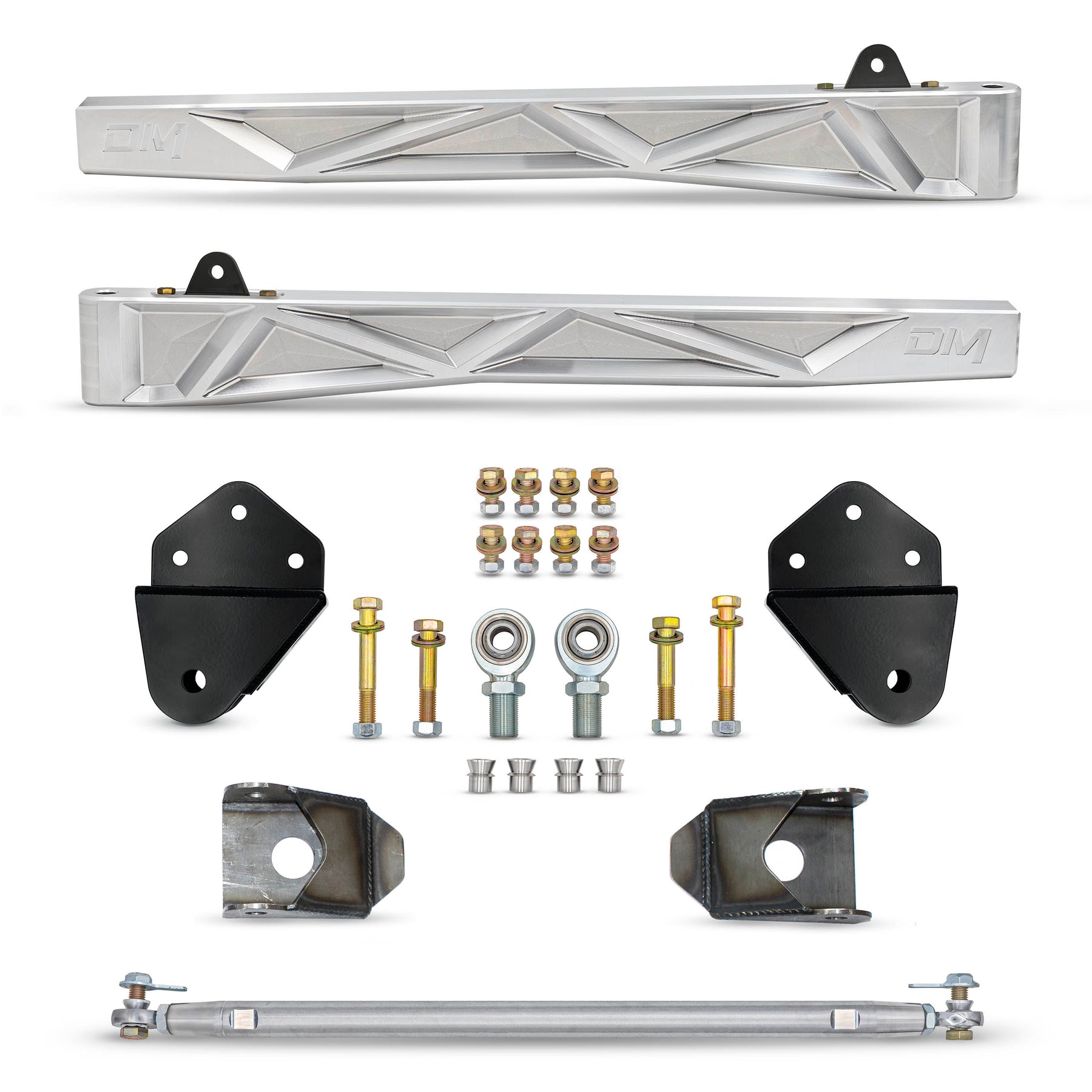

Add Radius Arm Cross Member

In stock, ready to ship!
.

If you're into the highest quality billet aluminum suspension components, then these Billet Radius Arms are for you! They share the same dimensions as the high clearance fabricated versions but with the added "Bling Factor". Recessed pockets have been added to the top and side of the radius arms to accept the included bolt on limit strap tabs as well as the optional bolt on shock mounts for coil spring applications. They also share all the same heavy duty mounting bracketry as their fabricated counter parts. The proprietary weld on radius arm mounting bracket locates on the back side of your beams and utilizes a large 3/4" bolt and lock nut for mounting. This unique beam attachment point eliminates the top and bottom threaded inserts in your beams that are known failure points. The frame pivot brackets are constructed of laser cut .250” steel and give you the ability to run our optional radius arm crossmember. Includes all grade 8 hardware. These arms are an excellent upgrade that bolt straight in if you are already running one of our other radius arm styles.

Note: Order any front suspension kit that includes beams and radius arm mounts will be welded on your beams at no extra charge. Coil over arms ship with our weld on beam bracket and coil spring arms will ship with our powder coated bolt-on beam brackets.

Features:

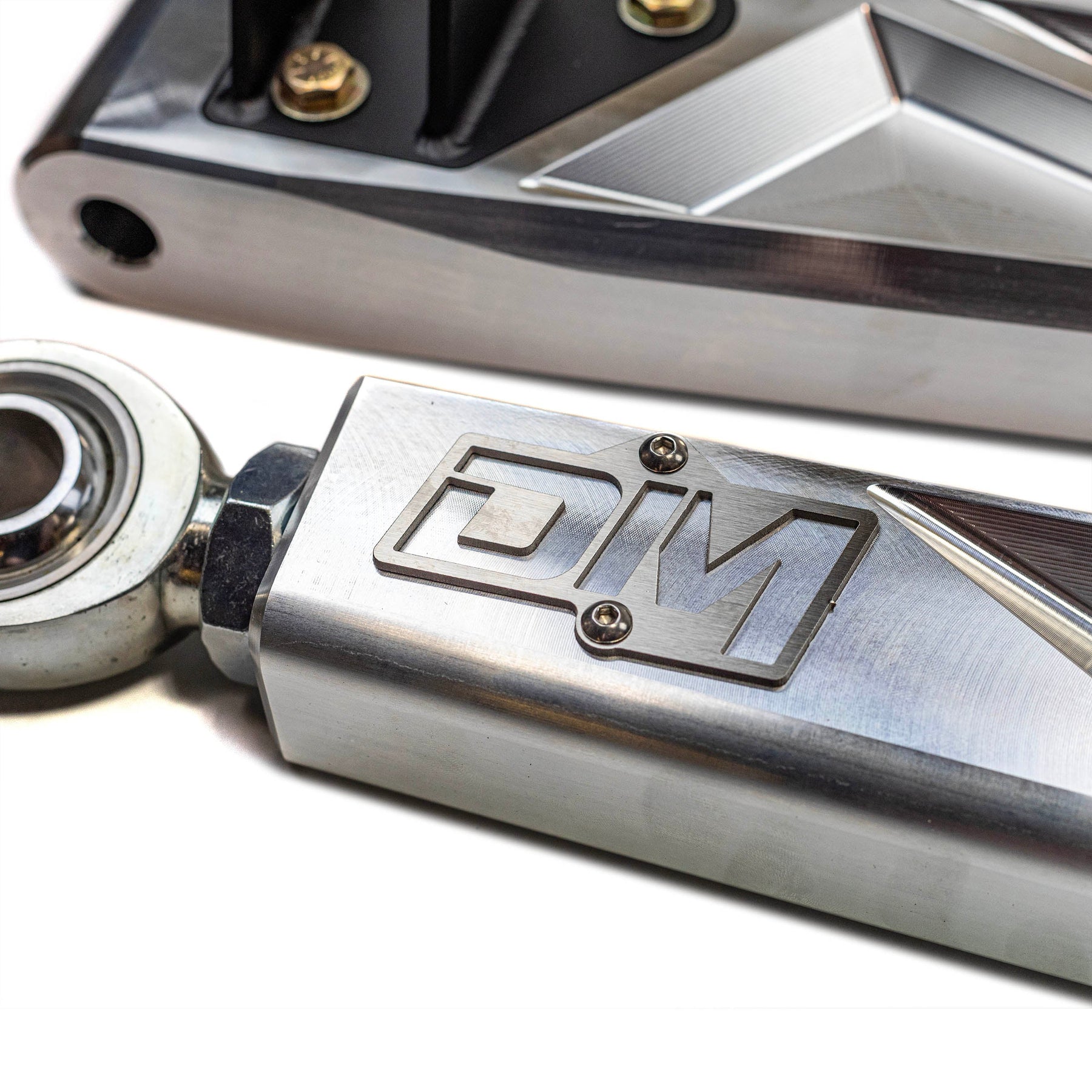

CNC Machined Billet 6061 Aluminum
Bolt-on .250” plate pivot brackets
1.25” Heims

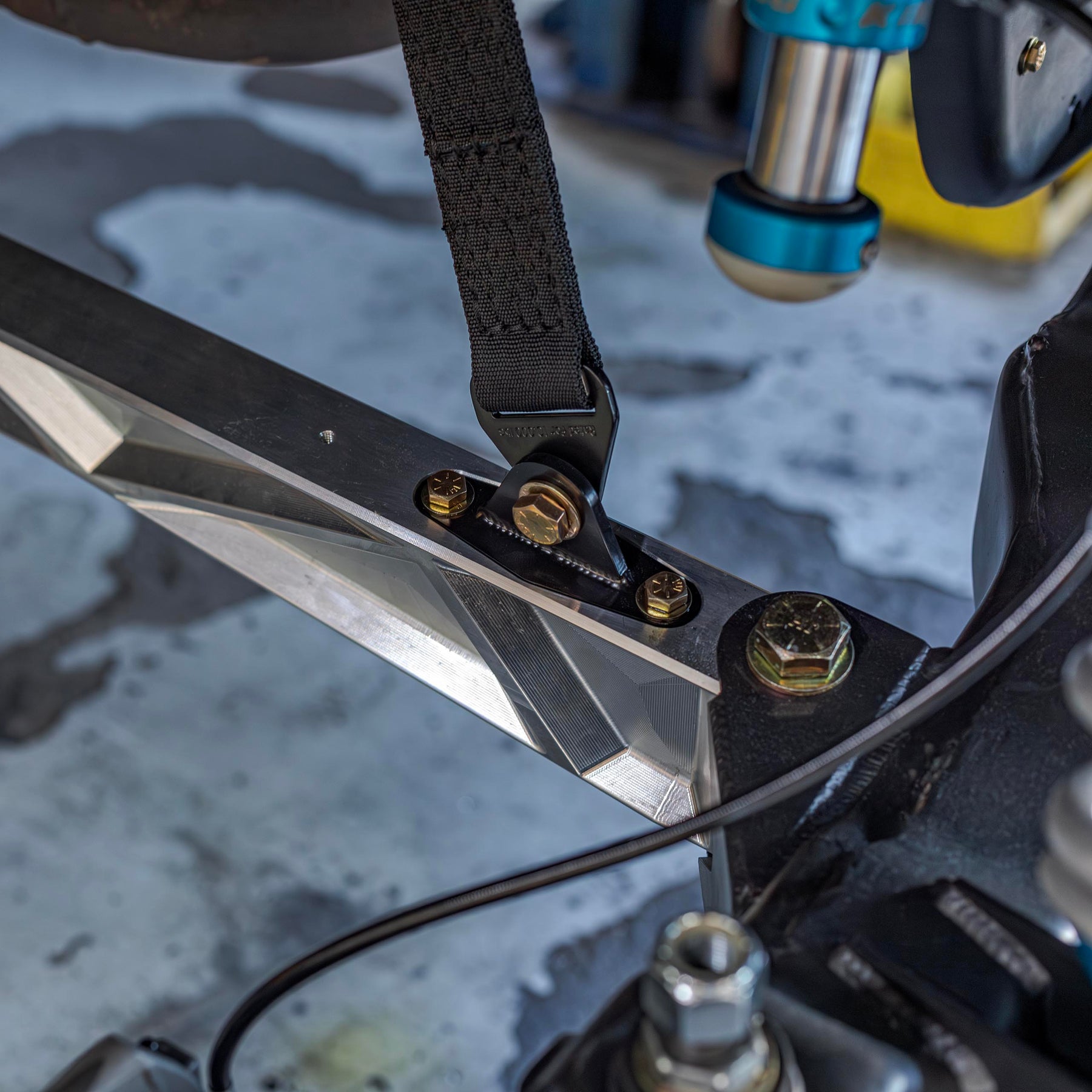

Bolt-on limit strap tabs

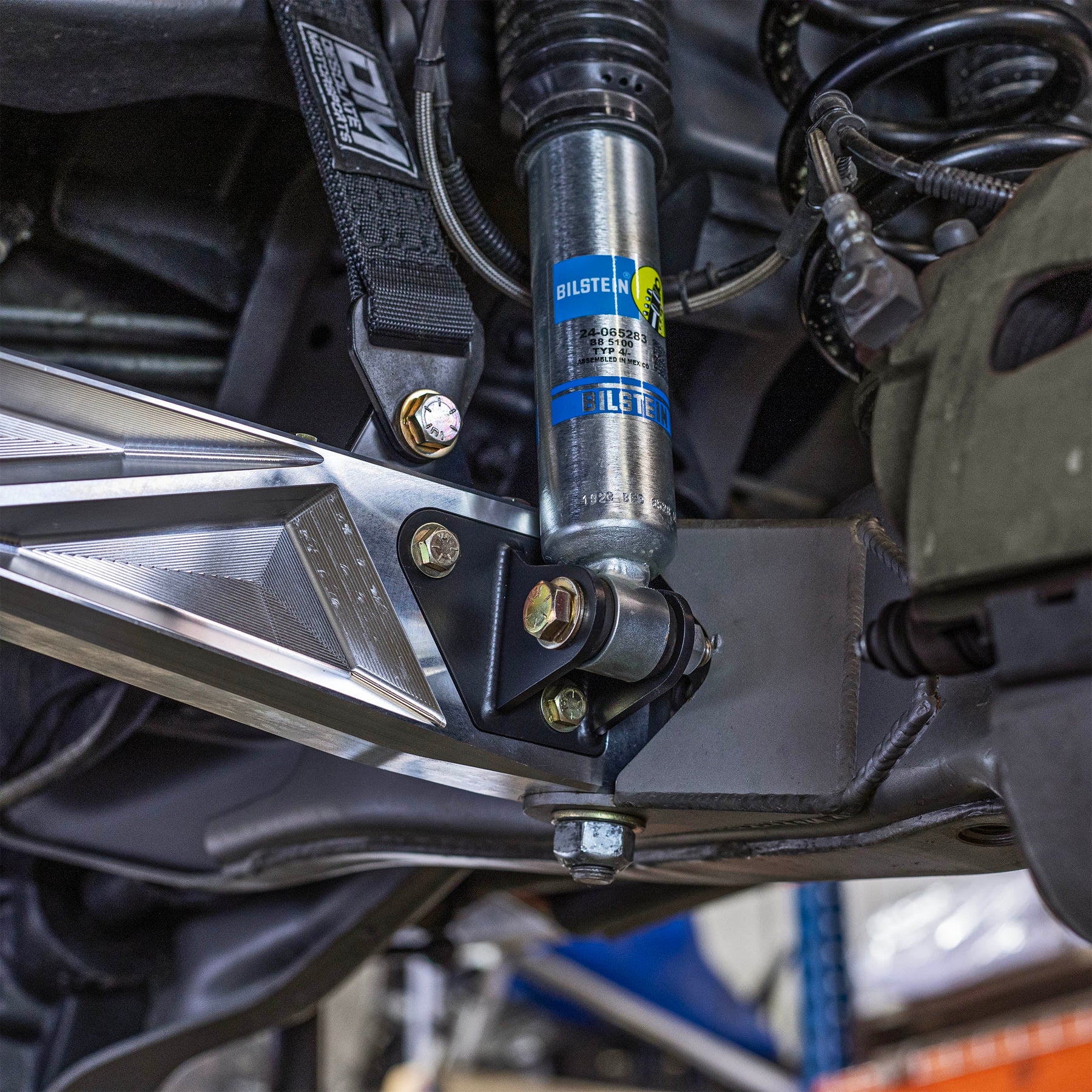

Bolt-on shock mounts (coil spring applications)
