IPK213

Regular price$1,149.00
/
Shipping calculated at checkout.

  • Low stock - 3 items left
  • Backordered, shipping soon

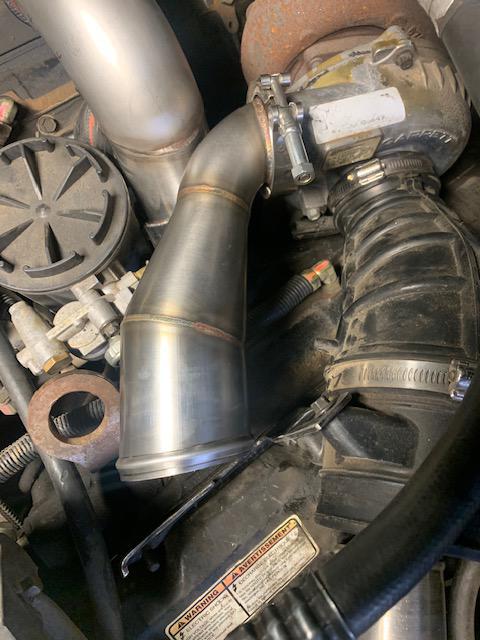

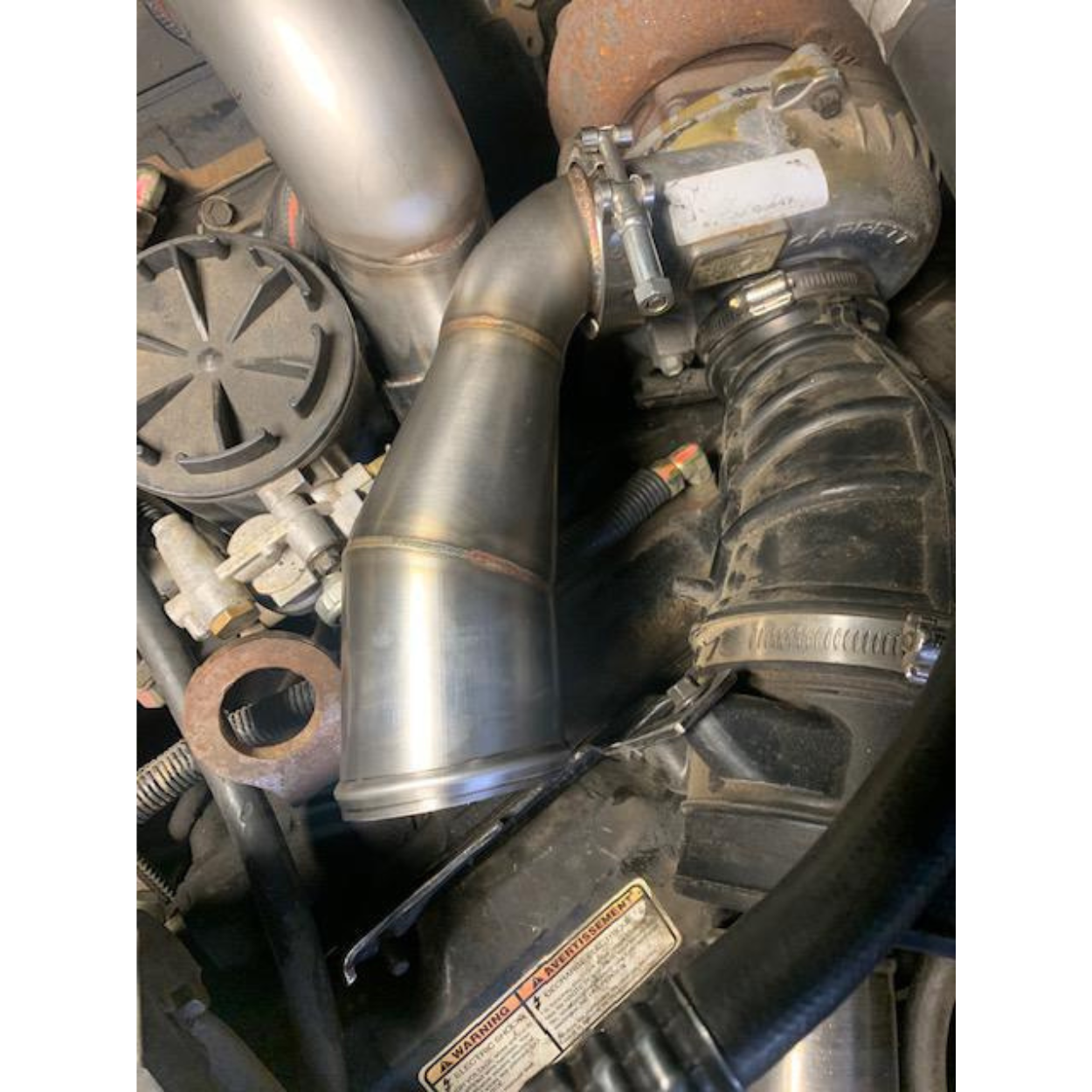

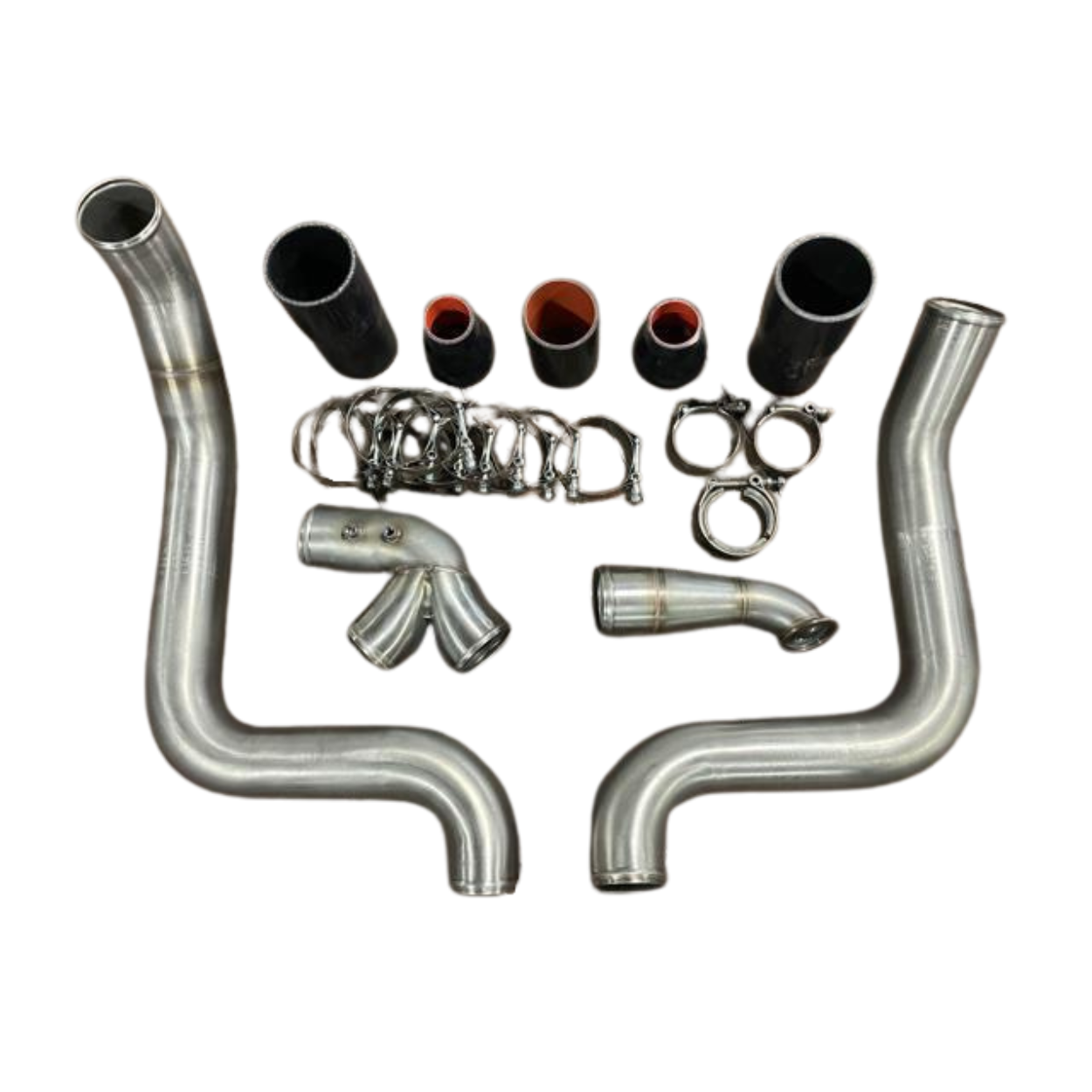

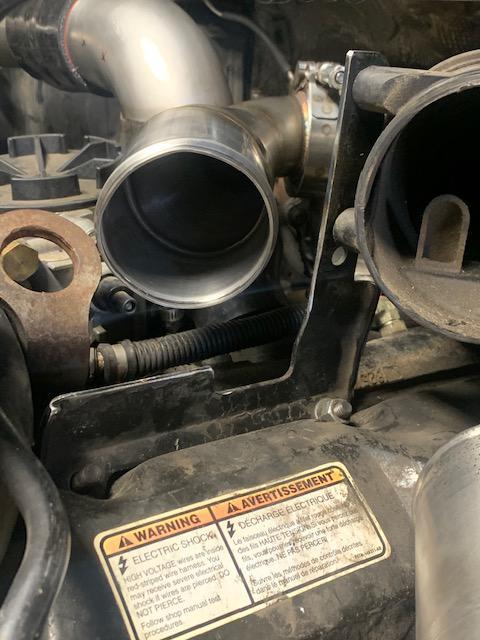

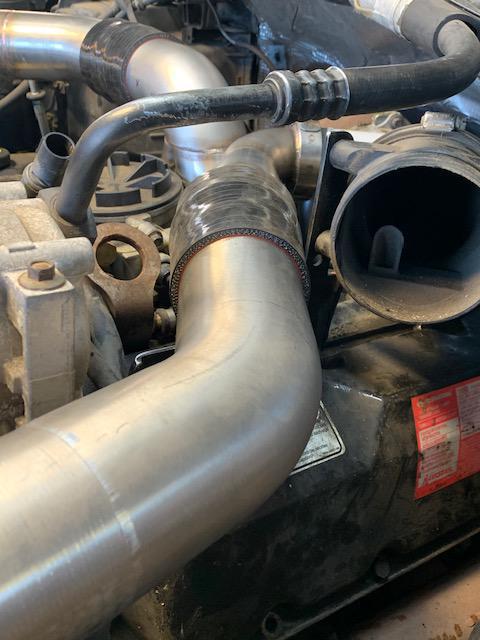

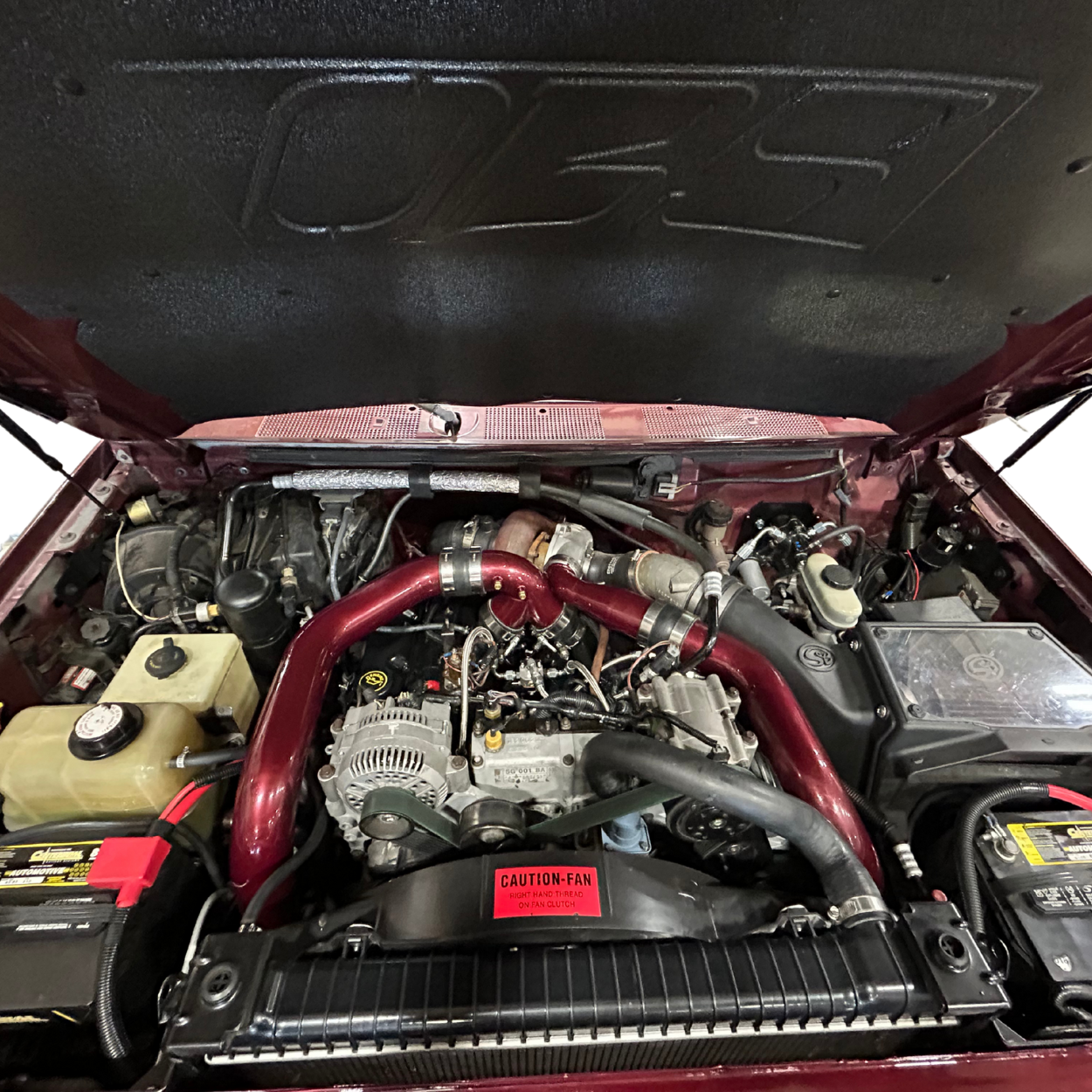

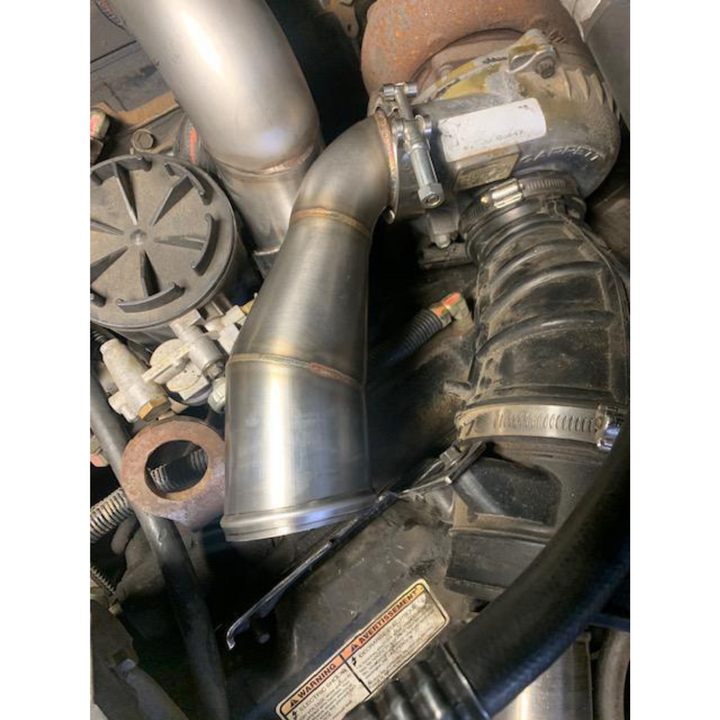

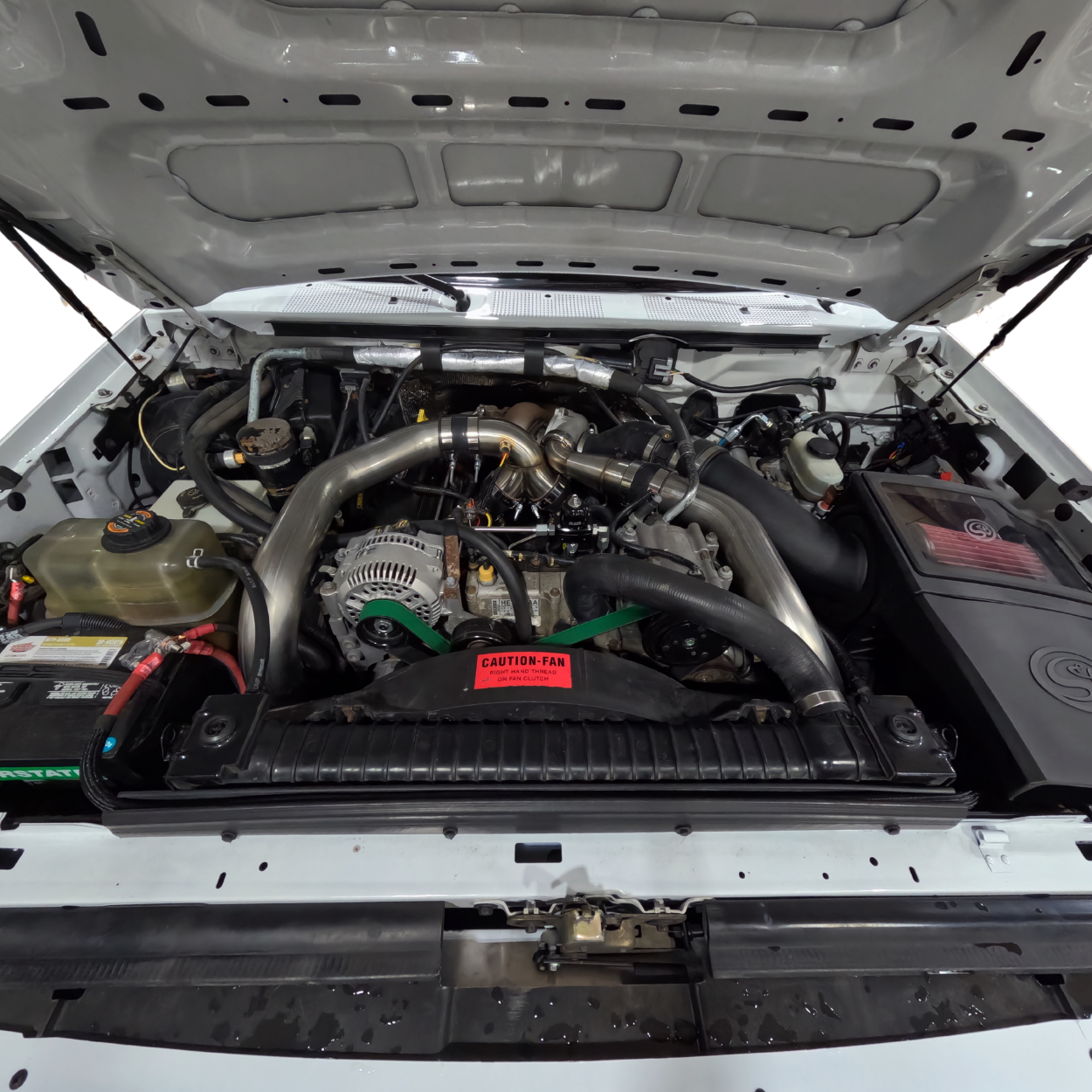

This kit allows you to run a '99-'03 7.3L Powerstroke Intercooler to your factory 7.3 engine without changing stock intake plenum or stock turbo or stock pedestal.  Pair this with our intercooler brackets and you have a complete intercooled OBS Ford.

*This kit works with CSF, and OEM 7.3 Intercoolers.

(NOTE) The CSF and facotry style intercoolers fit snuggly against the radiator brackets.

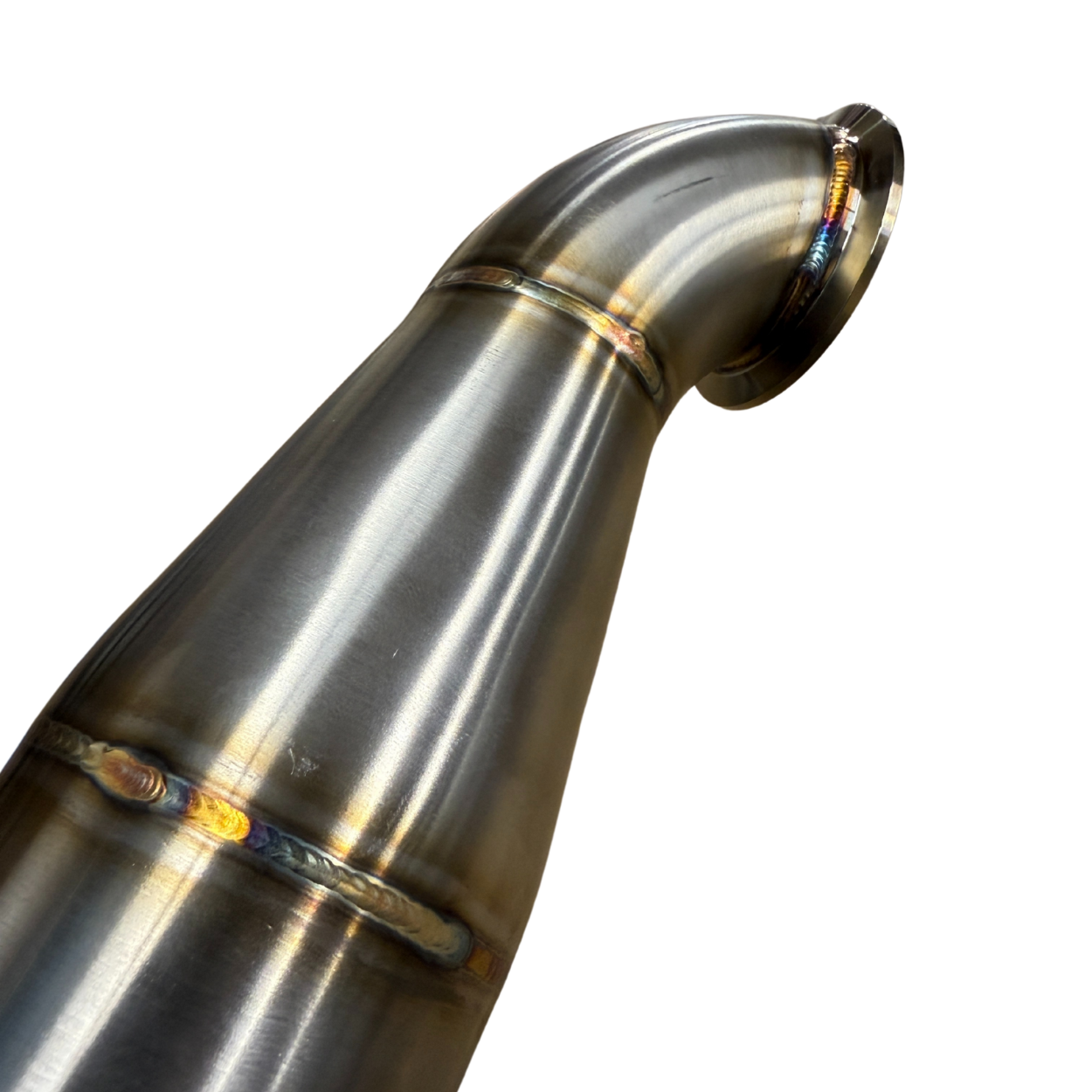

Piping and spider are all stainless and tig welded.  Was developed in conjunction with our intercooler mounts.

For those of you looking for performace data, here's some 3rd party dyno testing that was done on a 94-97 F-250 7.3 Powerstroke with 145k miles by Jacob White at Diesel World Magazine.

Data from a 3rd Gear, T/C locked pull. 45-70mph

Truck has a CSF 7.3 Intercooler, Obsession Diesel Performace Stock Turbo Piping Kit, OBS Solutions Mounting Brackets, 180/30 injectors, stock turbo with 1.0 housing, 3" downpipe/4" exhaust, DIY big filter intake

Before Intercooler
Peak EGT's 1633-degrees
Charge Air at 339-degrees (this is going into the cylinder heads)
Boost 28-psi
Fuel pressure drops to 32-psi and ICP held at 2800-psi, 2.6ms PW

After Intercooler (CSF)
Peak EGT's 1365-degrees
Charge Air at 106-degrees (less than a 5-degree swing from start of the run)
Boost at 24-psi
Fuel pressure drops to 32-psi, ICP at 2800-psi with 2.6ms PW

Other notable, with the IC installed, charge air temp averages around 25-35 degrees over ambient during daily driving. Without I/C this temp varies drastically.
