FORD-APBSDAC-001
-Aids in Superduty axle swaps by offering a solution for the panhard mount being in front-of-the-axle. (Instead of the factory 85-97 behind-the-axle mounts on 85-97 Dana 60's)
-Allows use of Superduty Dana 50/60 factory panhard mount
-Designed for 2-4" lifts, can work up to a 6" but we recommend our crossover panhard kit at that height.
-Larger lifts will need our Crossover Panhard and Crossover Steering kits.
Application:
-Truck: 92-97 Ford F-350 or Solid Axle Converted F-250 (Can be used with 80-91 trucks with some additional shimming / fabrication)
-Axle: 99-04 Ford Superduty Dana 50/60

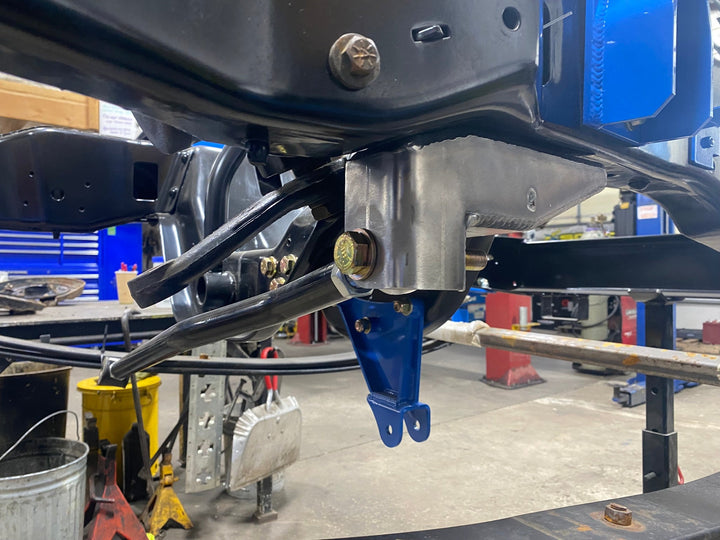

See pictures above for installation detail.

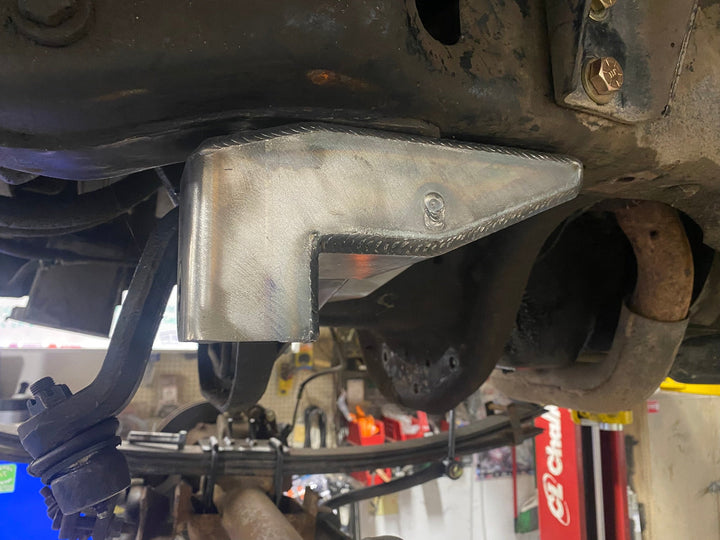

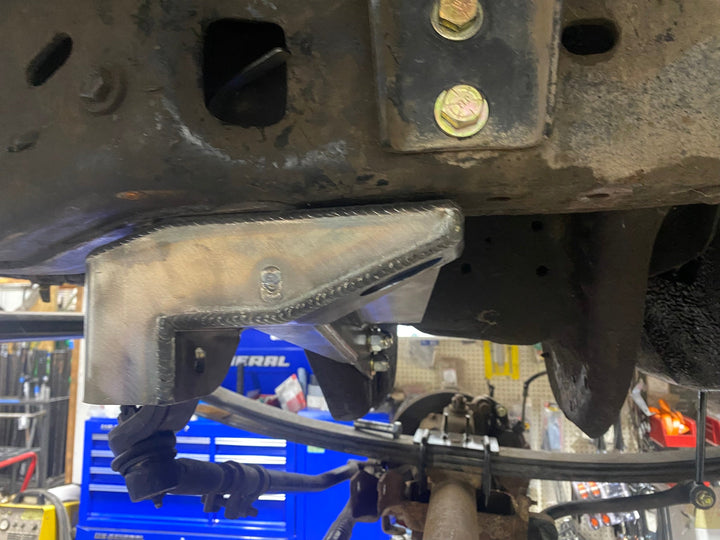

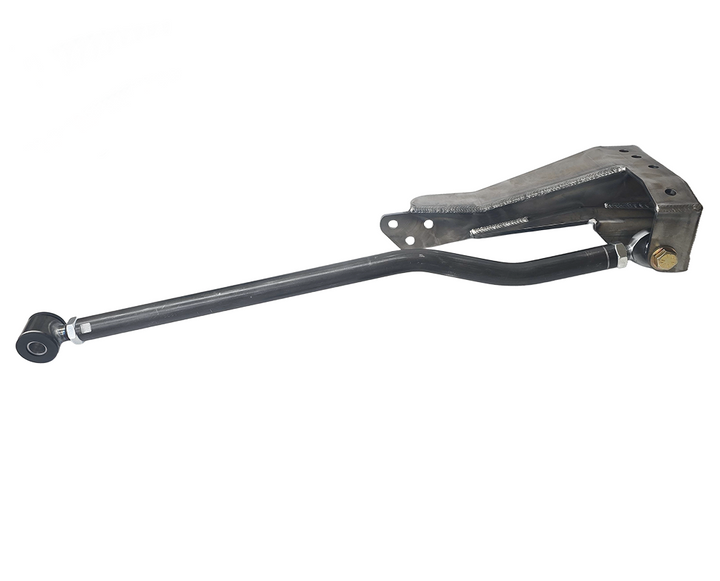

The bracket bolts on to the drivers side of the frame.
The brace supports and strengthens the bracket to the engine cradle cross member.

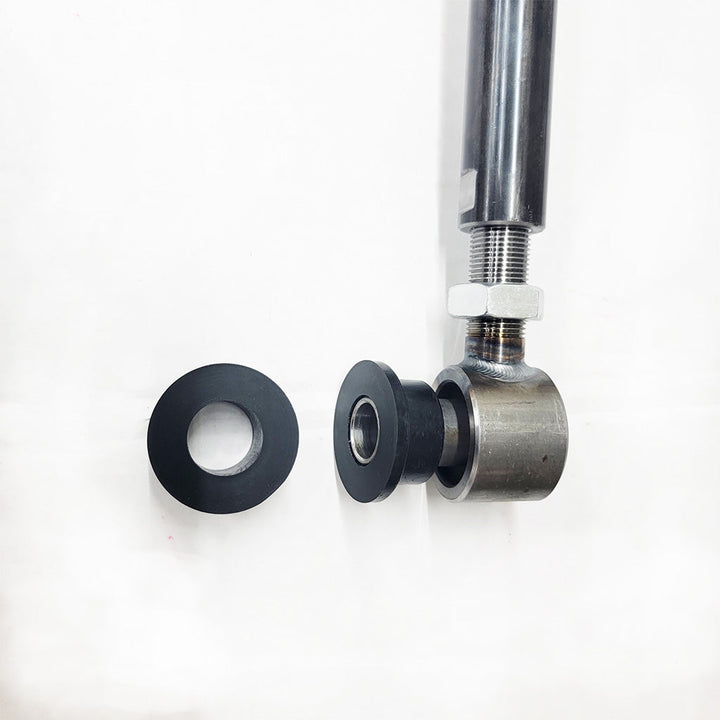

The formed bar connects the axle to the bracket.
In some instances you will need to clearance the cross member to clear the bar.
80-91 trucks- the frame on these trucks have an additional 1/4" layer of steel folded over on part of the bottom of the frame where this bracket attaches. The bracket needs a 1/4" shim made to mount it correctly.
