85-91 Ford F-250 / F-350 2" Front Shackle Reversal SUPER DUTY AXLE CONVERSION

Description:

• Adapts the much better riding 99-04 Superduty Springs
• Provides much better ride than stock by moving shackle to rear of spring.
• Eliminates the weak front shackle design.
• Levels truck by lifting 2" and allows use of 35's (minor trimming may be needed)

• NEW OPTION! 2wd -> 4wd frame plates. Put a Dana 60 in your 2wd!- This kit is designed for 4x4 trucks. Additional parts are necessary for a 2wd truck. The 2wd frame plates are designed to make mounting the spring hanger easier. There are no jigs available, so it will require measuring to properly locate.
• THIS KIT IS NOT INTENDED TO BE USED WITH TTB AXLES, DANA 60  IS REQUIRED.

Application:

• Truck: 85-91 F250 / F-350 4x4 or 2wd trucks.  *NOTE* Can be used on 80-91 F150/250/350 Bronco to swap in a solid axle. Bronco/F150 use 2wd kit
• Springs: 56" 99-04 Superduty Front Springs

• Axle: 99-04 F-350 Dana 50/60

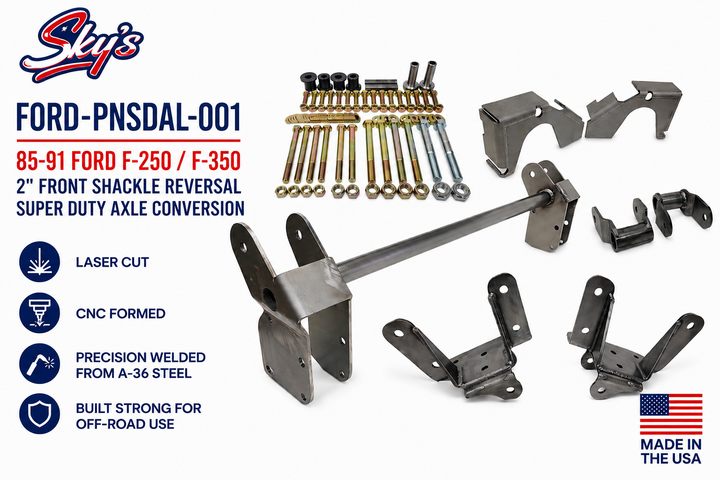

Included:

1 - Front Hanger
2 - Inner Frame Plates (Weld-on) NOT POWDER COATED
2 - Shouldered Frame Sleeve
2 - Shackles
4 - Bushing halves
2 - Bushing Sleeves
1 - Hardware Kit

Additional Information:

Check out Diesel World's Project Obsessed running Sky's FSR (RSK) Kit

FSRSD INSTALL

PROJECT OBSESSED

NOTE : Cheap, foreign aftermarket springs are not recommended. We have had issues with the military wrap leaf being way too large and contacting the hanger. This is not an issue with quality USA made springs.

• Lift amounts rated for V-Code 43-814 Springs 2C3Z-5310-HA

• X-Code 43-818 Springs will lift an extra 1.5"
• Clearance for intercoolers
• If you need help deciding what other parts you may need to complete your swap please CLICK HERE
• Part numbers and specs for Superduty Springs can be found online HERE
• Click HERE to purchase leaf springs or contact your local Ford Parts Center

 Instructions:

85-91 Pugnose (Bullnose) Instructions

Installation Notes:

Check out this great install write up on the bullnose forum https://www.garysgaragemahal.com/#nabble-td34173

Sway bar will need to be deleted, or will need end links extended. Our 3" Sway bar end link extensions are available here: 85-97 F-350 Sway Bar End Link Extensions

We have had a few customers with worn out spring bushings and sliders have issues with clearing the shackles on the 2" FSR kits with the military wrap. You need quality to spec parts to make this work.

Instructions for Replacing Leaf Spring Bushings and Isolators

It is common for the front frame horns to be spread due to age as the only thing holding the front of the frame together is the rivets at the engine cross member. You may need to pull the frame together to get the hanger on.

These trucks were not built to a high level of precision. Some of the rivet holes may need to be opened up with a die grinder as the holes may not line up perfectly.

When installing this kit with lift springs, the springs are often shorter than stock as they are re-arched stock springs to get more lift. We recommend drilling just one hole for the spring hanger and holding it in place with one bolt until you are able to set it down and check to see that the shackle angle is satisfactory. Then drill the remaining holes.
