460 7.5L Saginaw Steering Pump Upgrade

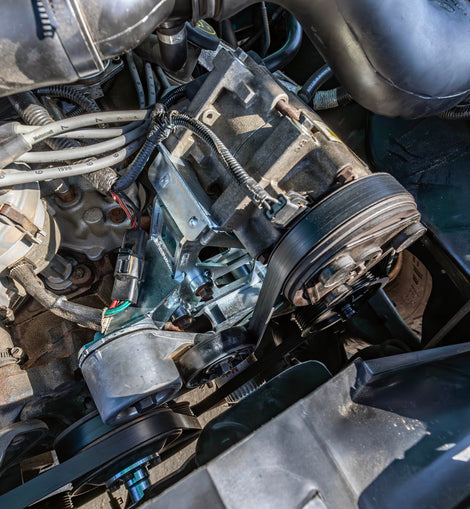

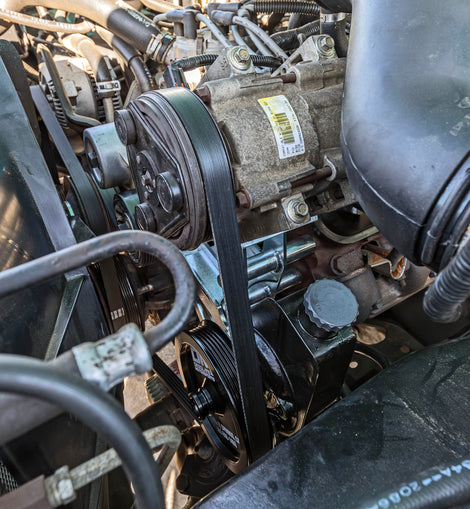

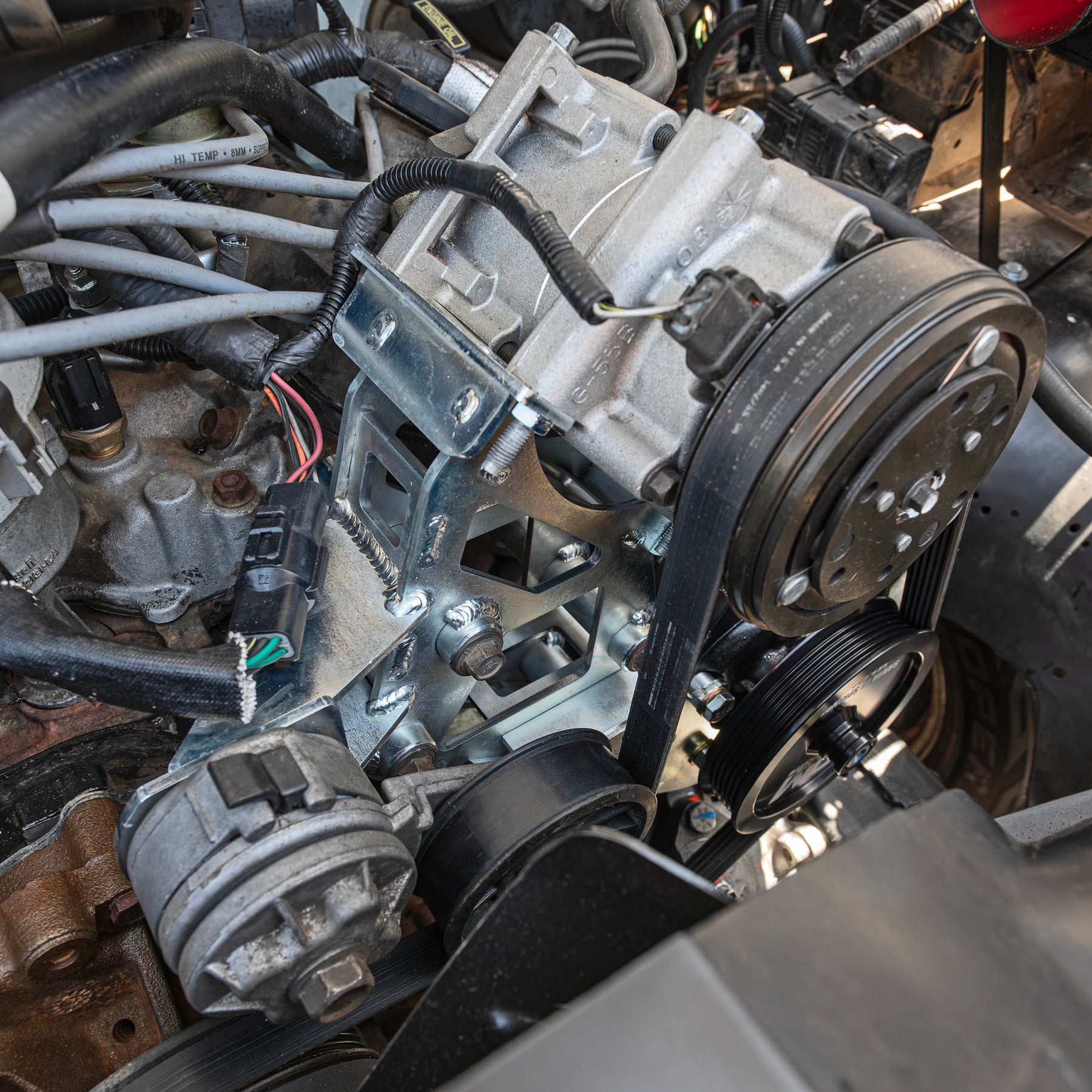

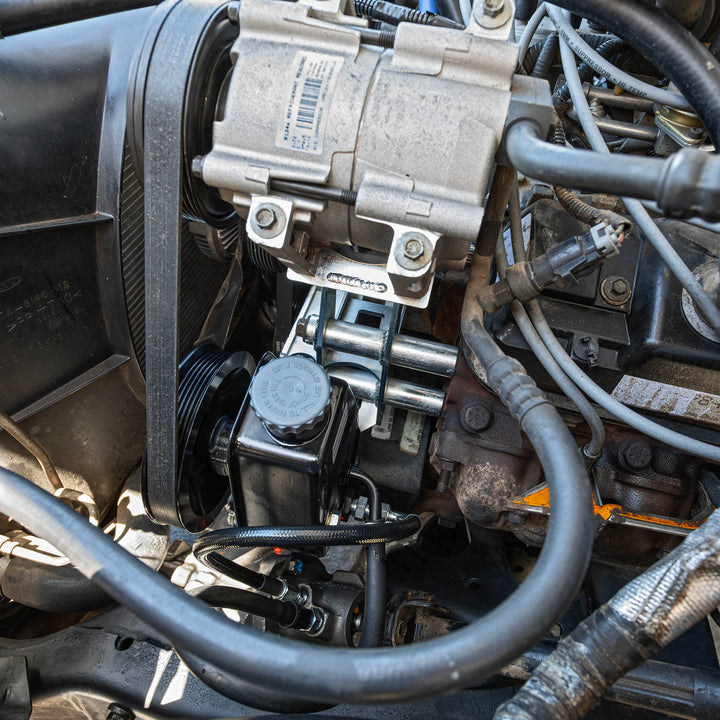

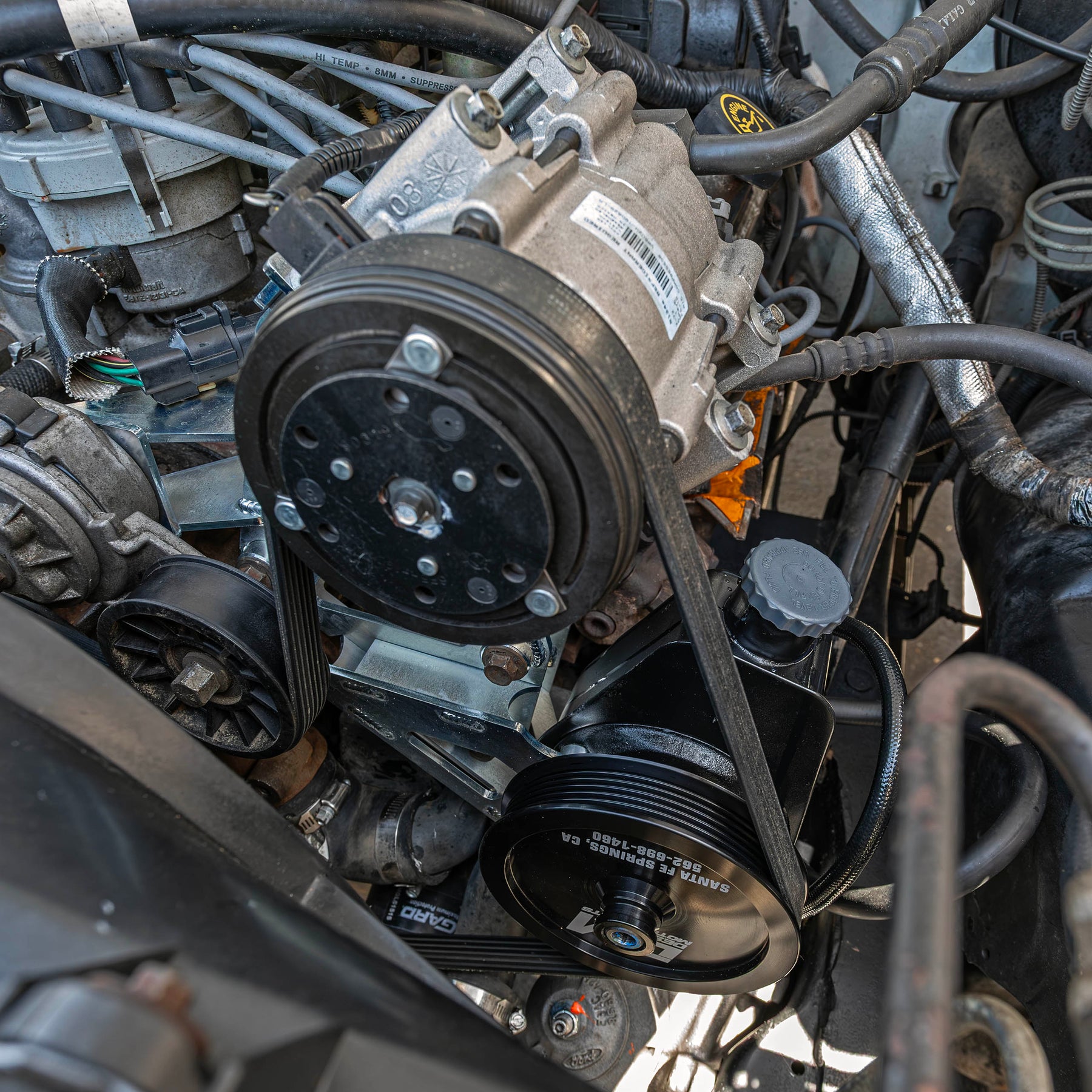

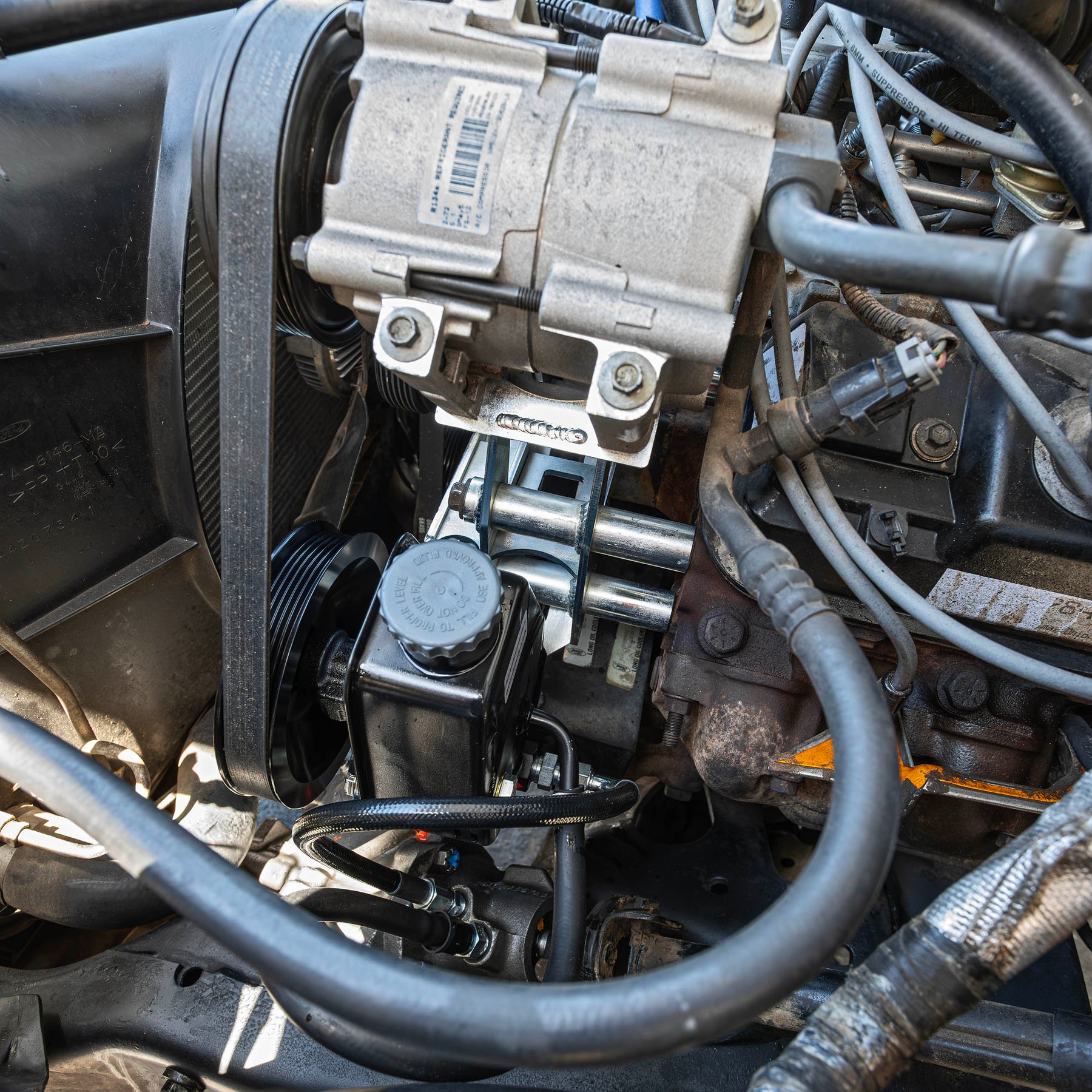

This completely new CAD designed, laser cut bracket is engineered to accept one of the best power steering pumps ever made! This is a complete replacement unit for your 7.5L 460 V8 that even accepts your factory air conditioning compressor and uses all your original mounting hardware. The Saginaw power steering pump is an all metal construction and boasts much higher operating pressures than your stock system. This is gonna give you the positive feel you've been looking for in your steering! We've included all necessary fittings, hoses, and a billet aluminum pulley to complete this easy installation. Only Use Power Steering Fluid, DO NOT USE ATF!

Note: THIS SYSTEM FITS 1989-1997 7.5L 460 F250/F350 SERPENTINE SYSTEMS ONLY!

Vehicle Fitment & Steering Box Identification:

Some 1997 model year trucks were equipped with a different steering gearbox than earlier OBS Ford models. The only difference in our kit application is the adapter fittings used at the steering box, so it is important to identify which version your truck has before ordering.

You can identify your steering box by looking at the top cover of the gearbox:

• “Normal” 2-Bolt Style:
  Features 2 bolts holding the top cap down with 1 adjustment screw in the center.

• 1997-Only 4-Bolt Style:
  Features 4 bolts holding the top cap down along with 1 adjustment screw in the center.

Please verify your steering box style prior to ordering to ensure the correct adapter fittings are included with your kit.

Please refer to our Install Guide Page for a most up to date installation guide.

Features:

• CAD Designed Fabricated Bracket
• 6061 Anodized Billet Aluminum Serpentine Pulley
• Easy Bolt On Installation
• Retains Factory A/C Compressor
• Retains all factory mounting hardware
