Description:

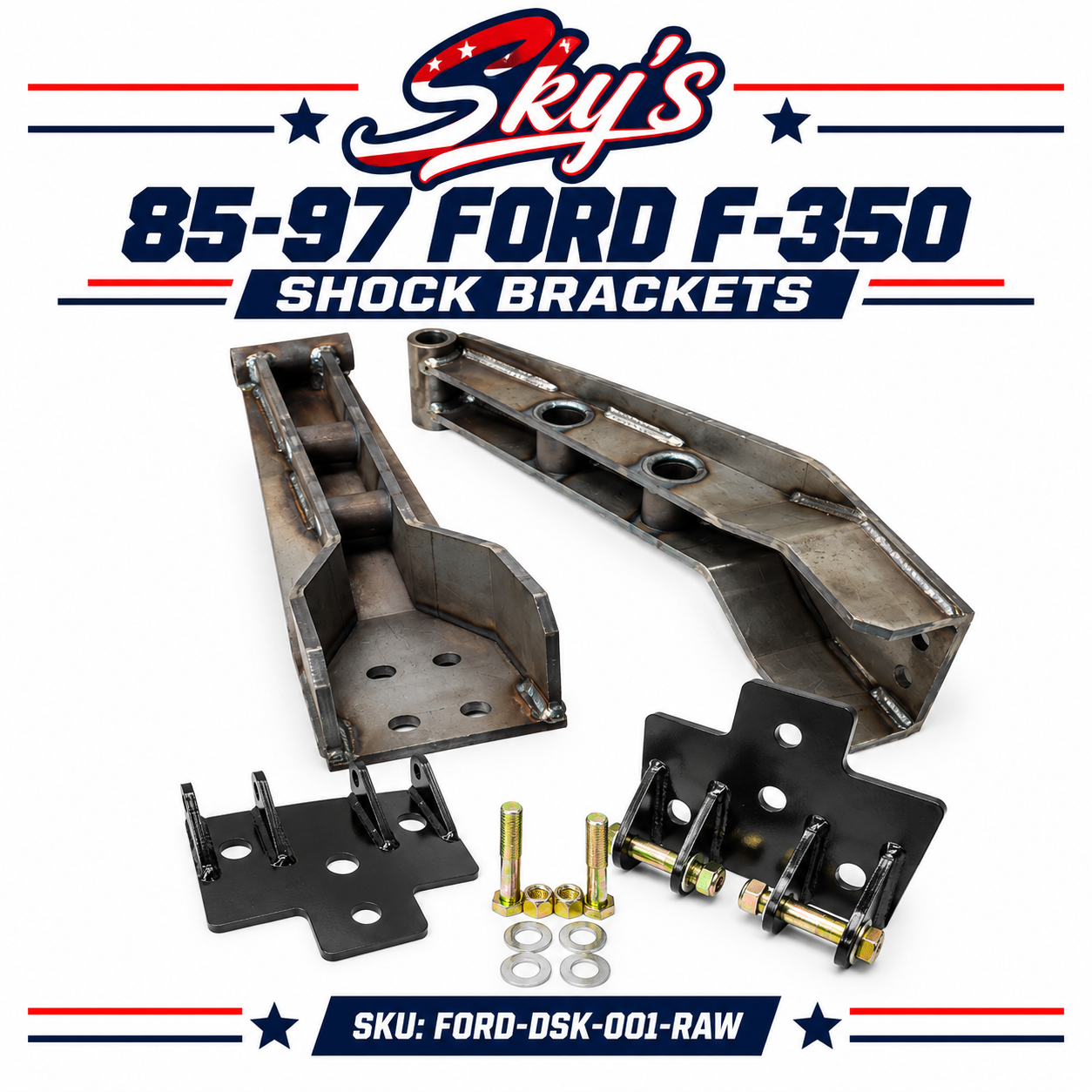

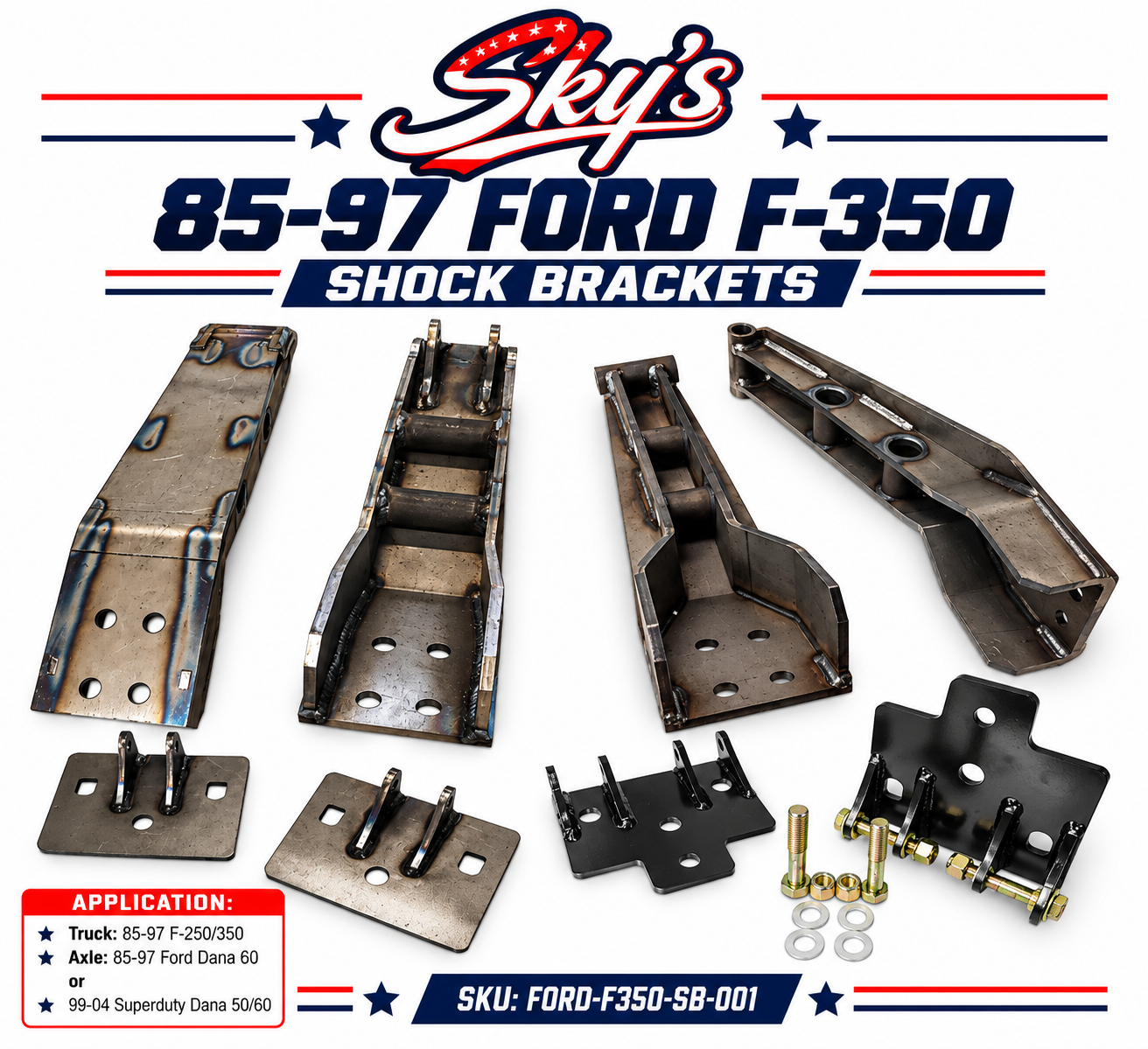

-Upper and lower shock mount brackets that allow the use of single or dual shocks on your OBS!
-Upper shock brackets can be paired with our crossover panhard conversion U-bolt plates (see picture).
Application:
-Truck: 85-97 F-250/350
-Axle: 85-97 Ford Dana 60
or
99-04 Superduty Dana 50/60
Additional Information:
THE BOTTOM DUAL SHOCK DRIVER SIDE BRACKET EAR WILL NEED TO BE TRIMMED IF YOU ARE USING A 2 LEAF PACK TO ALLOW THE BRACKET TO SIT FLUSH ON THE LEAF SPRING.
Upper Shock mounts fit the contour of the fender well. Add 1 inch of shock height over stock. Includes hardware to install shocks
Upper Dual Shock Mounts Accept an Eb1 style 5/8ths shock eye.
Upper Single Shock Mounts Accept 1/2" Shock eye
Lower brackets have 1/2" mounting bolts for the shocks.
Upper Dual Shock Mounts Fit shocks 2" or smaller in diameter.
Upper Single Shock Mounts Fit 2.5" or smaller in diameter.
Both Upper Mounts are 15" OAL
Purchase "kit" for both upper and lower shock mounts. Kit components are sold individually for customers fabricating their own companion parts.
If using this with our crossover panhard kit you will only need the upper brackets and our dual shock hardware kit.
Installation:
Upper brackets are direct bolt on for F-350 trucks with 4 bolt shock mounts. Can be adapted for F-250 trucks by re-drilling frame for 4 holes instead of 2. Allows to easily run dual shocks up front with the fabricated upper and lower shock mounts. to mount the upper shock mounts on Trucks with 2 bolt mounting holes or trucks that came factory with coil springs, you will measure 17.5" back from the back of the core support mount to find center for the front 2 holes of the 4 bolt shock mounts.
Kits Re-Uses factory hardware to install on frame and axle.
