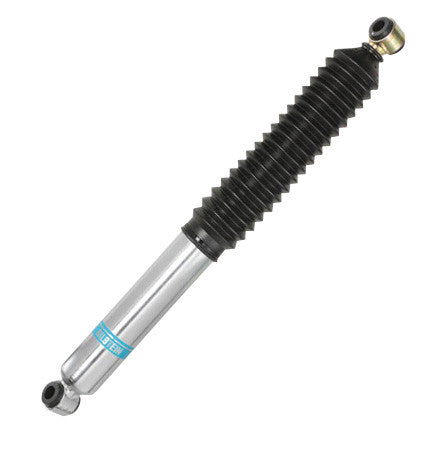

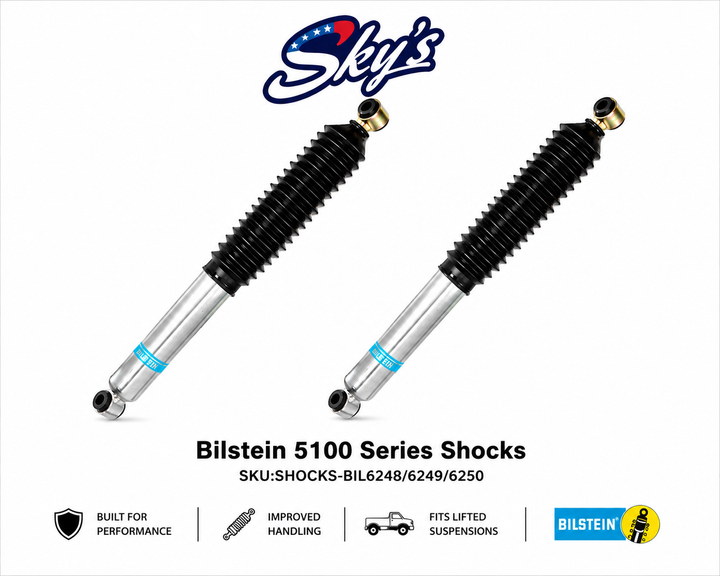

Bilstein 5100 Series Shocks

Description:

Shocks may or may not come with boots. 14" Bilstein shocks do not come with boots

Sold individually

Shock Sizes:

Bilstein 5100 Series Gas Shocks

        -6248-46mm Monotube Shock Absorber

            Extended Length (in): 25.93in
            Collapsed Length (in): 15.91in
            Travel- 10.04in

        -6559-46mm Monotube Shock Absorber

            Extended Length (in): 28.01in
            Collapsed Length (in): 17.00 in
            Travel- 11.00in

        -6249-46mm Monotube Shock Absorber

            Extended Length (in): 29.70in
            Collapsed Length (in): 17.91 in
            Travel- 11.94in


        -6250-46mm Monotube Shock Absorber

            Extended Length (in): 34.9in
            Collapsed Length (in): 20.75in
            Travel- 14.15in

Ford 85-97 Sizing:

*You will need to measure if you have a crossover panhard kit as it moves the shock mount up 4"

(10" travel front/rear) 2" lift in the front with factory rear height 4wd F-250/350

(12" travel front/rear) 4" lift in the front with leveled rear 4wd F-250/350

(14" travel front/rear) 6" lift in the front with leveled rear 4wd F-250/350

Additional Information:

Bilstein 5100 Series Gas Shocks

The Bilstein 5100 Series shock absorber is designed for specific manufactured lift kits utilizing the stock O.E.M. mounting configuration. It features Bilstein's superior single tube high gas pressure design for consistent fade-free performance and long life. Bilstein's patented self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed.

*Self-adjusting deflecting disc valving
*Use with lift kits utilizing the stock OEM mounting configuration
*Independent rebound and compression tuning
*Superior control for large diameter tires
