Name: Ford Dana 60 Front U-Bolt Flip Kit
Brand: Sky's Offroad Design
SKU: FORD-D60SPK-001-NOshockmounts
Price: 144.7 EUR
Availability: InStock

€144,70

Shipping calculated at checkout.

SKY parts are built to order and may take up to 2 weeks to ship.

Shock Mount Option

No shock mounts

Add shock mounts.

Axle Year

85-97

99-04

Description:

-Simple and effective Heavy Duty U-bolt and plate flip kit.

-Cleans up brackets hanging below the axle for aesthetics or keeps from catching on obstacles.

Application:

-Axle: 85-97 Ford Dana 60 or 99-04 Ford Superduty Dana 50/60

- Springs: Kit is designed around lift spring packs 3". Shorter and taller leaf packs will require special length U-bolts which we do not offer and will have to be sourced locally.

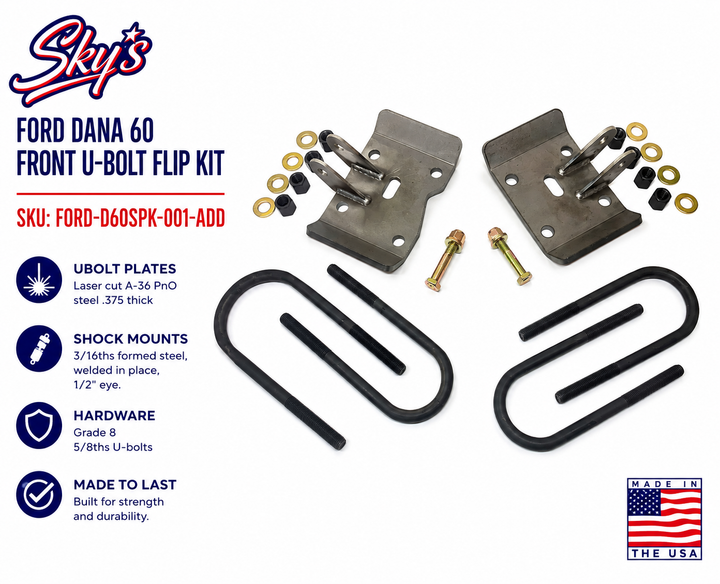

Additional Information: Shock mounts are 3/16ths formed steel, welded in place, 1/2" eye.

Installation:

Requires notching of differential housing lower web to maintain u-bolt and cutting off the factory panhard mount.

Will need to modify the factory panhard mount if retaining the stock panhard bar.

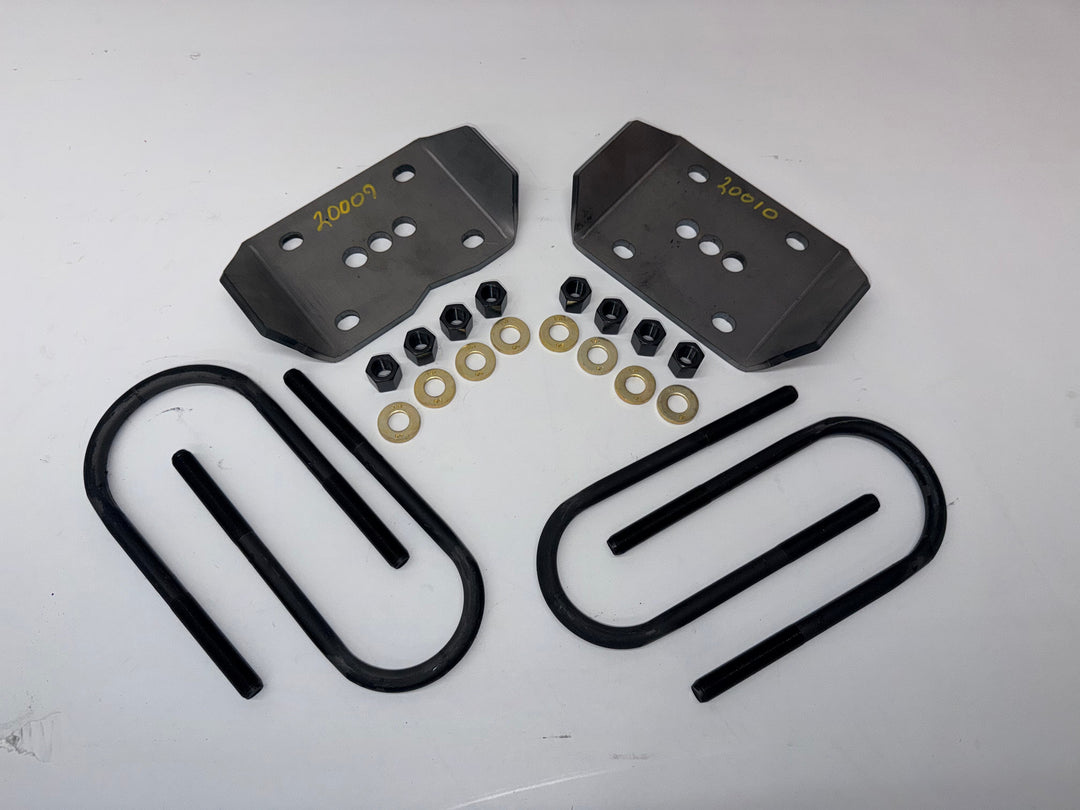

Parts Included:

3 5/8-20-3" Round 9.5" U-bolt
1 5/8-20-4" Round 9.5" U-bolt
1 Driver Plate with Shock Mount
1 Passenger Plate with Shock Mount
8 5/8 Thick Flat Washers
8 5/8 hi-nuts
2 1/2-20x3" Bolt
2 1/2" 20 Nylock nut
4 1/2" Flat Washer

[{"id":45128794276034,"title":"No shock mounts \/ 85-97","option1":"No shock mounts","option2":"85-97","option3":null,"sku":"FORD-D60SPK-001-NOshockmounts","requires_shipping":true,"taxable":true,"featured_image":{"id":43167812321474,"product_id":8081477173442,"position":4,"created_at":"2025-10-27T12:16:12-07:00","updated_at":"2025-10-27T12:16:14-07:00","alt":null,"width":1024,"height":1024,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/269_1341946644.jpg?v=1761592574","variant_ids":[45128794276034]},"available":true,"name":"Ford Dana 60 Front U-Bolt Flip Kit - No shock mounts \/ 85-97","public_title":"No shock mounts \/ 85-97","options":["No shock mounts","85-97"],"price":14470,"weight":9072,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":34740260634818,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/269_1341946644.jpg?v=1761592574"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45128794308802,"title":"No shock mounts \/ 99-04","option1":"No shock mounts","option2":"99-04","option3":null,"sku":"FORD-SD60UBF-001-NOshockmounts","requires_shipping":true,"taxable":true,"featured_image":{"id":43167811436738,"product_id":8081477173442,"position":2,"created_at":"2025-10-27T12:15:31-07:00","updated_at":"2025-10-27T12:15:33-07:00","alt":null,"width":792,"height":524,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/SD_Ubolt_Flip_0862b4a6-70e4-4e21-a0c3-7176d5db81e1.jpg?v=1761592533","variant_ids":[45128794308802]},"available":true,"name":"Ford Dana 60 Front U-Bolt Flip Kit - No shock mounts \/ 99-04","public_title":"No shock mounts \/ 99-04","options":["No shock mounts","99-04"],"price":14470,"weight":9072,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":34740259750082,"position":2,"preview_image":{"aspect_ratio":1.511,"height":524,"width":792,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/SD_Ubolt_Flip_0862b4a6-70e4-4e21-a0c3-7176d5db81e1.jpg?v=1761592533"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45128794341570,"title":"Add shock mounts. \/ 85-97","option1":"Add shock mounts.","option2":"85-97","option3":null,"sku":"FORD-D60SPK-001-ADDshockmounts","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ford Dana 60 Front U-Bolt Flip Kit - Add shock mounts. \/ 85-97","public_title":"Add shock mounts. \/ 85-97","options":["Add shock mounts.","85-97"],"price":17734,"weight":9525,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45128794374338,"title":"Add shock mounts. \/ 99-04","option1":"Add shock mounts.","option2":"99-04","option3":null,"sku":"FORD-SD60UBF-001-ADDshockmounts","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ford Dana 60 Front U-Bolt Flip Kit - Add shock mounts. \/ 99-04","public_title":"Add shock mounts. \/ 99-04","options":["Add shock mounts.","99-04"],"price":17734,"weight":9525,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":45128794276034,"title":"No shock mounts \/ 85-97","option1":"No shock mounts","option2":"85-97","option3":null,"sku":"FORD-D60SPK-001-NOshockmounts","requires_shipping":true,"taxable":true,"featured_image":{"id":43167812321474,"product_id":8081477173442,"position":4,"created_at":"2025-10-27T12:16:12-07:00","updated_at":"2025-10-27T12:16:14-07:00","alt":null,"width":1024,"height":1024,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/269_1341946644.jpg?v=1761592574","variant_ids":[45128794276034]},"available":true,"name":"Ford Dana 60 Front U-Bolt Flip Kit - No shock mounts \/ 85-97","public_title":"No shock mounts \/ 85-97","options":["No shock mounts","85-97"],"price":14470,"weight":9072,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":34740260634818,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/obssolutions.net\/cdn\/shop\/files\/269_1341946644.jpg?v=1761592574"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Returns and Refunds

We accept product returns within 30-days after you have received your order. All returns are subject up to a 20% restocking fee after approval.
