Name: 80-96 Ford F-150/Bronco 4x4 SAS Kit
Brand: Sky's Offroad Design
SKU: FORD-SAS-BF150-36.5-OBS-4
Price: 657.0 USD
Availability: InStock

$657.00

Shipping calculated at checkout.

Axle Spring Perch Center

36.5" Width (80-97 F-350)

37.5" Width (99-04 F-250/350)

Leaf Spring

92-97 F-250/350

99-04 F-250/350

Lift Height

4"

2"

In stock, ready to ship
.

Description

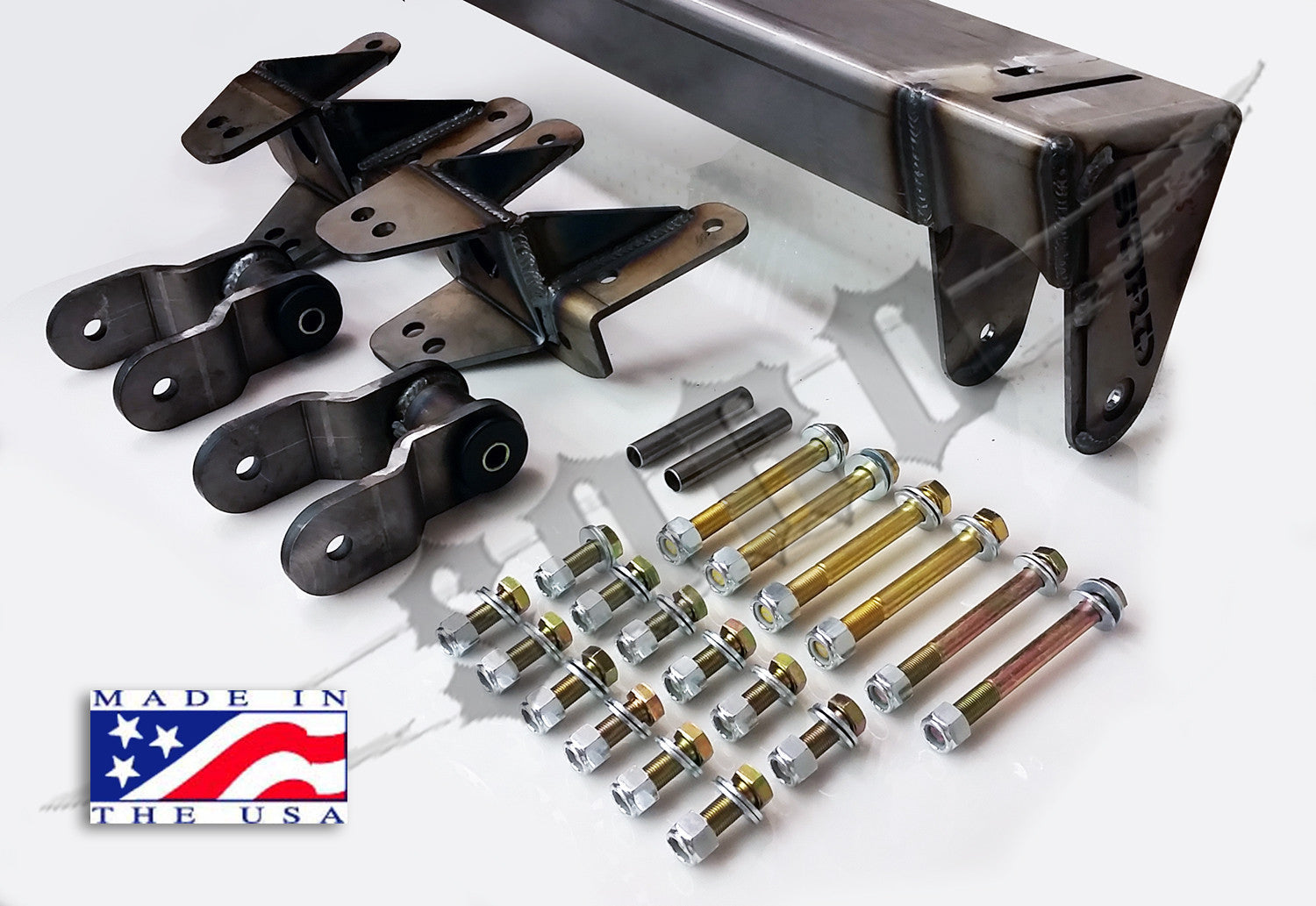

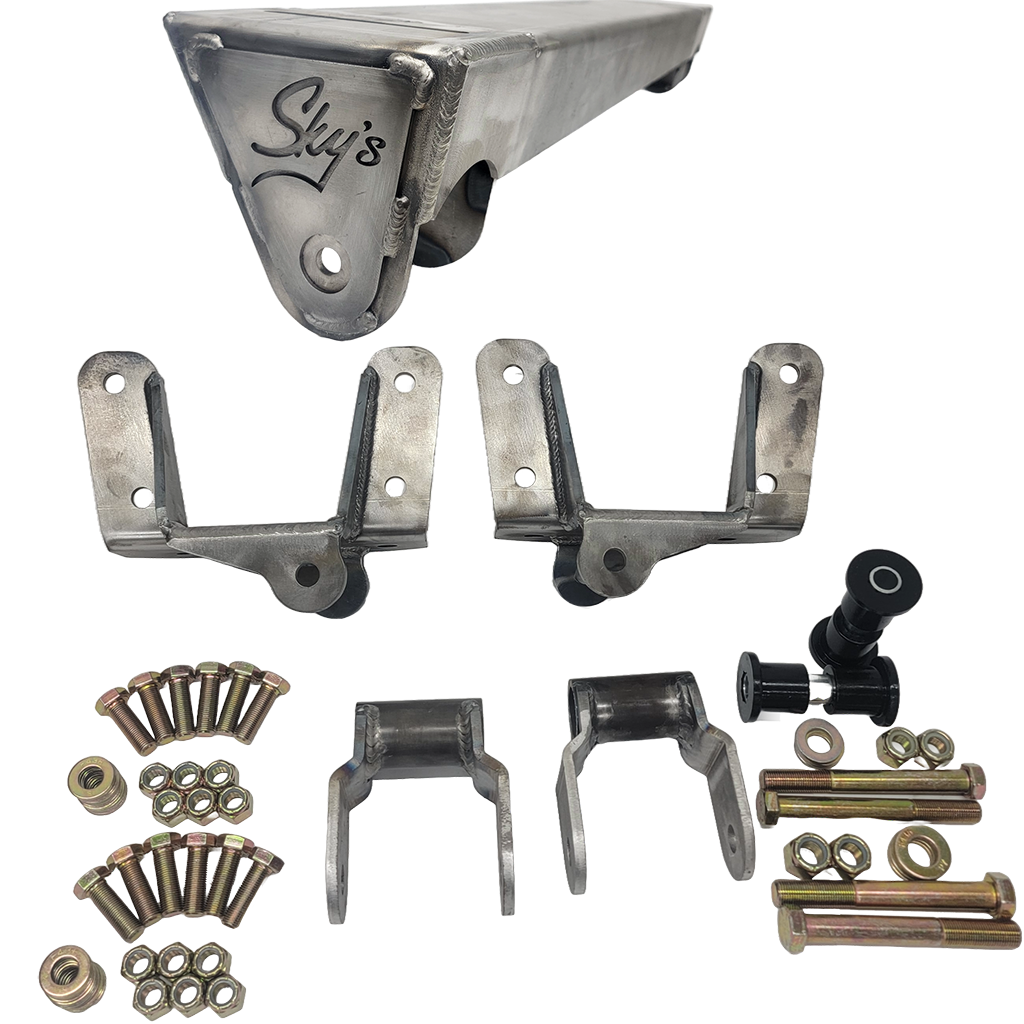

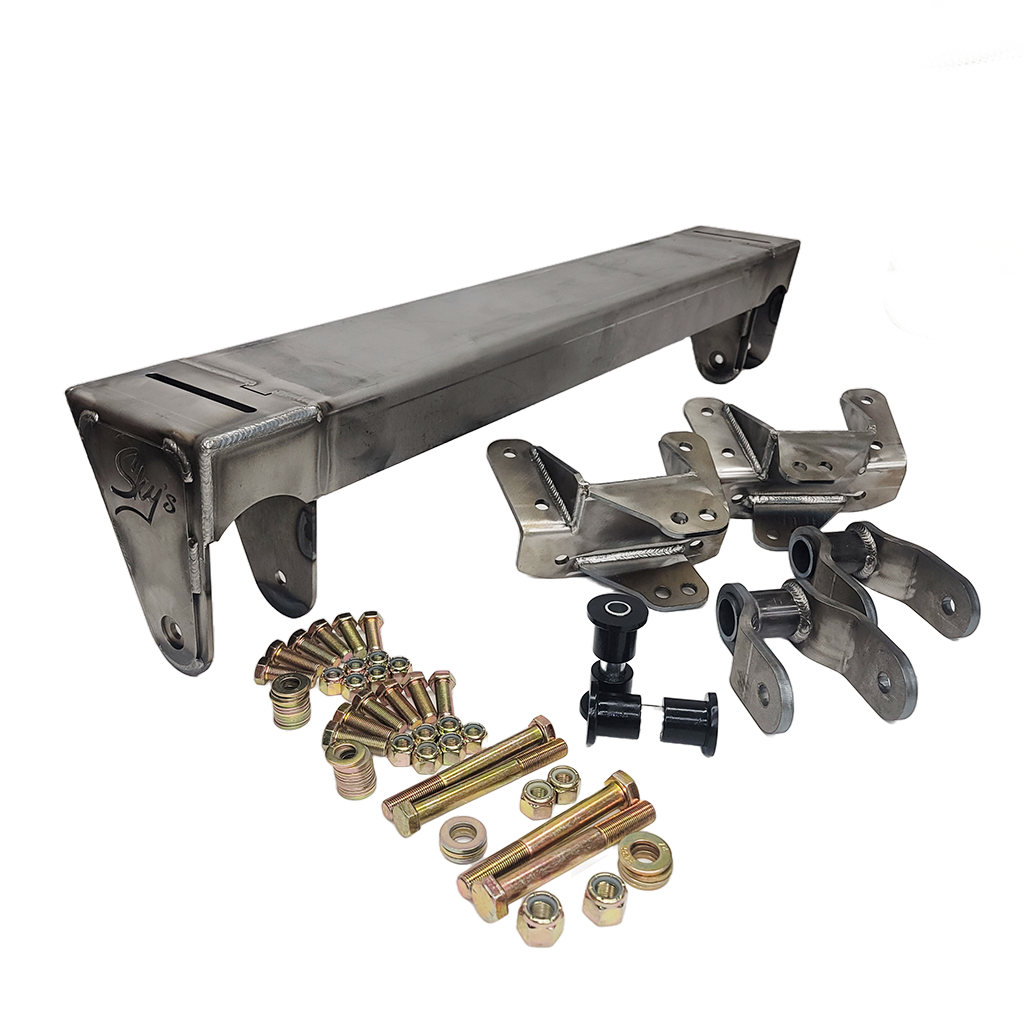

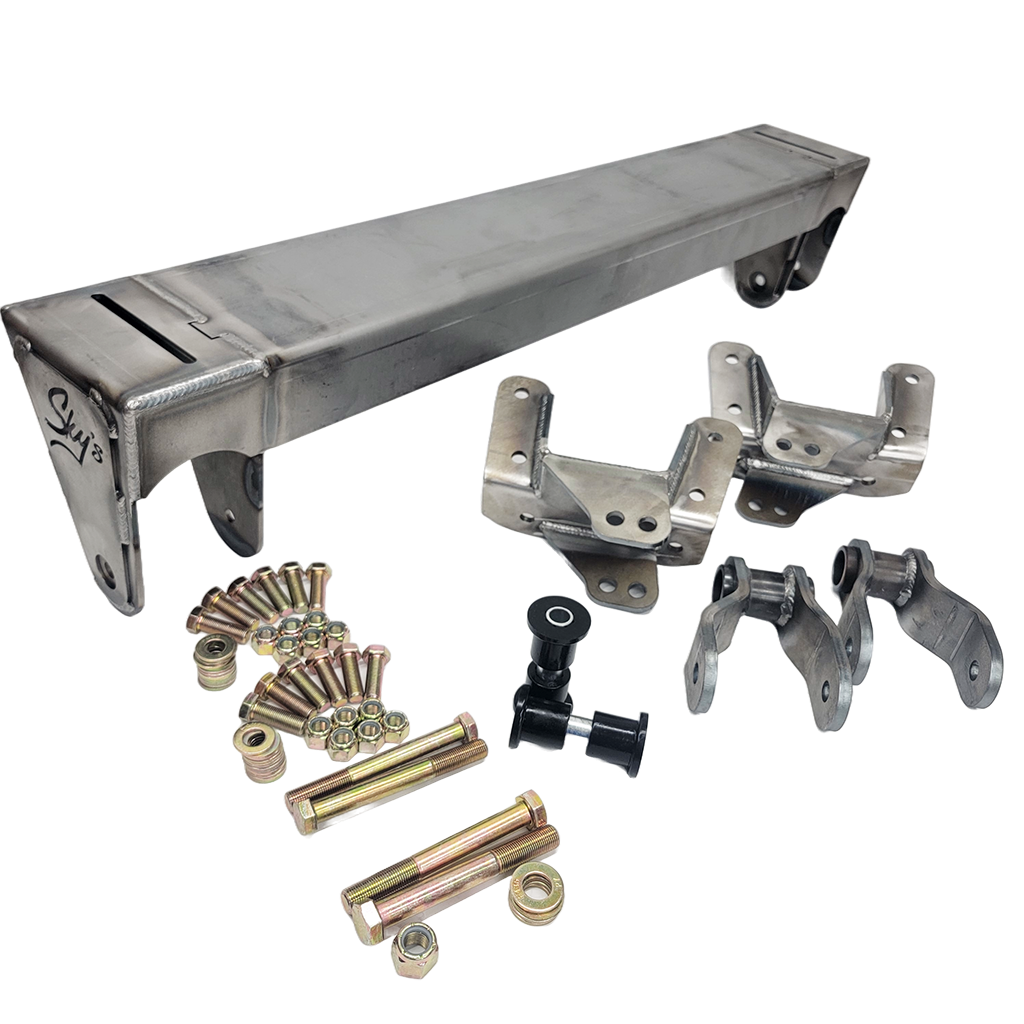

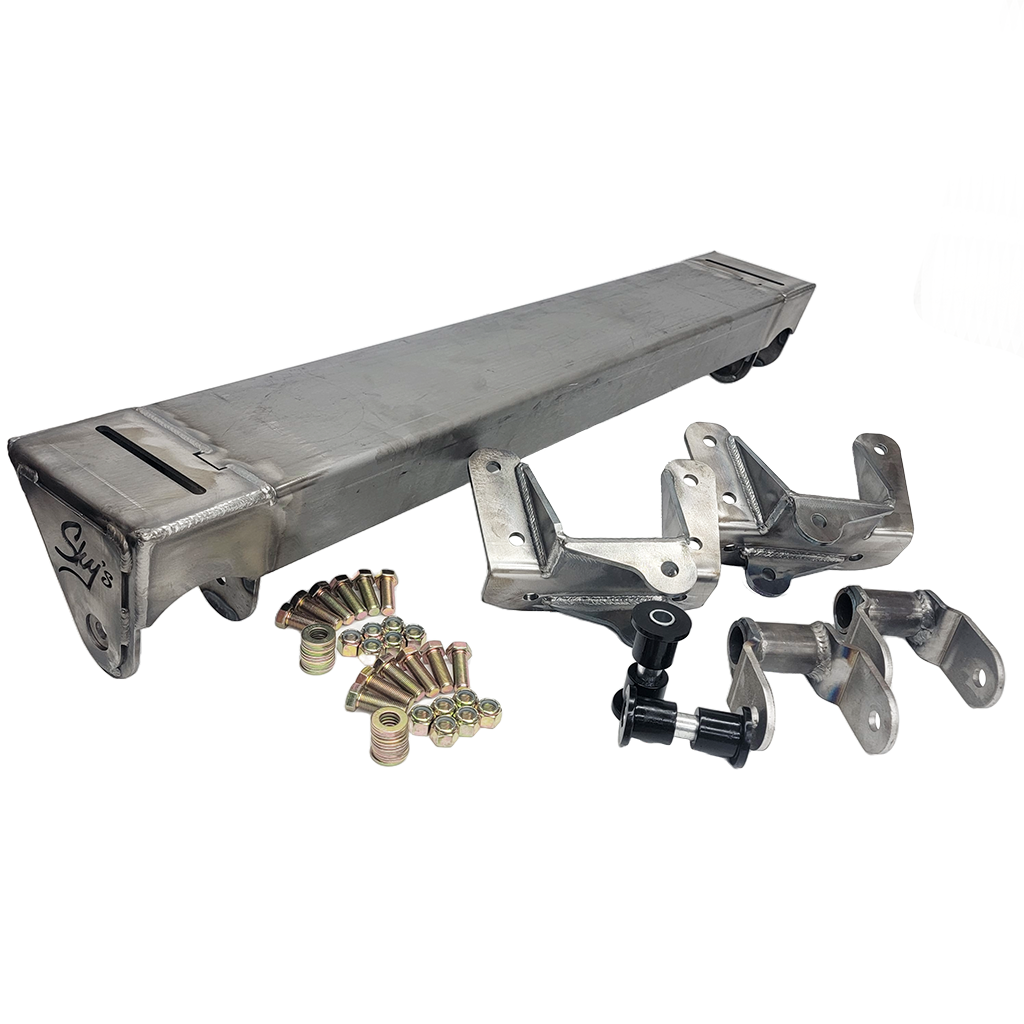

DIY Leaf Spring Solid axle conversion for the 80-96 era Ford F-150 and Bronco coil sprung TTB (Twin Traction Beam) 4x4 trucks.
Kit is weld on, requires knowledge of suspension design and fabrication/welding skills.
Now available in both 2" and 4". (Based off a stock height F-350 4x4) Depending on springs used, with a Dana 60 (or 99-04 Dana 50) this should be approximately 4 or 6" lift over a stock F-150/Bronco using stock gasser Ford springs.

Application:

- Truck: 80-96 F150/Bronco
- Springs: 85-97 52" F-350 Front Springs or 99-04 56" Front F-250/350 Springs
- Axle: 85-97 Ford F-350 Dana 60 36.5" Spring Pin Center
or
99-04 Super Duty Dana 50/60 37.5" Spring Pin Center

Additional Info:

Can use a Dana 44 F-250 axle with spring pads moved to correct width and converted to 5 lug f-150 outer components to keep the factory rear axle.

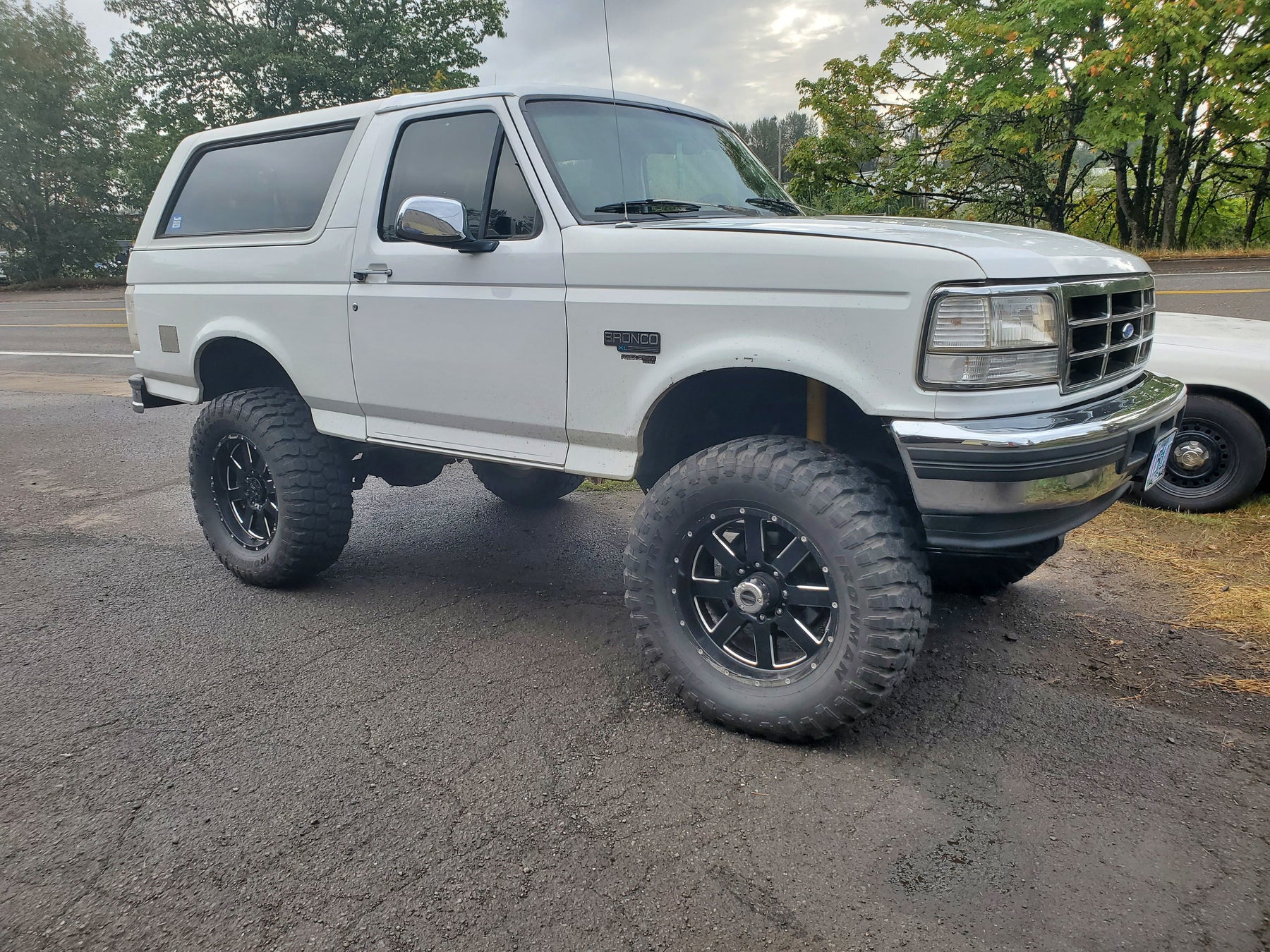

Bronco / F-150 will sit approximately 4" over stock height on stock OBS springs, may be taller on SD springs.
Part numbers and specs for Superduty Springs can be found HERE

Installation

FORD-SAS-BF150 Instructions
