92-97 05+ Coil Spring Swap Panhard Bracket

NEW ADJUSTABLE DESIGN!

The strongest, most feature packed Super Duty Axle Swap Panhard Bracket

• Six Position adjustable
• Gives 3.5" of up-travel at stock ride height (as much as a stock new truck)
• Designed in conjunction with stock Superduty trucks to mimic factory geometry
• Box braced design to spread load evenly among the bracket.

We highly recommend our Adjustable Panhard (Track) bar. It converts the ball joint on the axle to a vertically mounted heim and is formed to clear the engine crossmember without modification.

The bracket was designed to clear with full lock steering, hug around the diff for maximum up travel, and align the pan hard bar with the axle.

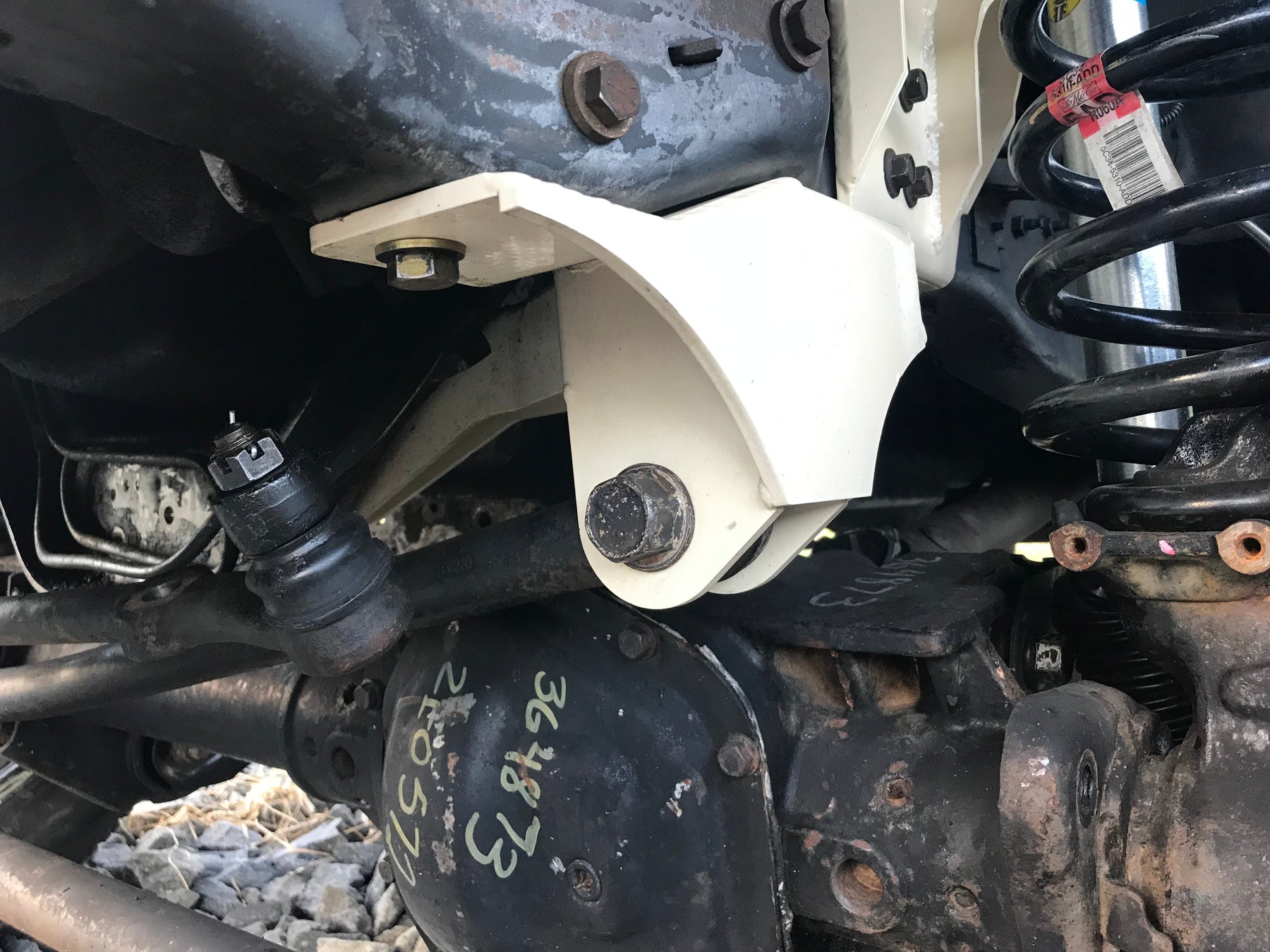

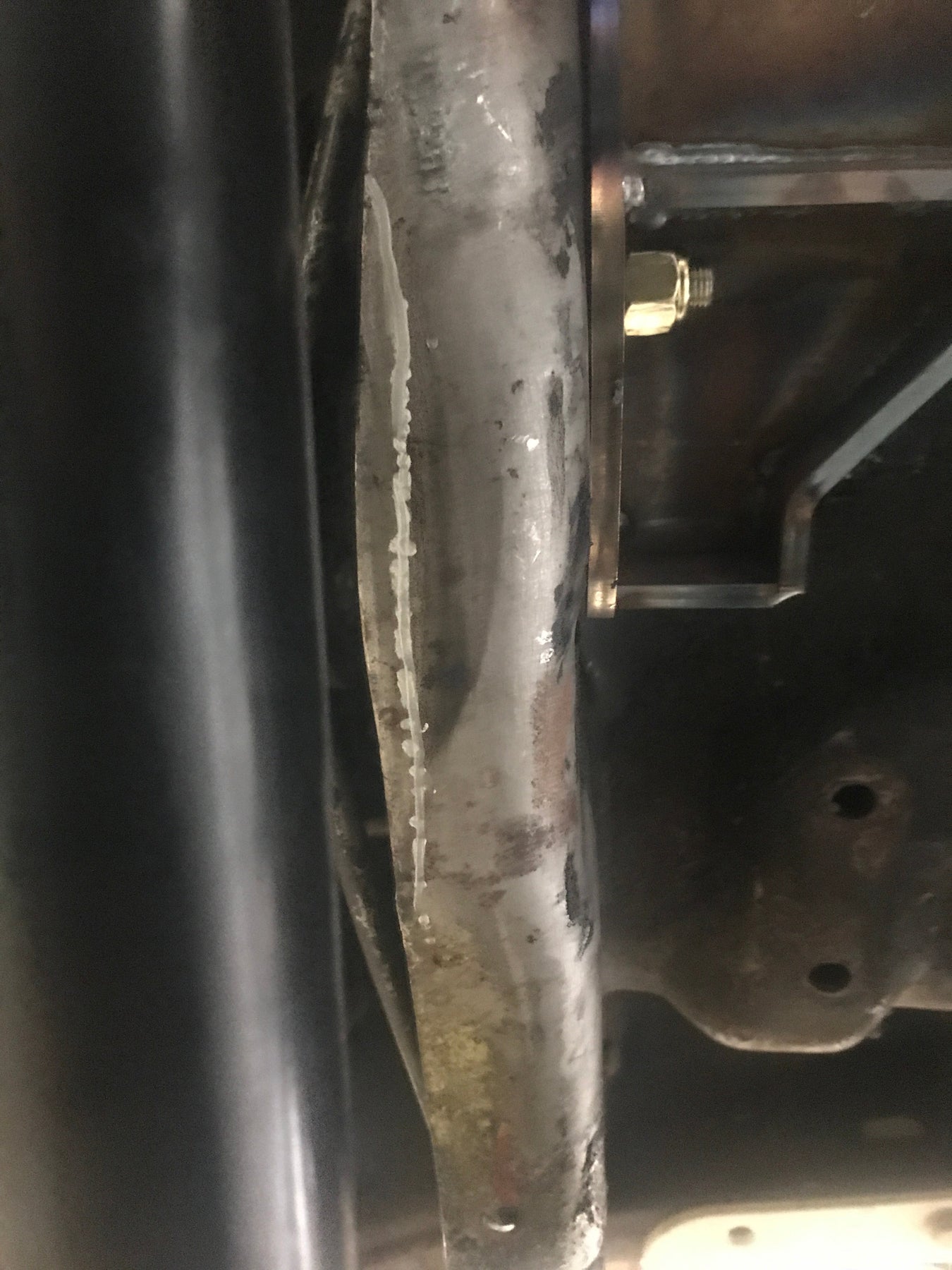

There is excess material on front corner of the engine cradle that is easily trimmed with a hand grinder for clearance.

(Please see picture for example of amount needed trimmed with ICON Adjustable Bar)

-Will require very minor trimming on the cradle for stock panhard bar or aftermarket Super Duty adjustable bar.
