92-96 Bronco / F150 Fuse Panel Relocation Bracket

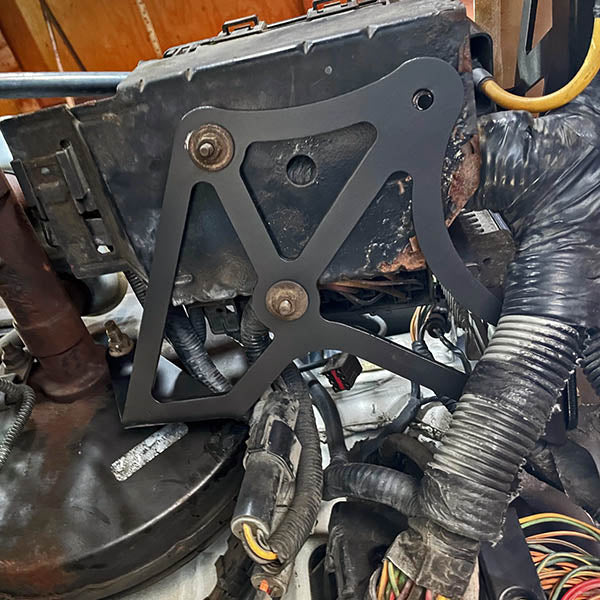

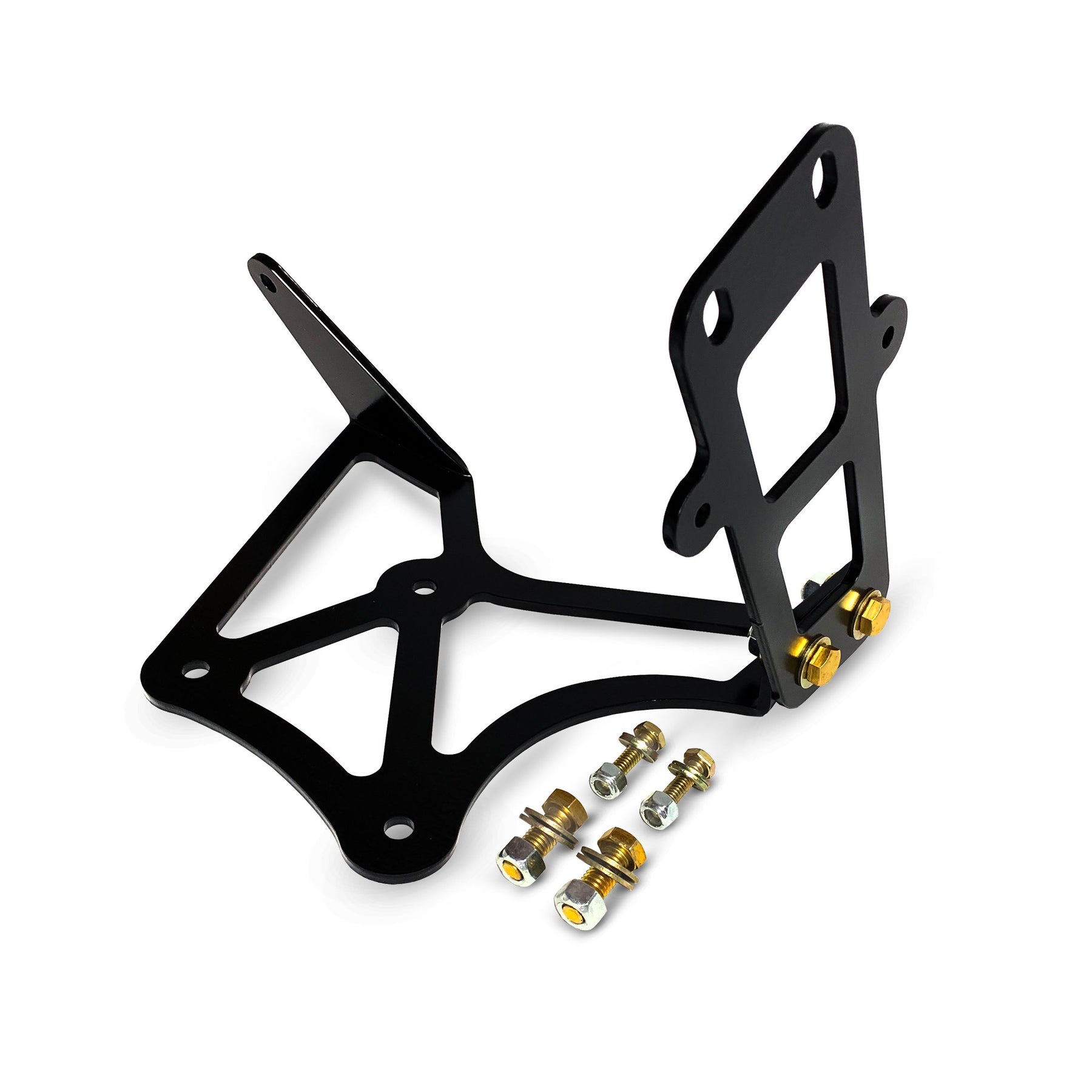

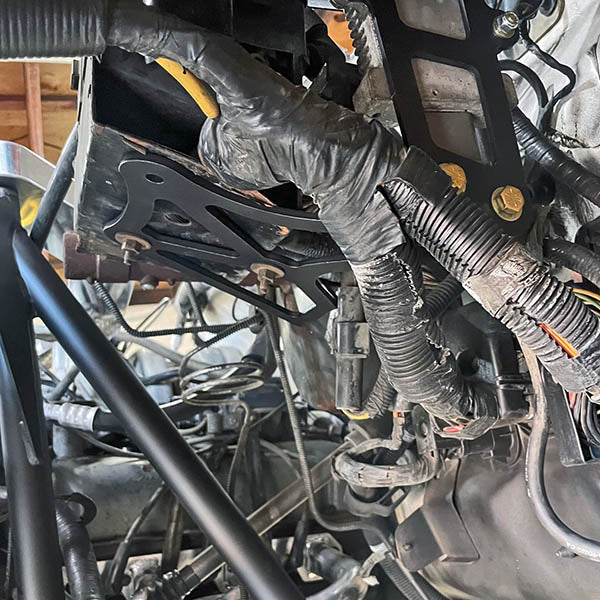

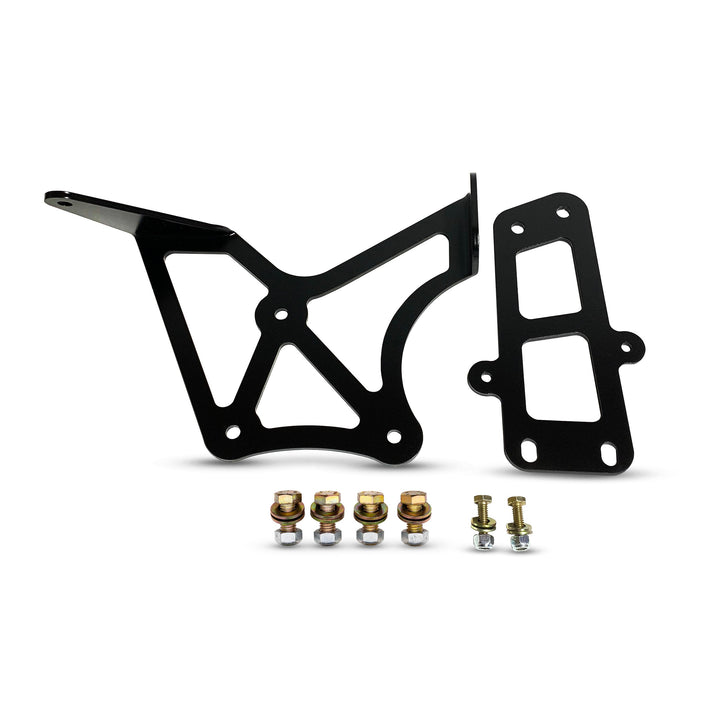

If you've ever mounted fiberglass fenders on a Bronco or F150, you are probably familiar with some of the associated issues. One of the big ones is loss of inner fender wells where a lot of vital factory electrical components attach. This new fuse panel relocation bracket will help tremendously! It not only moves the fuse panel up much higher keeping it clear from the tire, it is completely supported with out inner fender wells. Simple bolt on design uses factory holes meaning no drilling required and also allows for the ICM to be bolted to it.

Note: This bracket was not designed to retain cruise control. If you choose to run cruise control module it will need to be relocated elsewhere. We have used this bracket on trucks with stock fenders but you will need to do additional modification to air box support tray to allow wiring to be pulled up. Also if factory hood / hood hinges are being used sometimes slight manipulation will need to be done to make sure everything clears. We know for sure this product fits 92 to 96 broncos and f150's we have not test fit it on earlier.
