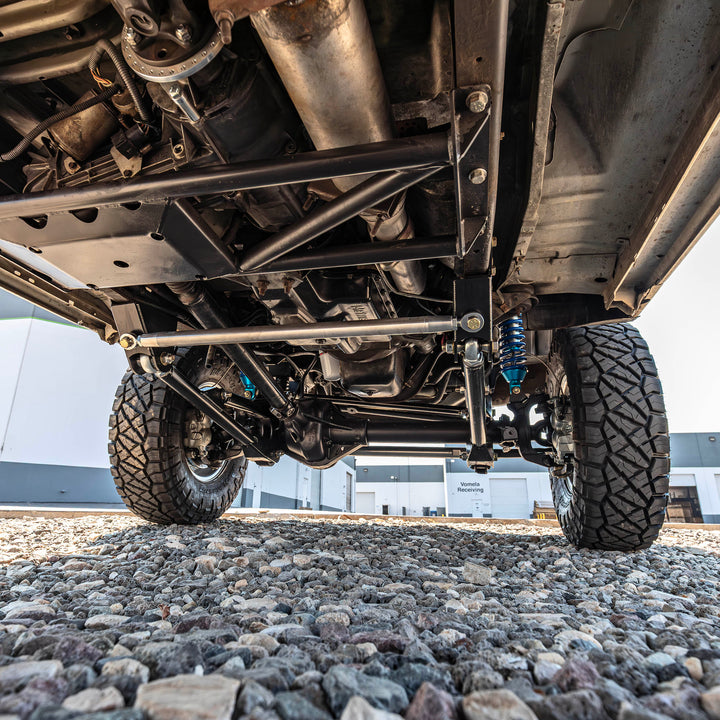

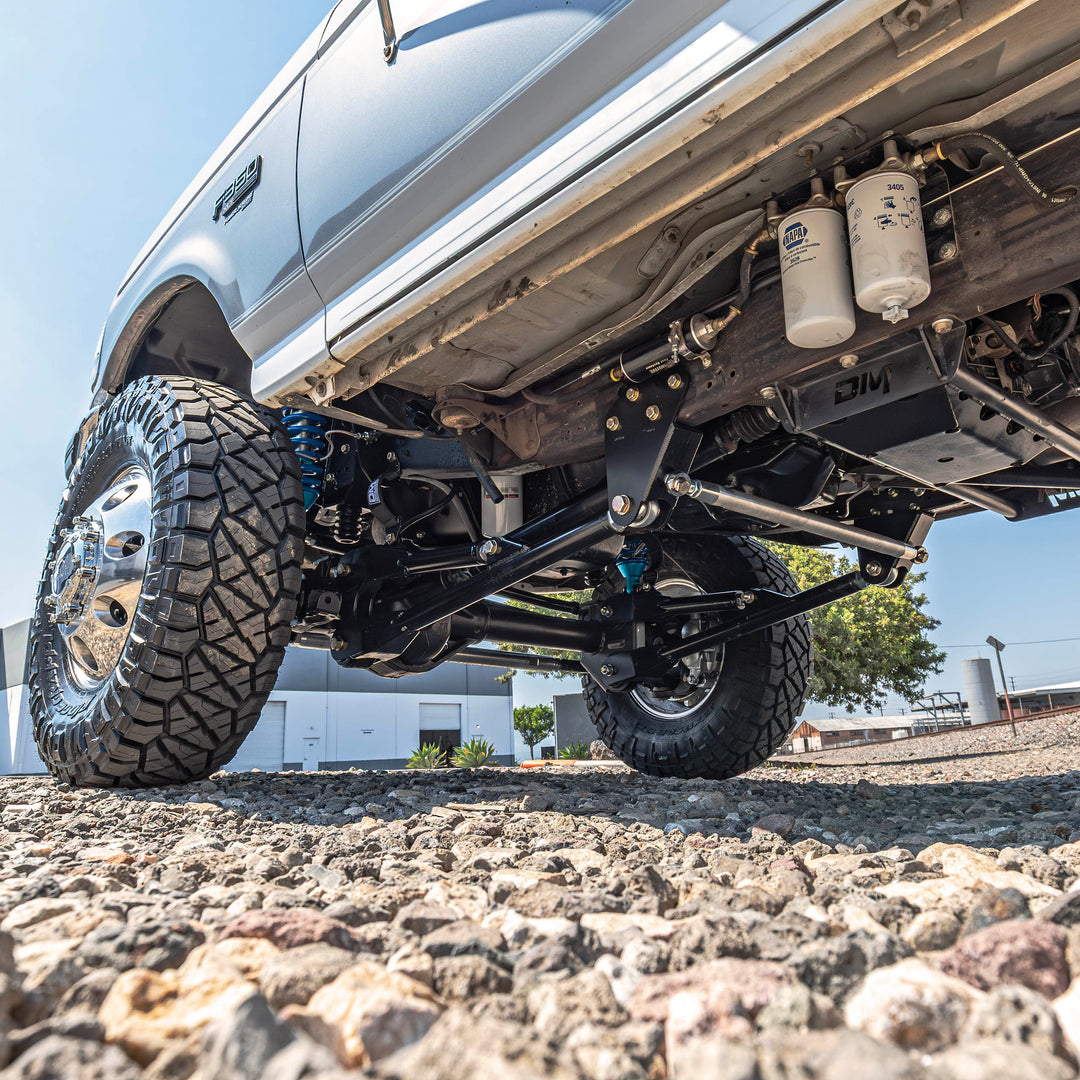

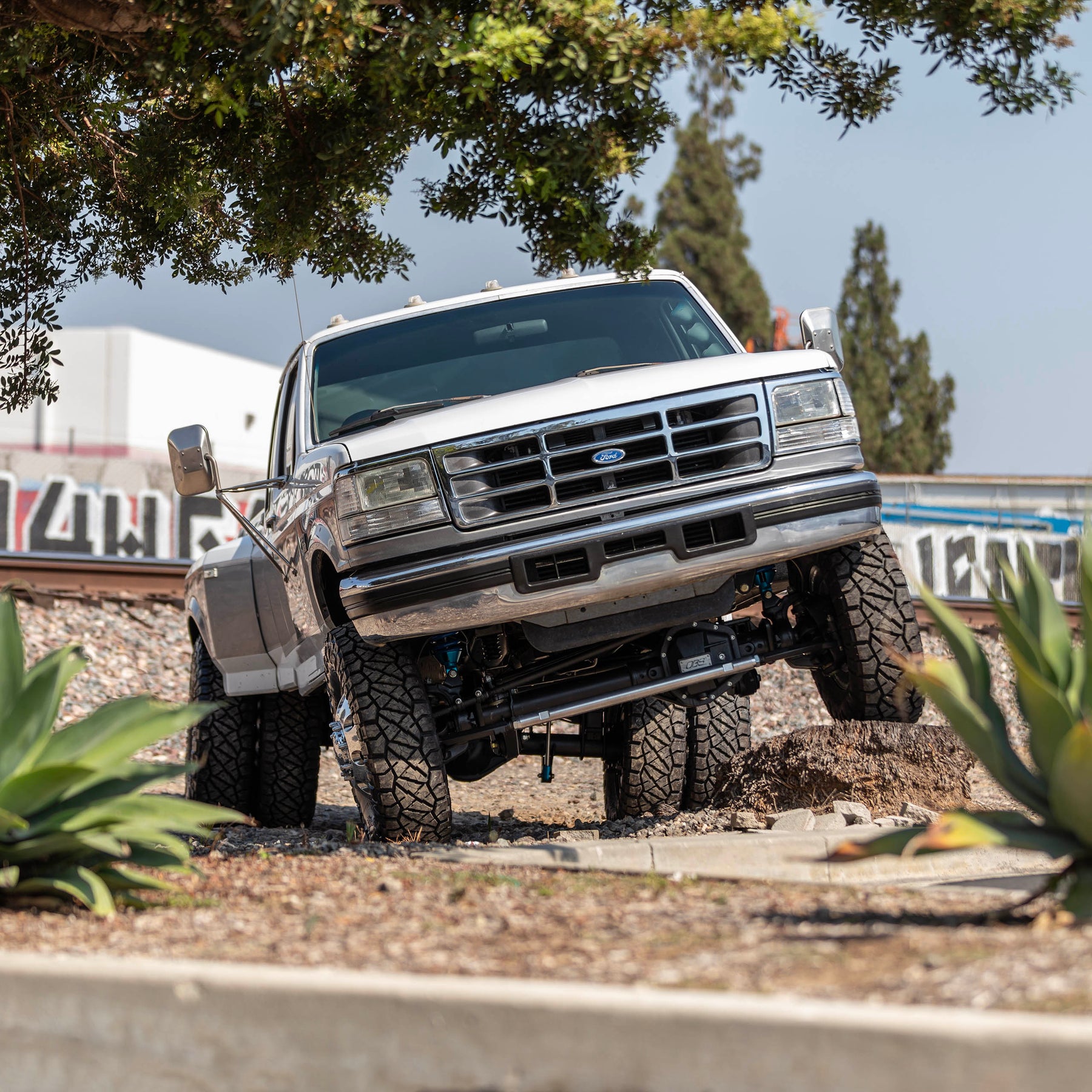

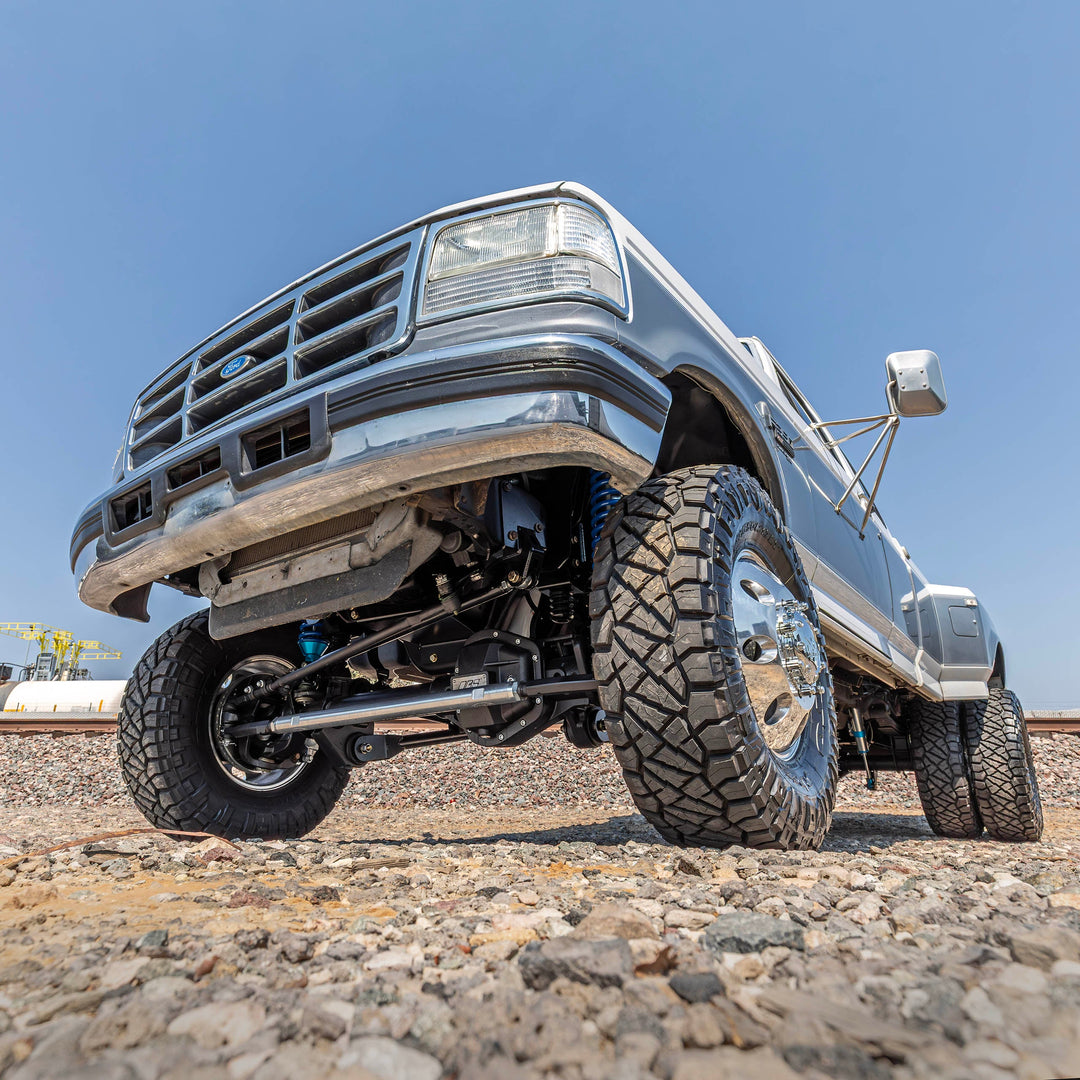

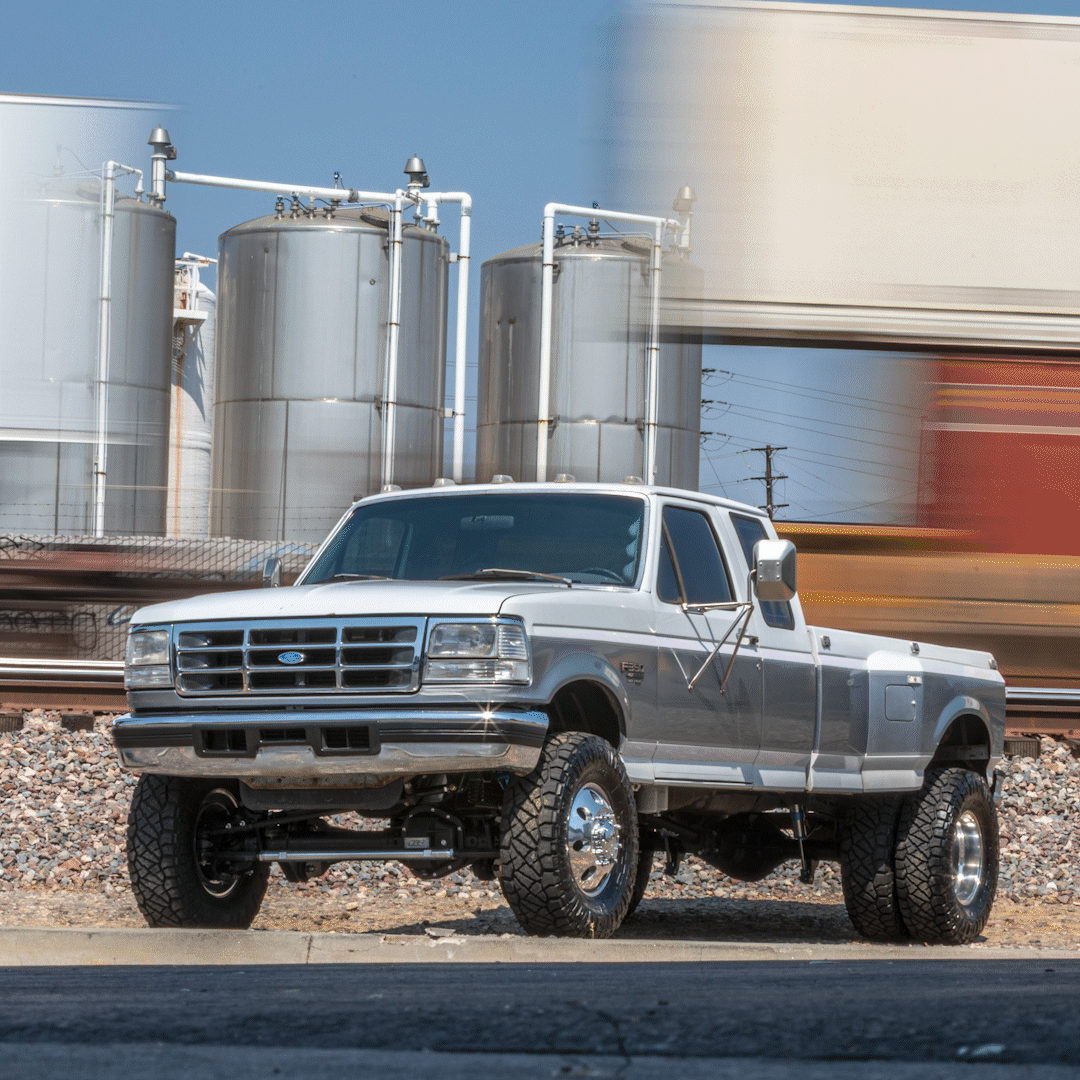

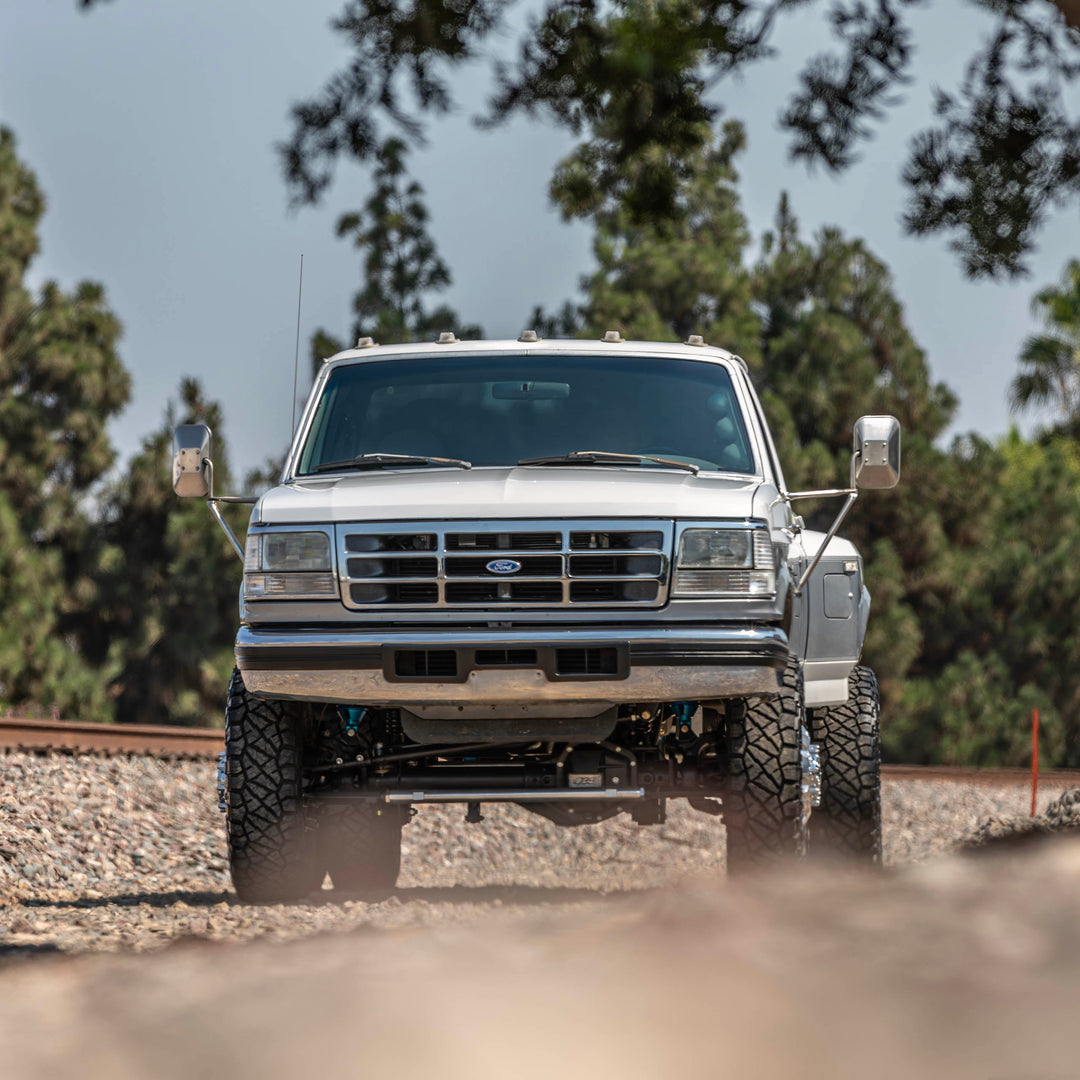

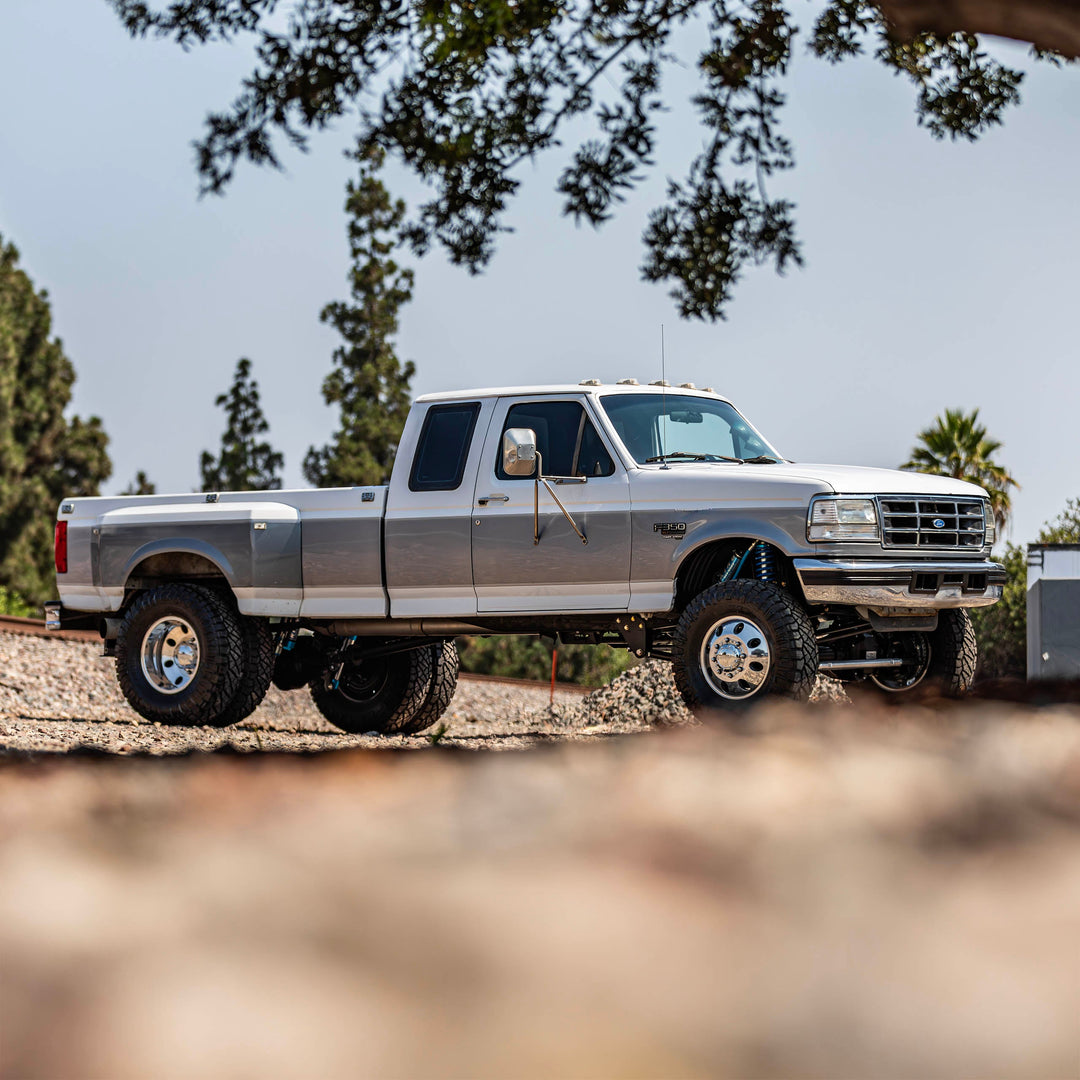

F-Series "DAILY DRIVER" "Super Duty" Conversion Kit (BOLT ON) Front Only

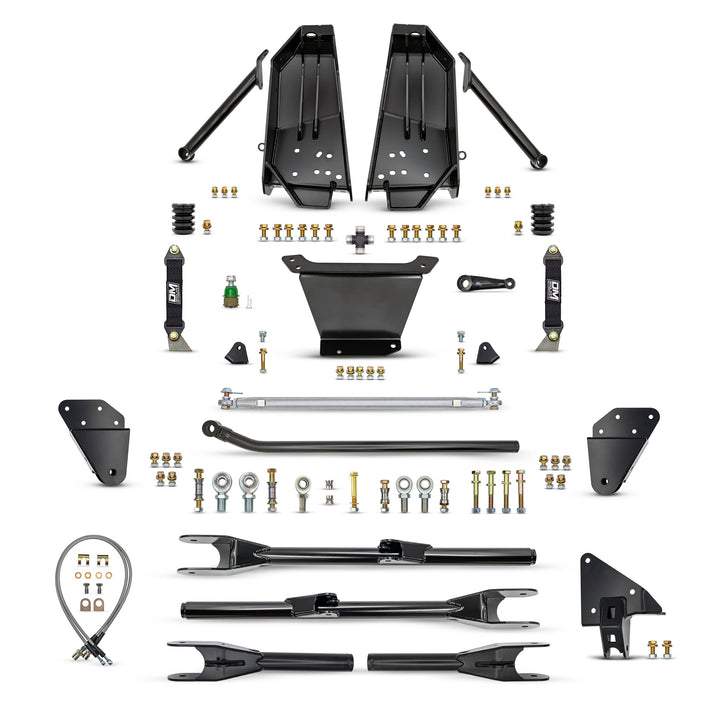

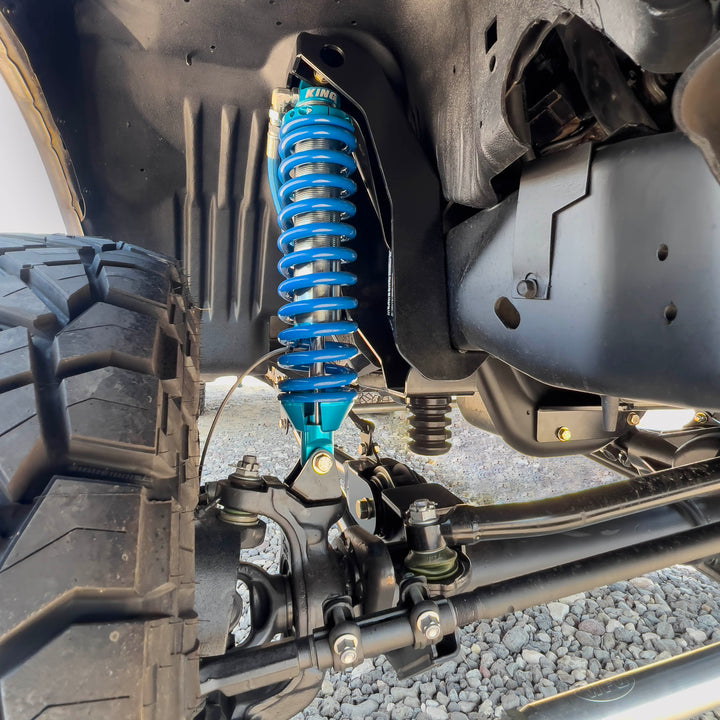

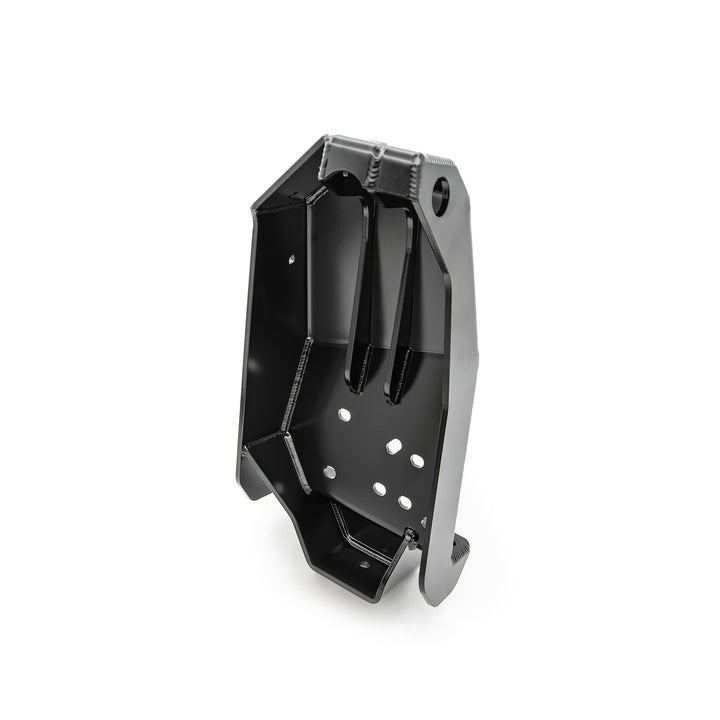

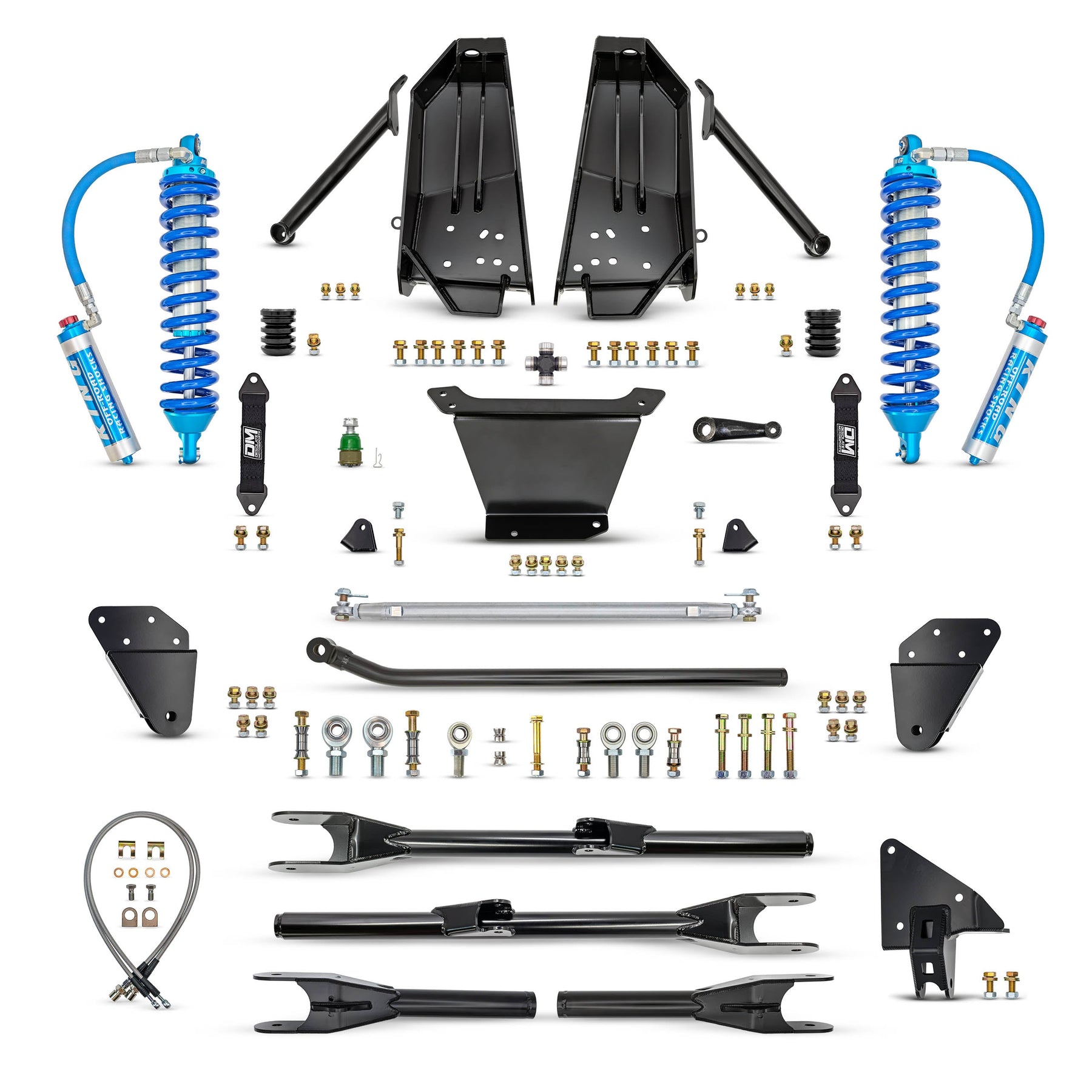

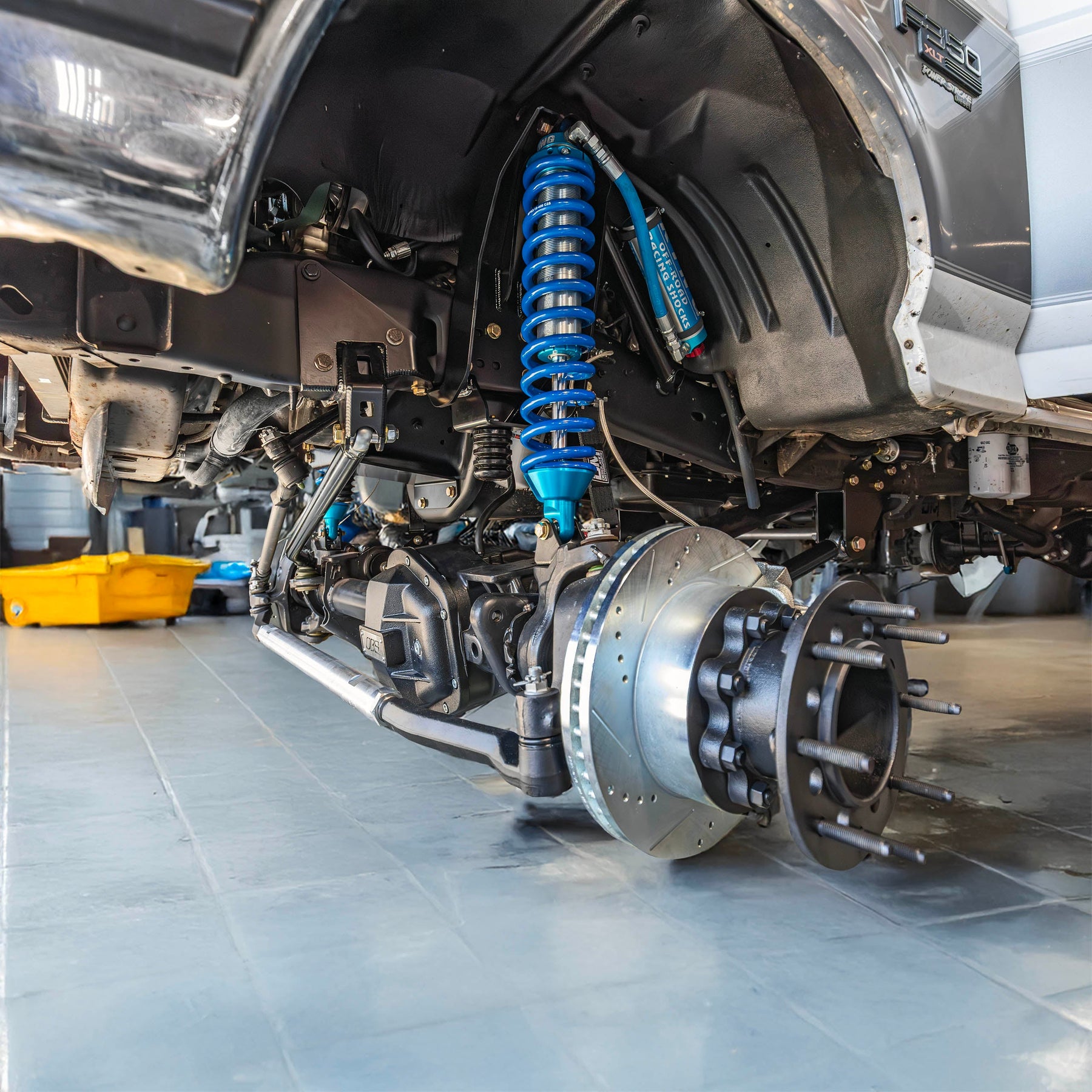

Strength and ride quality are always the number one priority, and swapping over to the popular 05-16 Ford Super Duty Dana 60 axles has never been easier with this full bolt on suspension system. The steel fabricated shock towers give you the ability to run 8" King coil-over shocks and progressive polyurethane bump stops, without having to cut into factory plastic inner fender wells. The caster adjustable links utilize large heim joint pivots and hardware providing the strength and drivability you're looking for in a real performance suspension system. All of our fabricated components are CAD Designed, laser cut, CNC bent, fixture welded and powder coated in a semi gloss black finish. This kit provides 4 to 6" of lift and clears 35'' tires, and 37's with minor trimming of front bumper.

Note:  Stock front driveshaft will need to be shortened.

FAQ: What parts do you need to supply?

• Complete 2005-2016 Ford F-250 or F-350 front axle including brakes.
• Stock steering/tie rods and drag links from same truck.
• Rear axle to match 8 lug pattern on front axle.

Features:

• 4-6" of Lift.
• Track width increased approx. 4"
• 8 Lug Wheel Pattern.
• Semi-Gloss black powder coat.
