85-97 Ford F-350 Shock Brackets

Description:

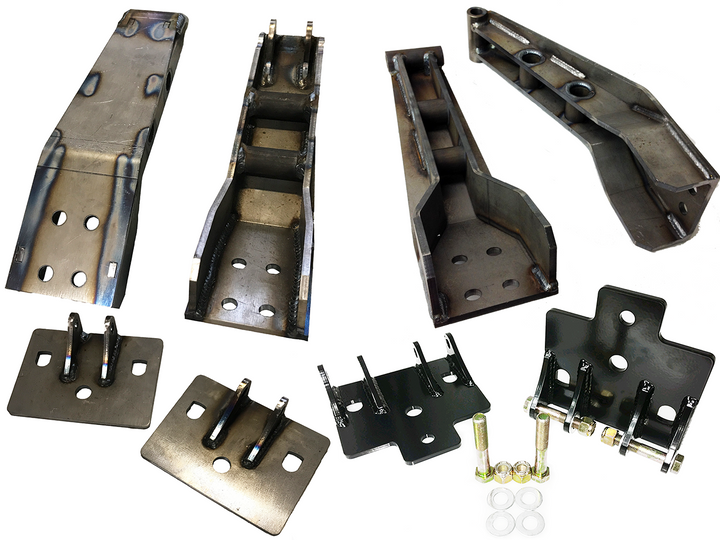

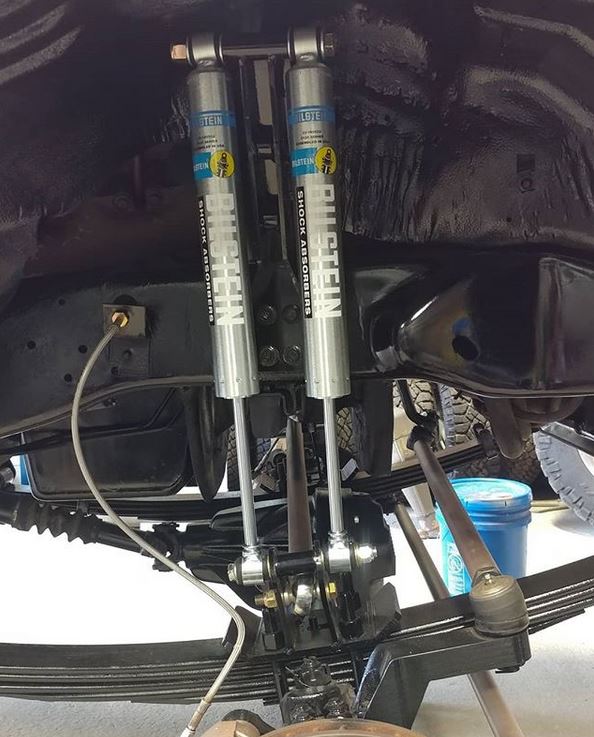

-Upper and lower shock mount brackets that allow the use of single or dual shocks on your OBS!

-Upper shock brackets can be paired with our crossover panhard conversion U-bolt plates (see picture).

Application:

-Truck: 85-97 F-250/350
-Axle: 85-97 Ford Dana 60
or
 99-04 Superduty Dana 50/60

Additional Information:

THE BOTTOM DUAL SHOCK DRIVER SIDE BRACKET EAR WILL NEED TO BE TRIMMED IF YOU ARE USING A 2 LEAF PACK TO ALLOW THE BRACKET TO SIT FLUSH ON THE LEAF SPRING.

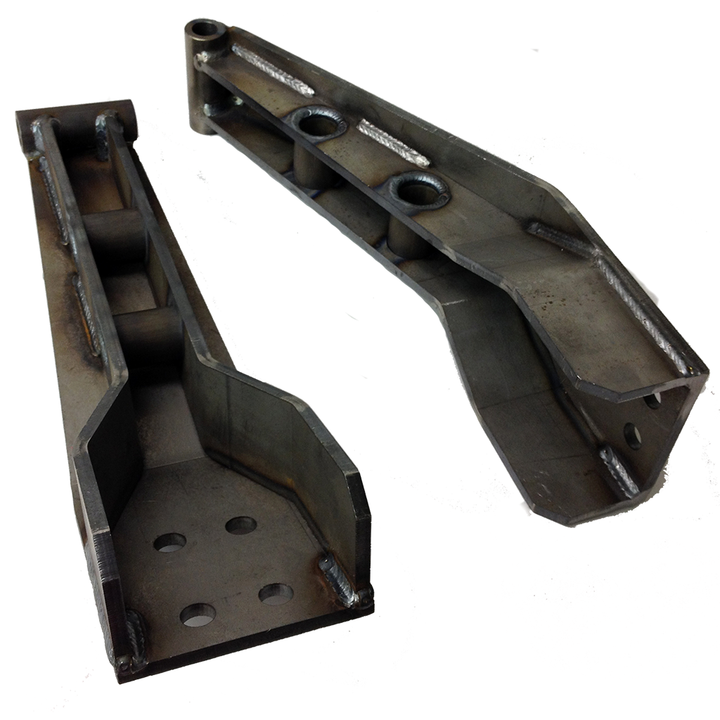

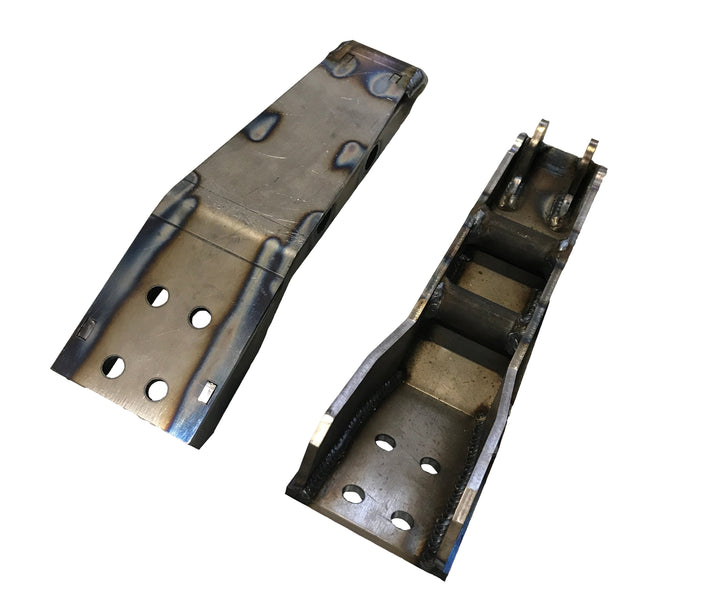

Upper Shock mounts fit the contour of the fender well.  Add 1 inch of shock height over stock. Includes hardware to install shocks

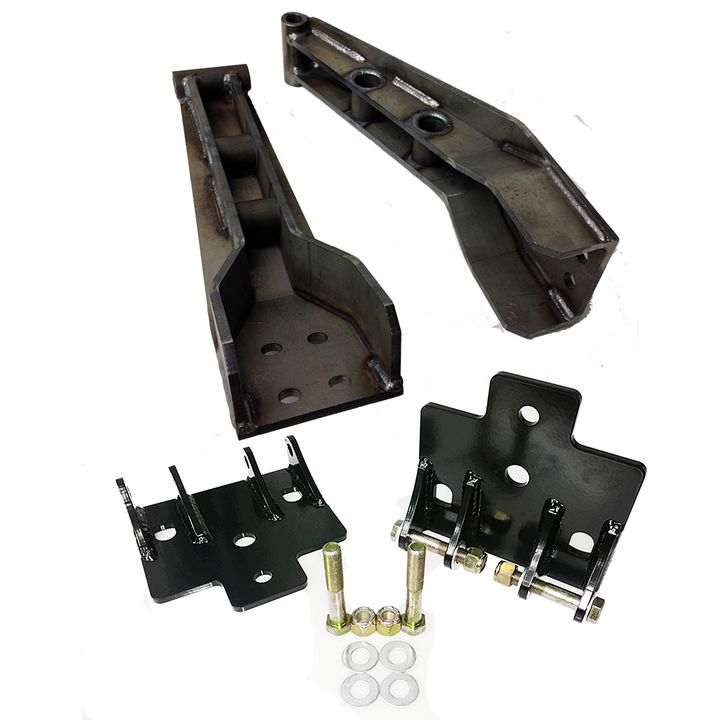

Upper Dual Shock Mounts Accept an Eb1 style 5/8ths shock eye.

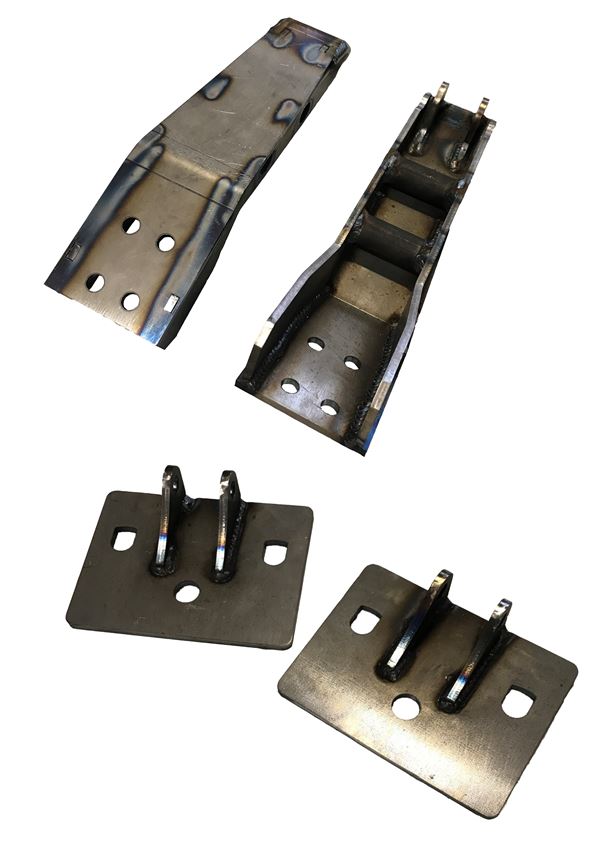

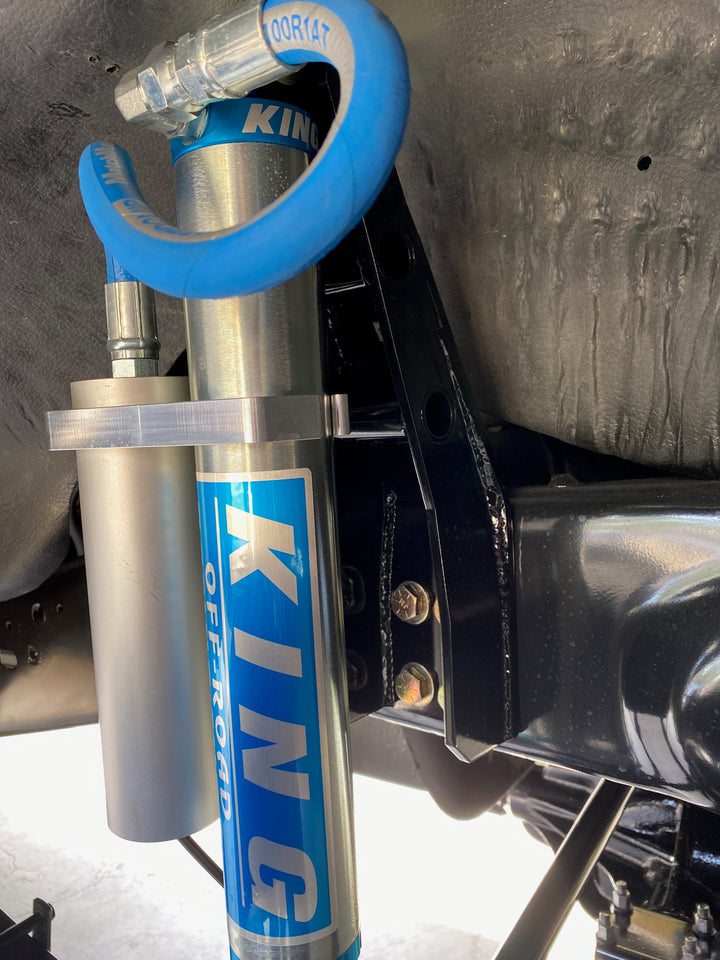

Upper Single Shock Mounts Accept 1/2" Shock eye

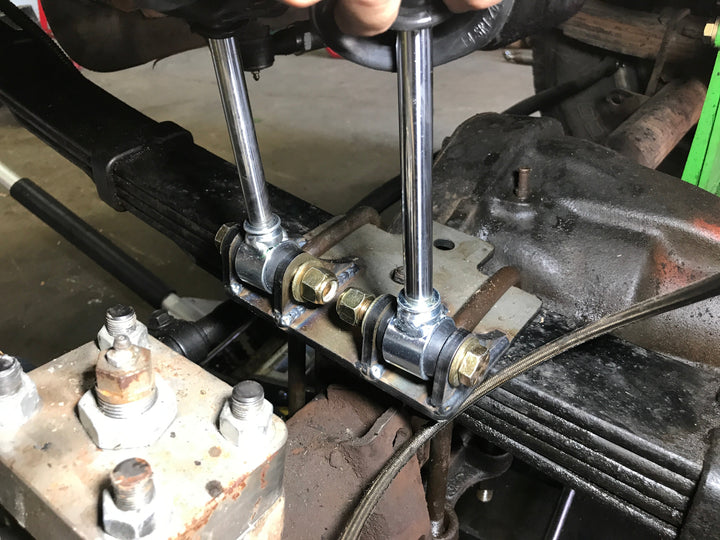

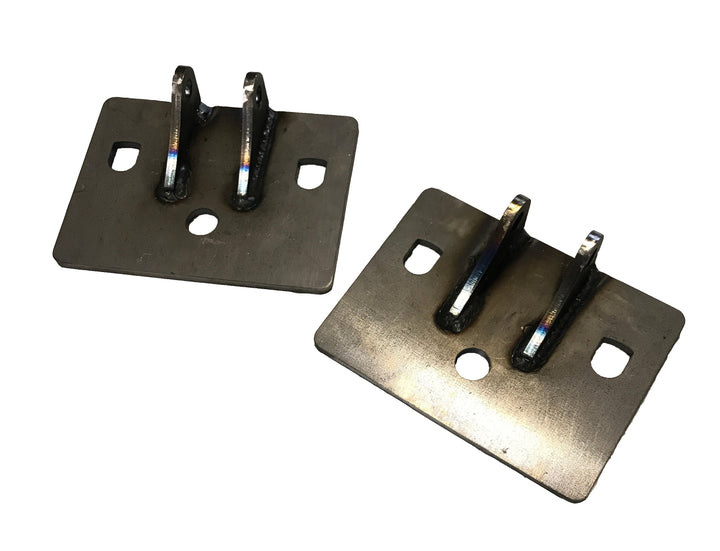

Lower brackets have 1/2" mounting bolts for the shocks.

Upper Dual Shock Mounts Fit shocks 2" or smaller in diameter.

Upper Single Shock Mounts Fit 2.5" or smaller in diameter.

Both Upper Mounts are 15" OAL

Purchase "kit" for both upper and lower shock mounts. Kit components are sold individually for customers fabricating their own companion parts.

If using this with our crossover panhard kit you will only need the upper brackets and our dual shock hardware kit.


 Installation:

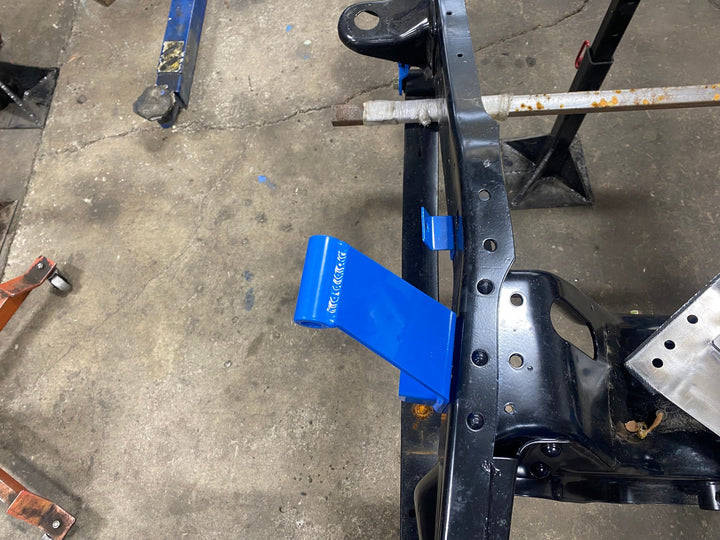

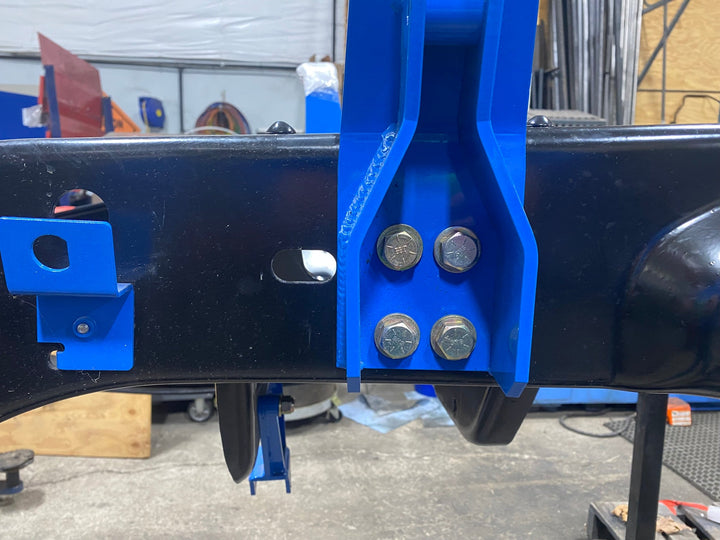

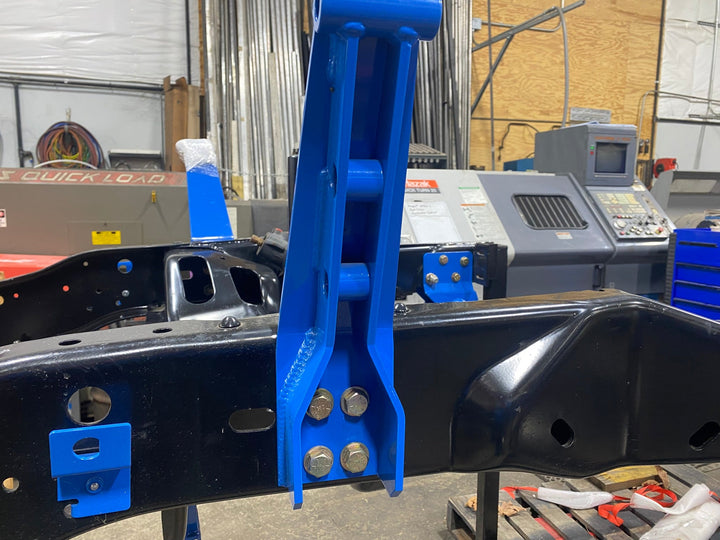

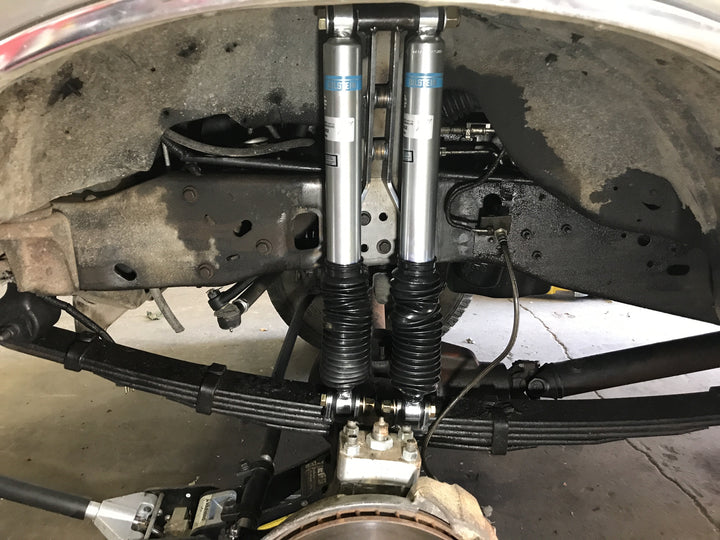

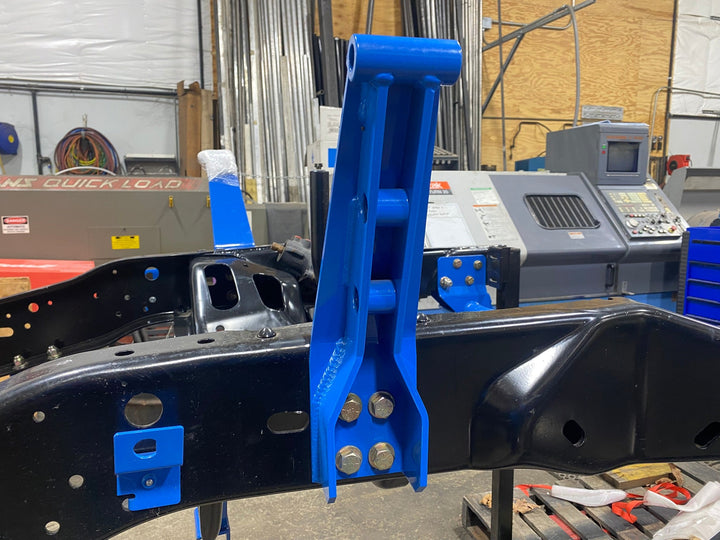

Upper brackets are direct bolt on for F-350 trucks with 4 bolt shock mounts. Can be adapted for F-250 trucks by re-drilling frame for 4 holes instead of 2.  Allows to easily run dual shocks up front with the fabricated upper and lower shock mounts.

Kits Re-Uses factory hardware to install on frame and axle.
