Name: Ford Dana 60 Front U-Bolt Flip Kit
Brand: Sky's Offroad Design
SKU: FORD-D60SPK-001-NOshockmounts
Price: 164.0 USD
Availability: InStock

$164.00

Shipping calculated at checkout.

SKY parts are built to order and may take up to 2 weeks to ship.

Shock Mount Option

No shock mounts

Add shock mounts.

Axle Year

85-97

99-04

Description:

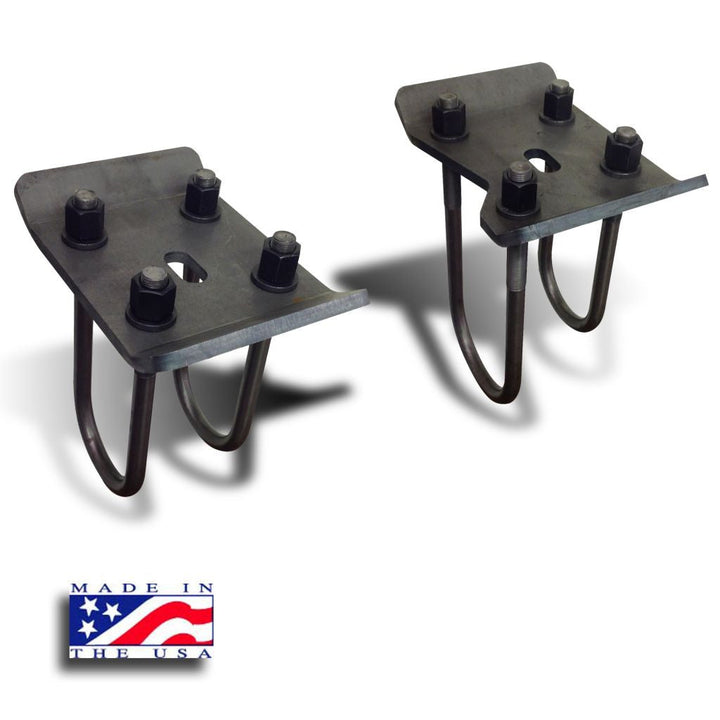

-Simple and effective Heavy Duty U-bolt and plate flip kit.

-Cleans up brackets hanging below the axle for aesthetics or keeps from catching on obstacles.

Application:

-Axle: 85-97 Ford Dana 60 or 99-04 Ford Superduty Dana 50/60

- Springs: Kit is designed around lift spring packs 3". Shorter and taller leaf packs will require special length U-bolts which we do not offer and will have to be sourced locally.

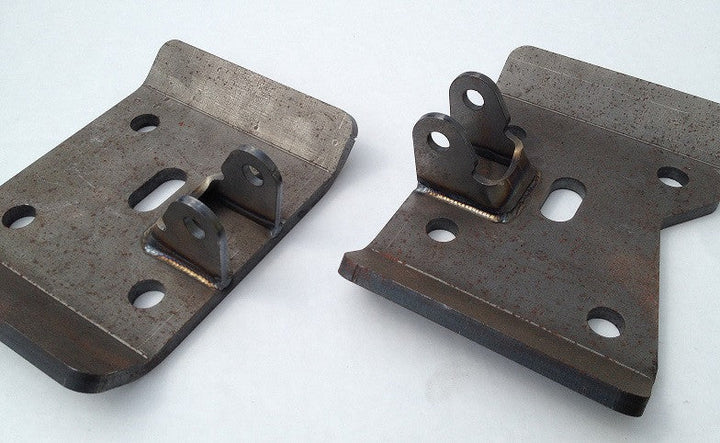

Additional Information: Shock mounts are 3/16ths formed steel, welded in place, 1/2" eye.

Installation:

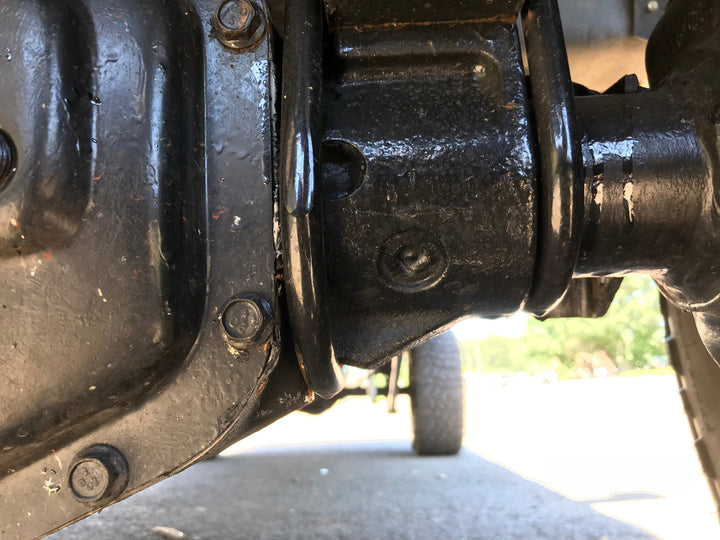

Requires notching of differential housing lower web to maintain u-bolt and cutting off the factory panhard mount.

Will need to modify the factory panhard mount if retaining the stock panhard bar.

Parts Included:

3 5/8-20-3" Round 9.5" U-bolt
1 5/8-20-4" Round 9.5" U-bolt
1 Driver Plate with Shock Mount
1 Passenger Plate with Shock Mount
8 5/8 Thick Flat Washers
8 5/8 hi-nuts
2 1/2-20x3" Bolt
2 1/2" 20 Nylock nut
4 1/2" Flat Washer
