FORD-EBL-091-27-Front-Rear.9297
**NOTE BRAKE LINES ARE TYPICALLY GREY BUT MAY BE BLACK**

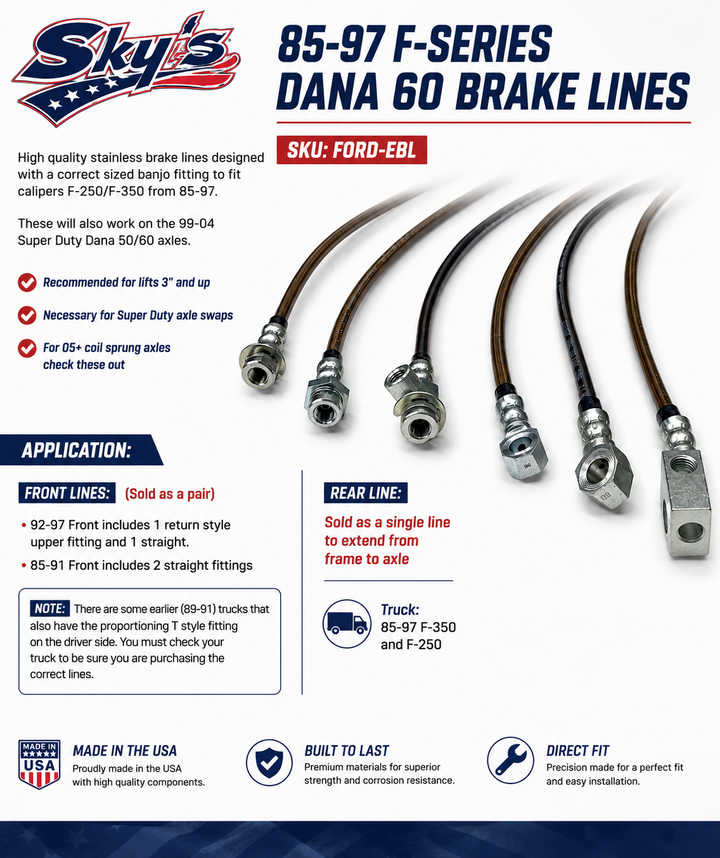

High quality stainless brake lines designed with a correct sized banjo fitting to fit calipers F-250/F-350 from 85-97. These will also work on the 99-04 Super Duty Dana 50/60 axles.
Application:
Front Lines:
(Sold as a pair)

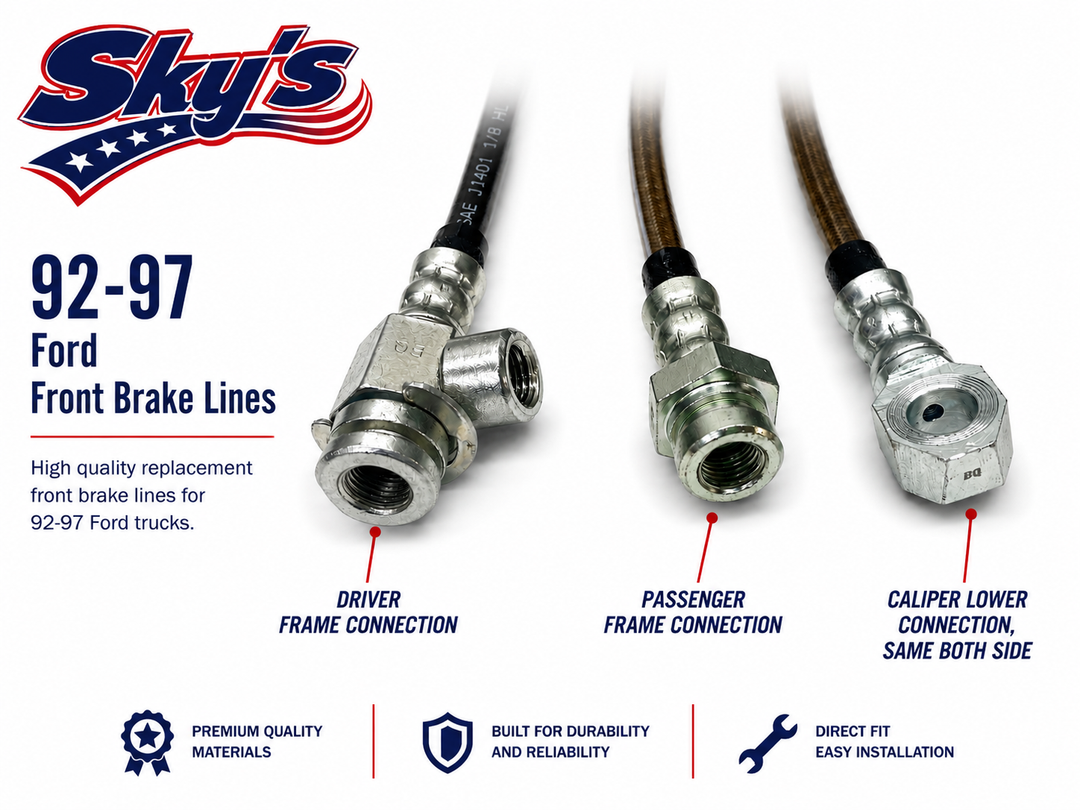

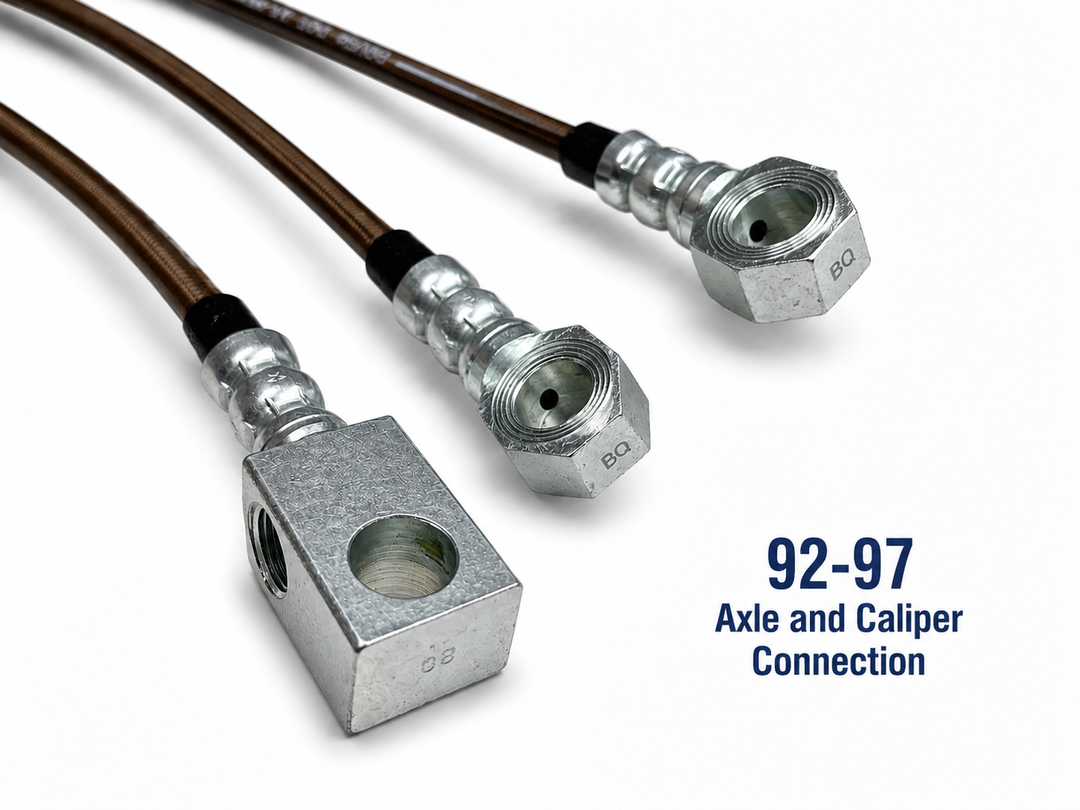

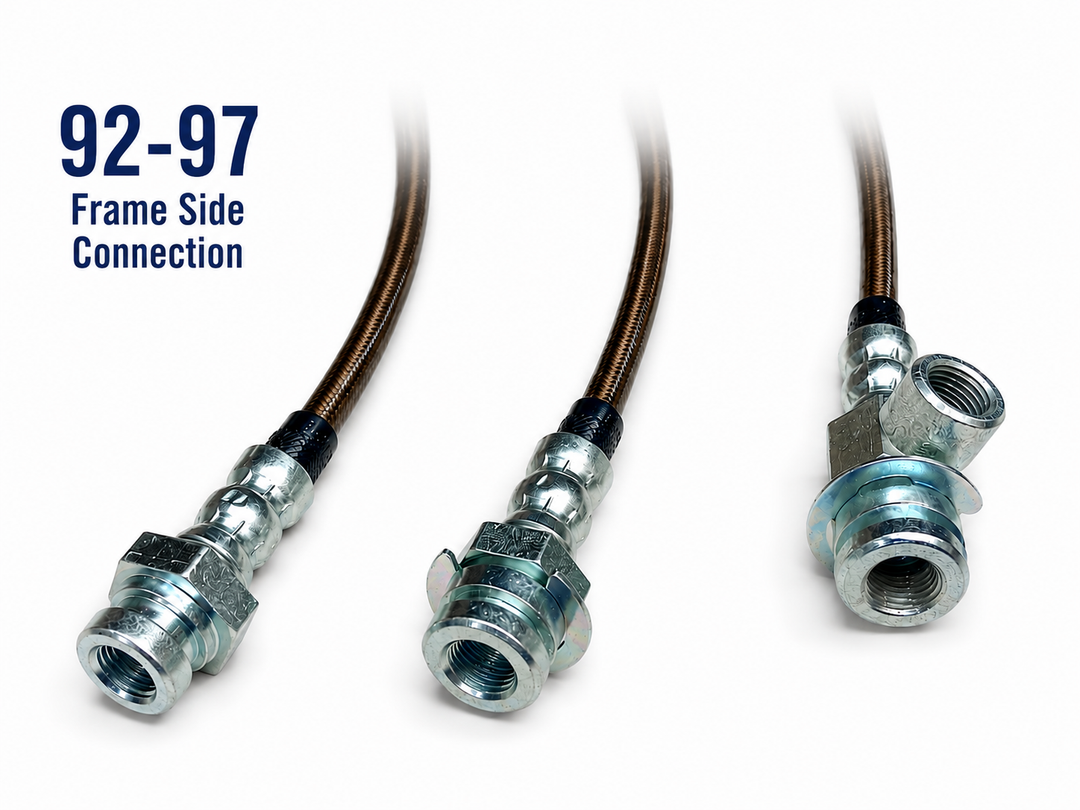

92-97 Front includes 1 return style upper fitting and 1 straight.

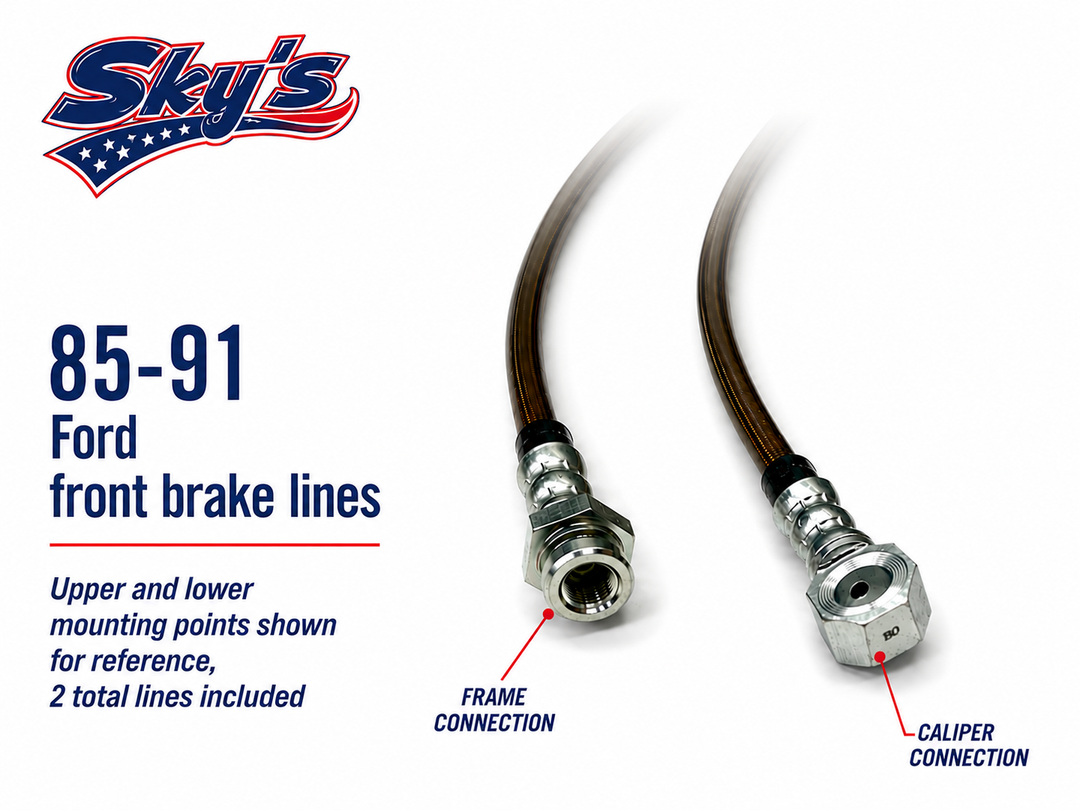

85-91 Front includes 2 straight fittings

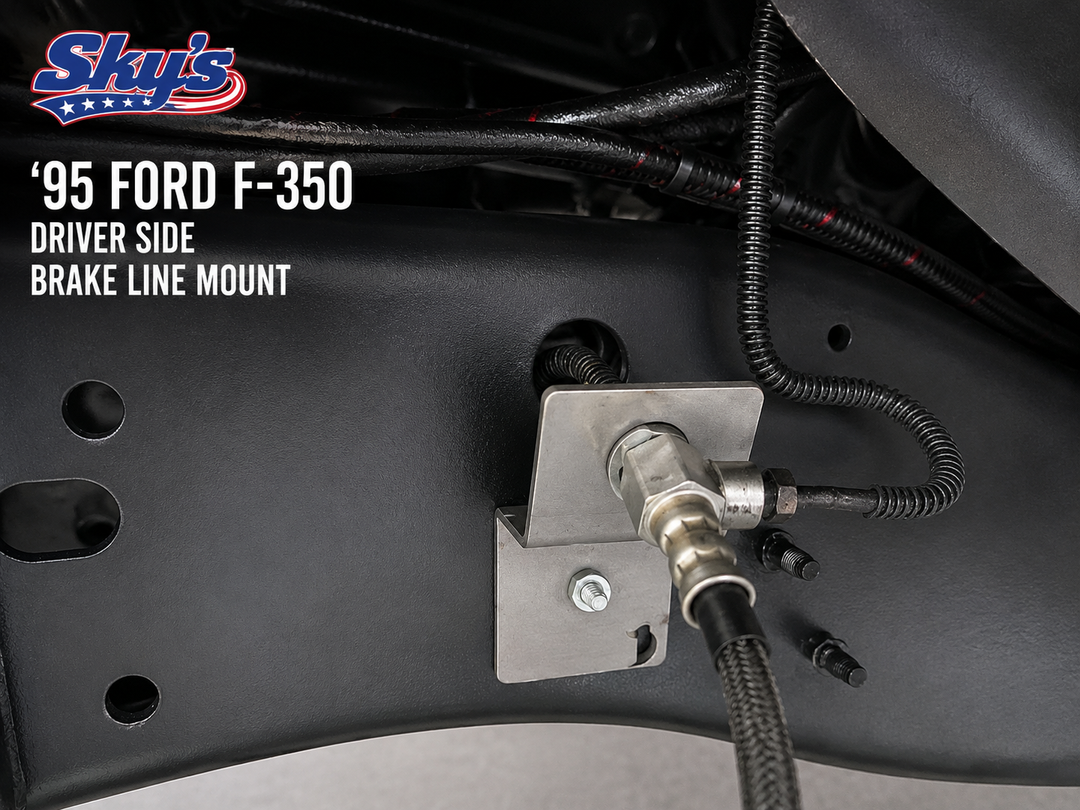

Note, there are some earlier ( 89-91) trucks that also have the proportioning T style fitting on the driver side. You must check your truck to be sure you are purchasing the correct lines.

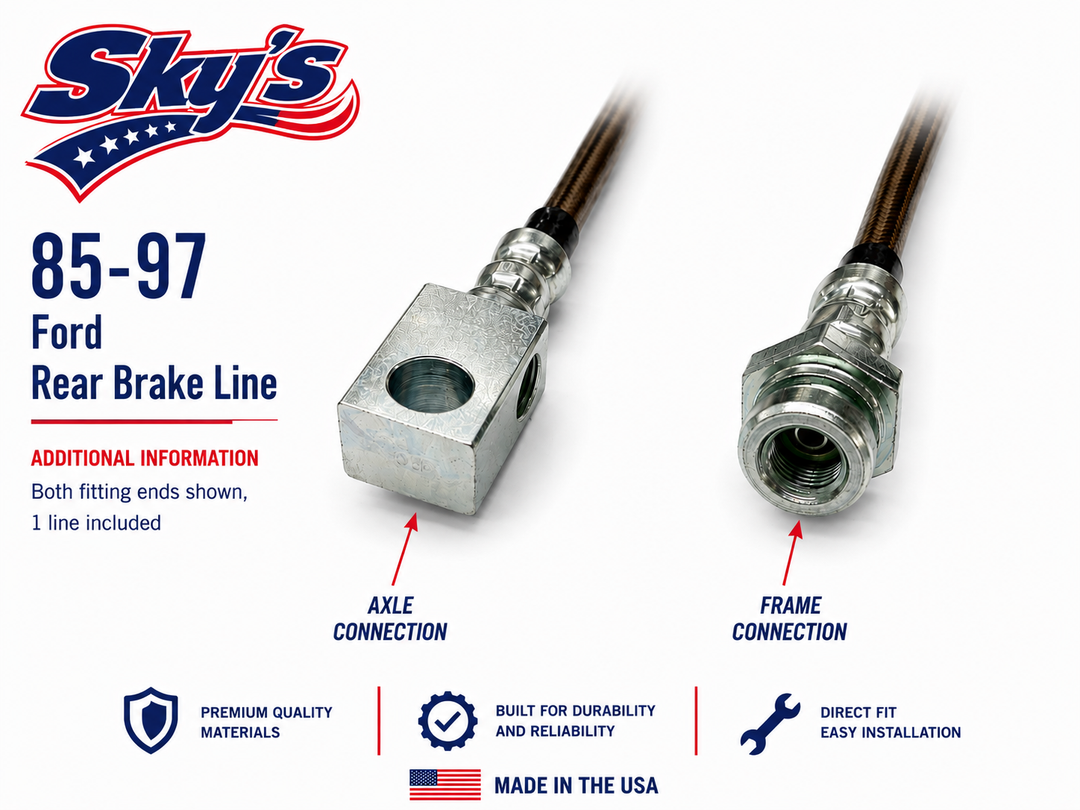

Rear Line:

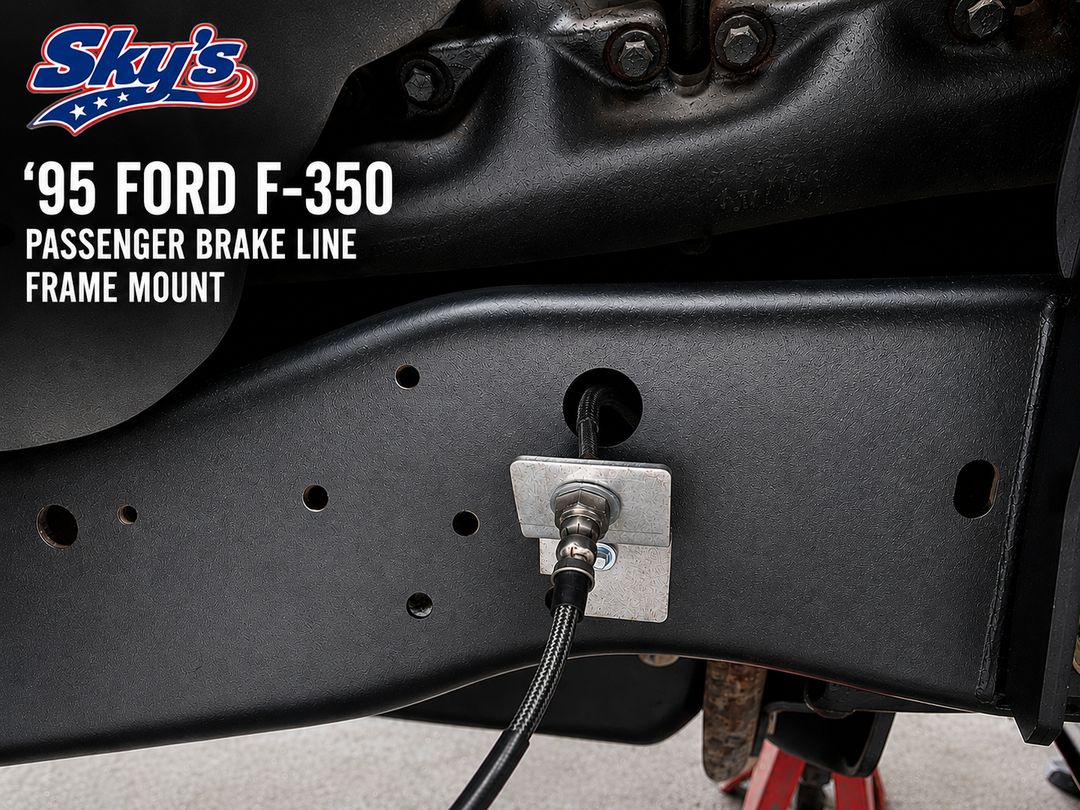

Sold as a single line to extend from frame to axle
-Truck: 85-97 F-350 and F-250
-Axle: 85-17 Ford TTB or Solid Axle
Brake line layers are Teflon-Rubber-Stainless Braid-Plastic Protective outer shell
Lines are made in the USA, DOT approved and each line is pressure tested for safety.
